6. Remove the Power / Communication Harness from the Central Support.
7. Install the new Power / Communication Harness by screwing the four (4)
screws at the Central Support.
8. Install all the connectors and wires of the Power / Communication
Harness in the respective connectors of the Portable Control Board (J1,
J6, J9, J12), Power Supply (J2), Circuit Breaker and GND stud of the
Central Support. Install the required Tie Wraps.

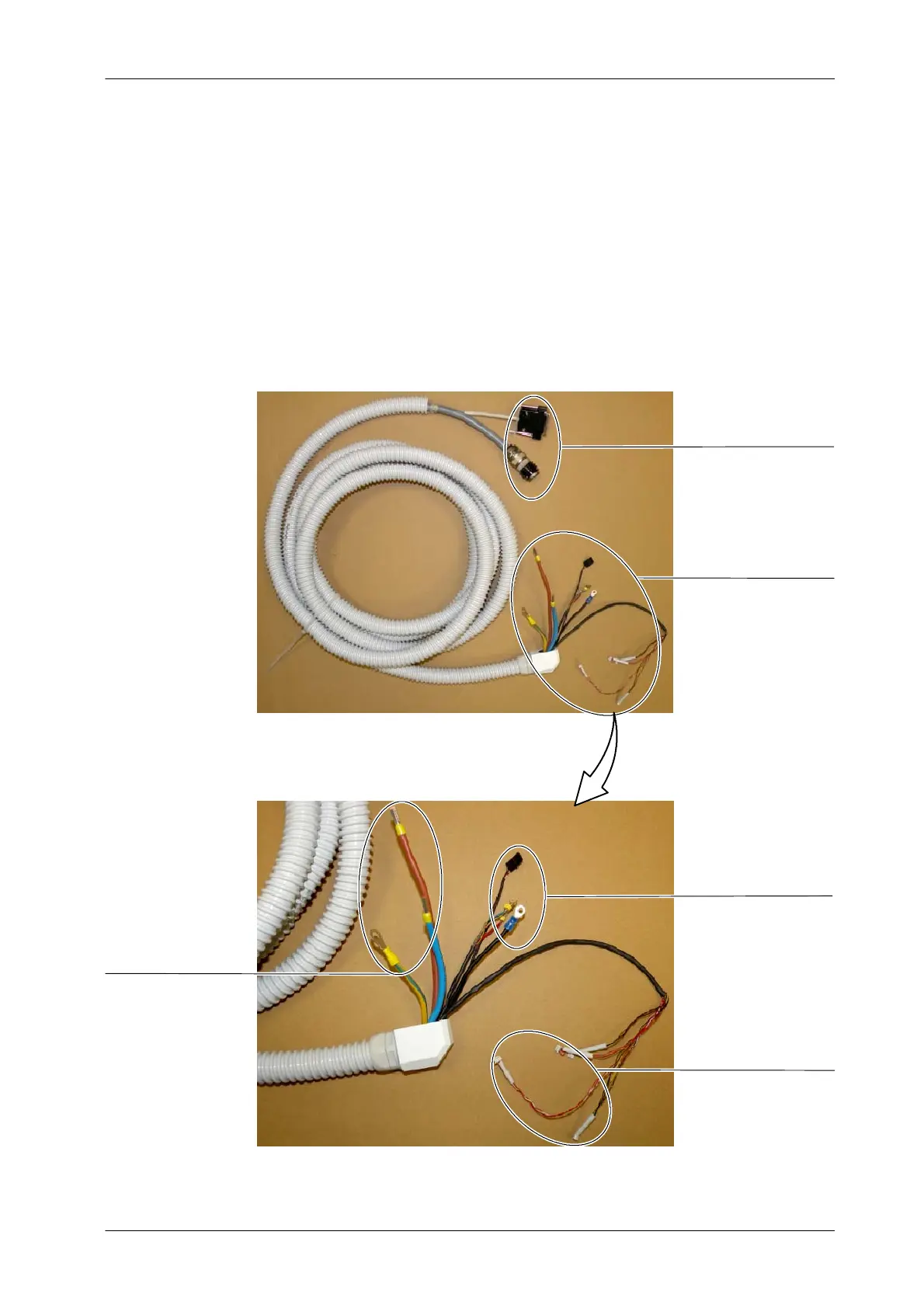

Connector Module cables
Central Support wires
Power line wires and GND
Portable Control Board wires
Communication wires
To Next Page
