5.4.22 REPLACEMENT PARTS IN THE 3P CONSOLE BOX

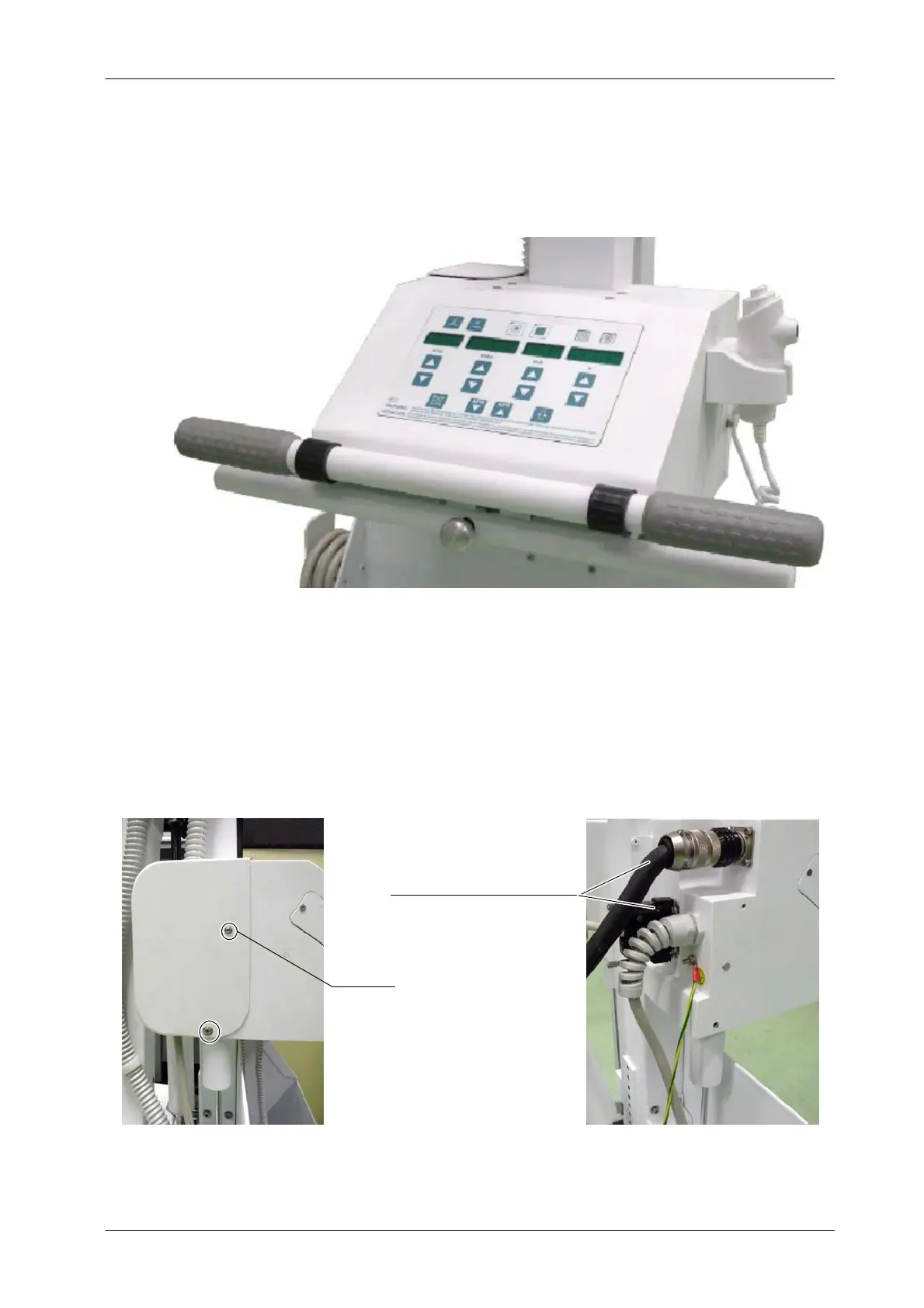

3P Console
5.4.22.1 ACCESS INSIDE THE 3P CONSOLE BOX
1. Remove the four screws from the Connector Module’s cover of the
T rolley and disconnect the two cables of the Power / Communication
Harness attached to the Power Unit.
Screws (4)
Power / Communication Harness
