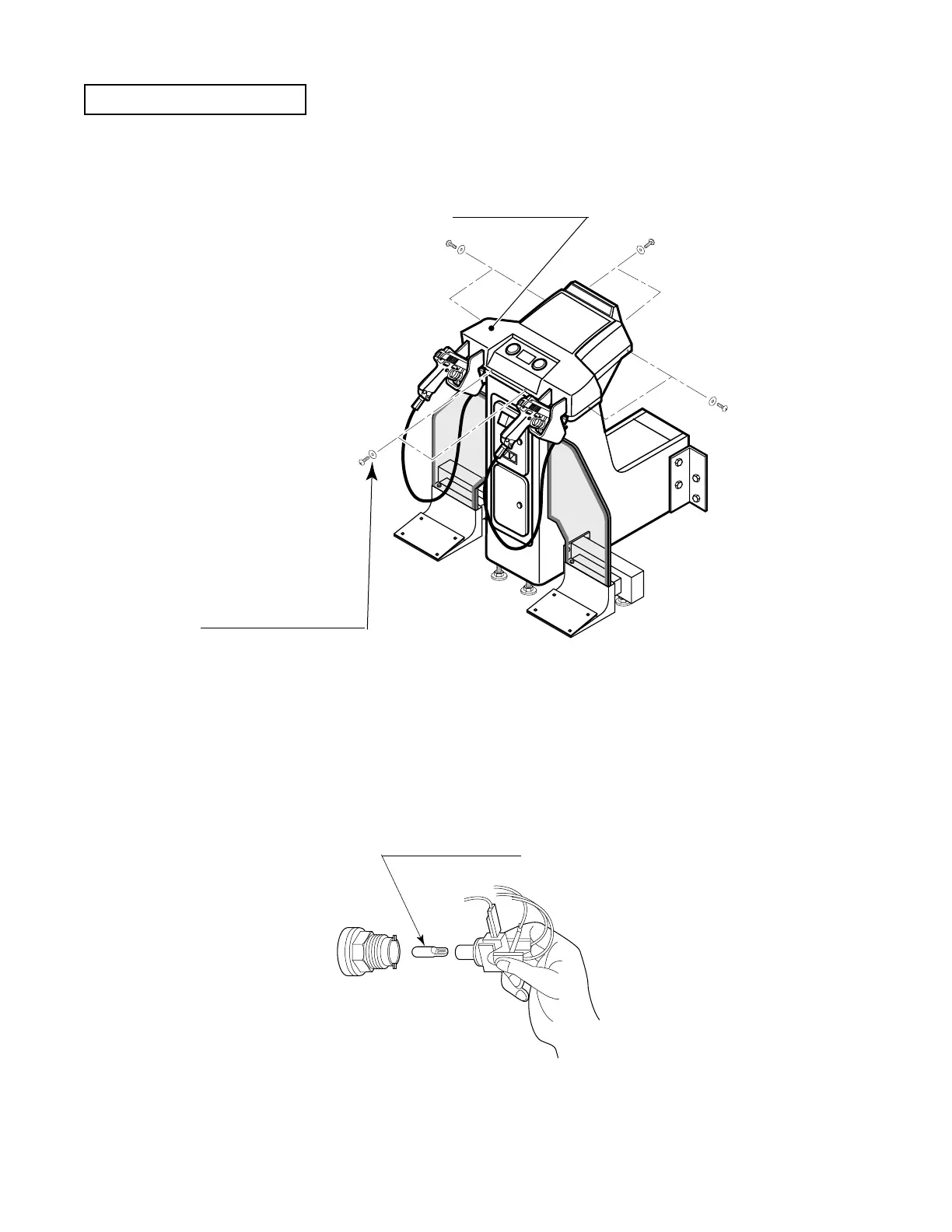

 Take out the 8 screws and remove Control Panel DX.

FIG. 13 b

FIG. 13 c

LAMP REPLACEMENT

WEDGE BULB, 6V 3W

390-5160

CONTROL PANEL DX

TRUSS SCREW (8), chrome

M4×8, at washer used.

 Hold both sides of the switch portion with ngers and pull out from the button's base portion. At

this time, be careful so as not to damage the wiring connected to the switch.

 The lamp is positioned at the end of the switch portion. Pull out the lamp straight without turning

it.
