To the Power Supply
Socket outlet
Main SW off.
MAIN SW
EARTH TERMINAL <For Taiwan>
Connect with the indoor earth termin
AC CABLE (POWER CORD)
CIRCUIT PROTECTOR
INLET
POWER SUPPLY, AND EARTH CONNECTION

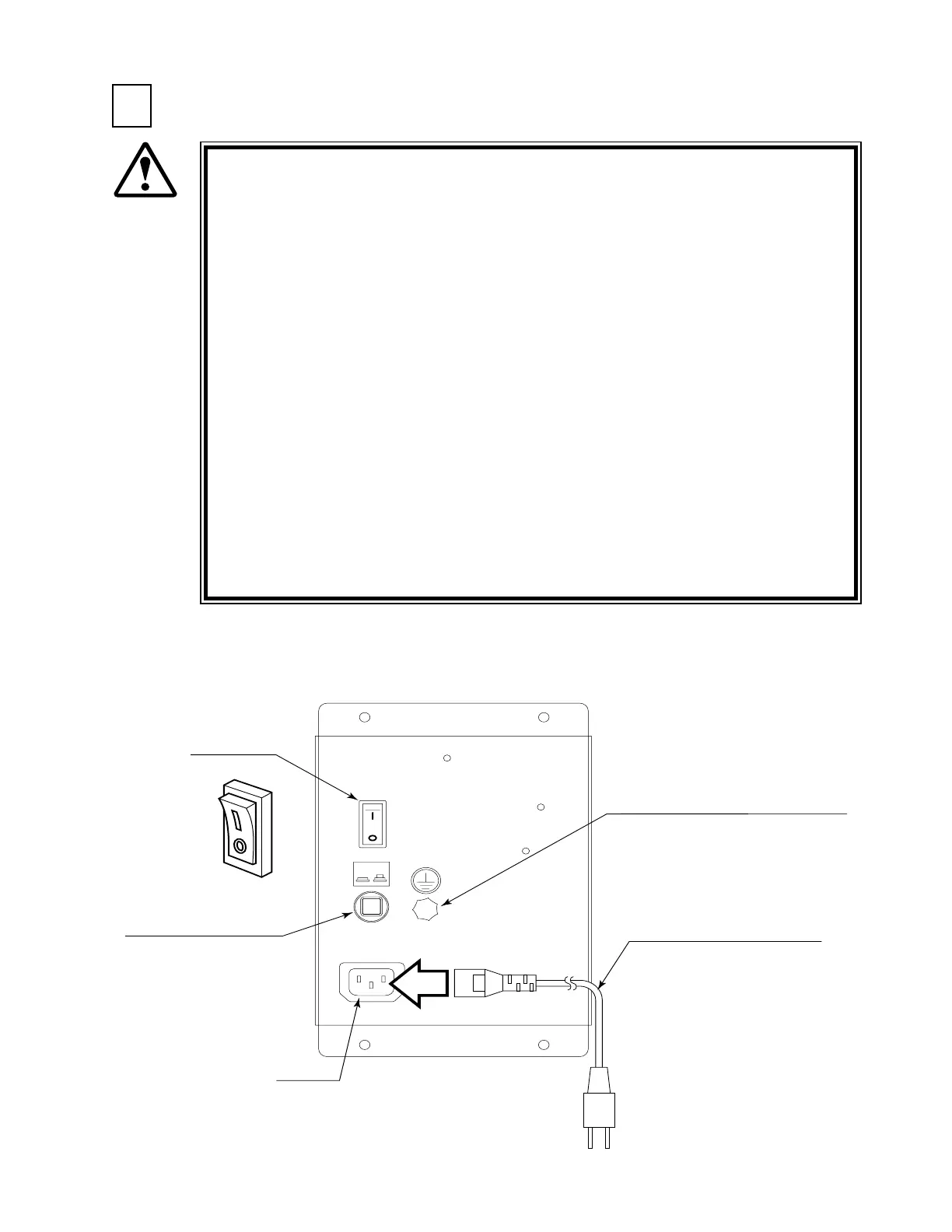

FIG. 6. 7 a AC UNIT
The AC Unit is located on one side of Cabinet. The AC Unit has Main SW, Earth Terminal and
the Inlet which connects the Power Cord.
Ensure that the Main SW is OFF.
Be sure to independently use the power supply socket outlet equipped with
an Earth Leakage Breaker. Using a power supply without an Earth Leakage
Breaker can cause a re when electric leakage occurs.
Ensure that the "accurately grounded indoor earth terminal" and the earth wire
cable are available (except in the case where a power cord plug with earth is
used). This product is equipped with the earth terminal. Connect the earth
terminal and the indoor earth terminal with the prepared cable. If the ground-
ing work is not performed appropriately, customers can be subjected to an
electric shock, and the product's functioning may not be stable.
Ensure that the power cord and earth wire are not exposed on the surface (pas-
sage, etc.). If exposed, they can be caught and are susceptible to damage. If
damaged, the cord and wire can cause electric shock and short circuit acci-
dents. Ensure that the wiring position is not in the customer's passage way or
the wiring has protective covering.
After wiring power cord on the oor, be sure to protect the power cord. Ex-
posed power cord is susceptible to damage and causes an electric shock ac-
cident.
WARNING!
Note: Image may differ from actual unit.
6
