Firmly insert the power plug into
the socket outlet.
Insert the opposite side of Power
Cord plug to the AC Unit's con-
nector ("INLET").
Perform wiring for the Power Cord
and Earth Wire. Install protective
covering for the Power Cord and
Earth Wire.
Connect one end of the earth wire to the
AC Unit earth terminal, and the other
end to the indoor earth terminal. The AC
Unit earth terminal has a Bolt and Nut
combination. Take off the Nut, pass the
end of earth wire through the Bolt, and
fasten the Nut. <For Taiwan>
*Note that the Earth Wire is incorporated
in the Power Cord for the Areas of AC
120 V (USA) and AC 220~240 V, and
therefore, this procedure is not necessary.
�WIRING COVER�
In case the Power Plug is apt to come out of place, secure
the Power Cord to the periphery of the AC Unit with the
Cord Clamp (an accessory).

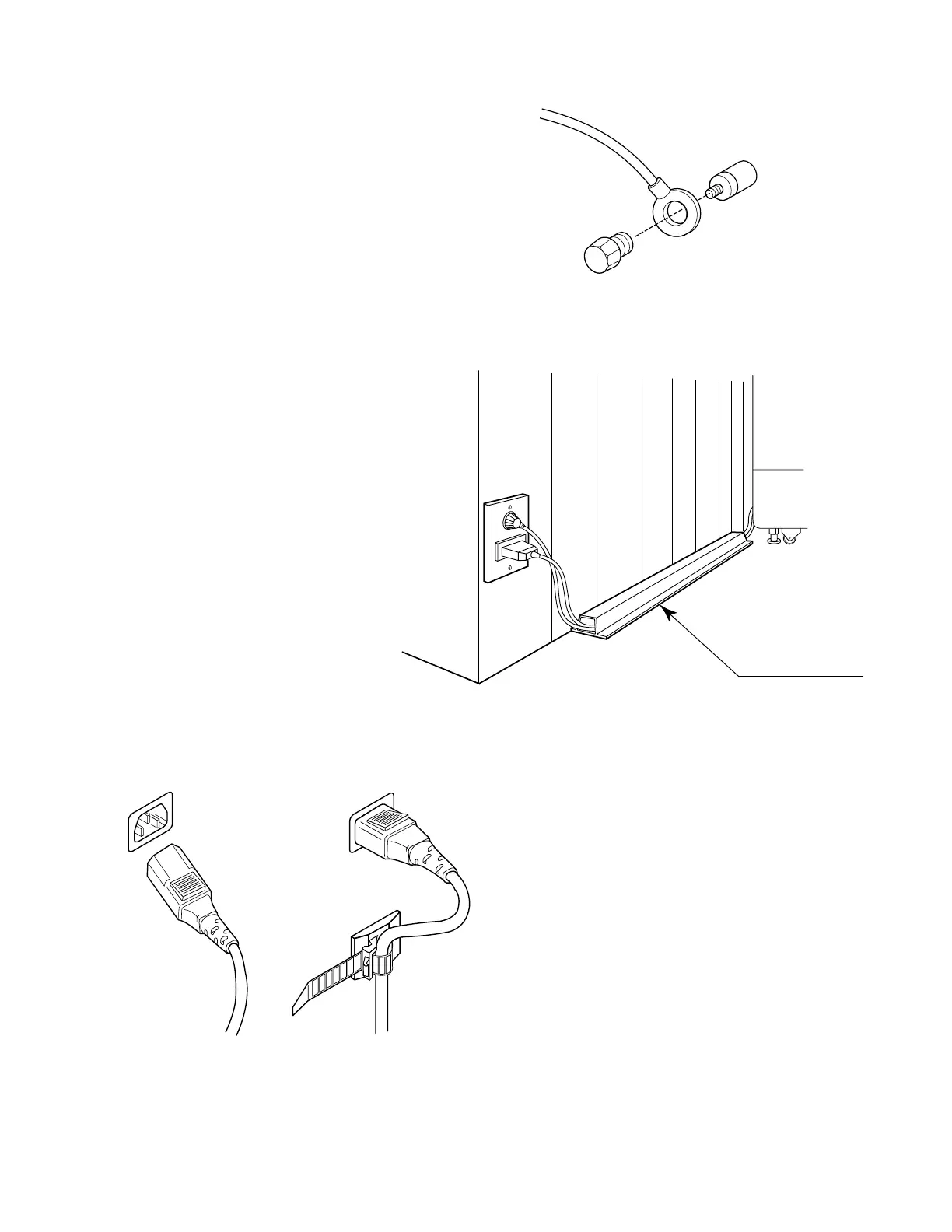

FIG. 6. 7 d HOW TO USE THE CORD CLAMP
FIG. 6. 7 c Connecting Power Cord and Earth Wire
Connect the Earth Wire
to the Earth Terminal.
FIG. 6. 7 b *Earth Wire Connection
