Breaker Monitor

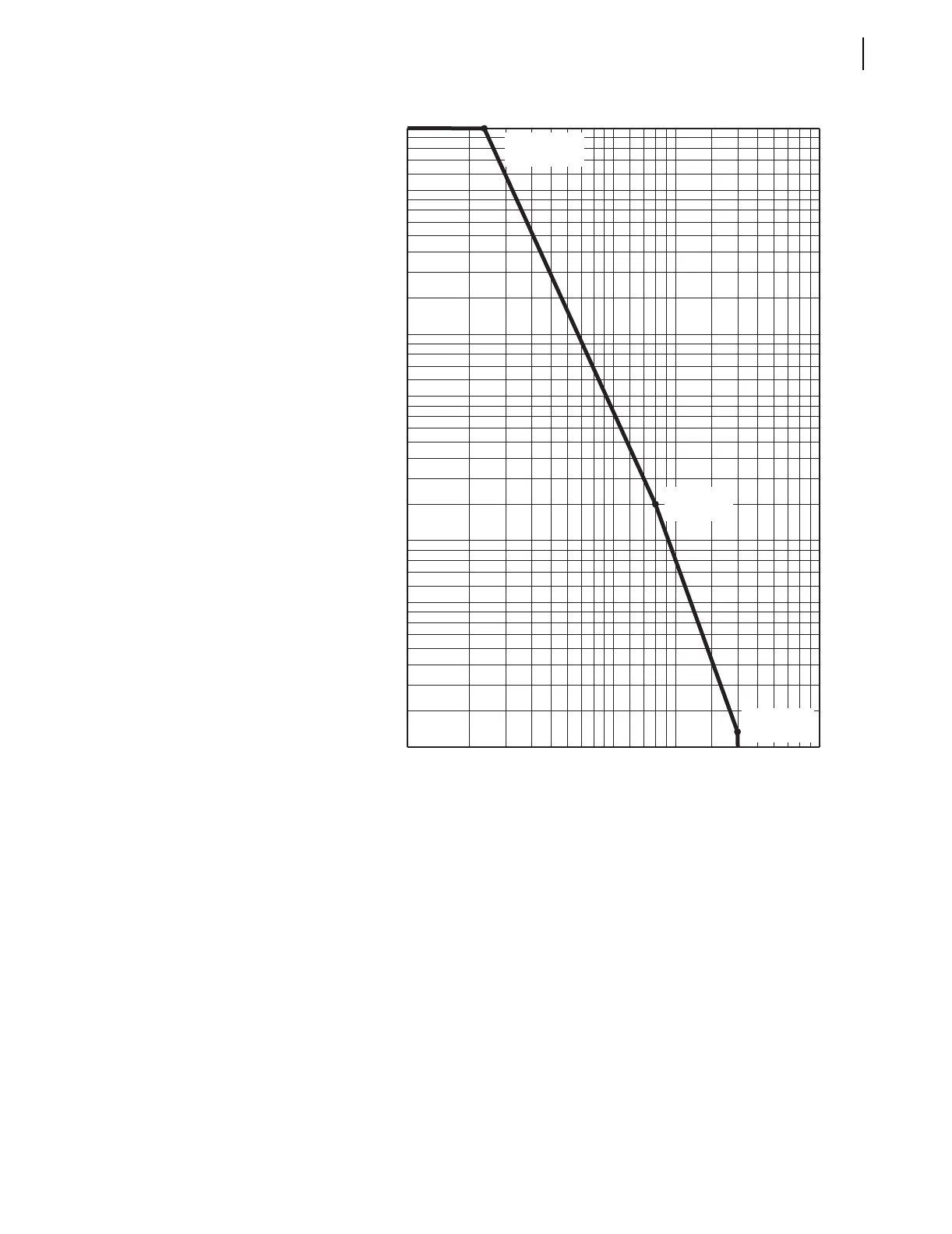

Figure 8.2 SEL-351S Breaker Maintenance Curve for a 25 kV Circuit
Breaker
In Figure 8.2, note that the breaker maintenance curve levels off horizontally
above set point KASP1, COSP1. This is the close/open operation limit of the
circuit breaker (COSP1 = 10000), regardless of interrupted current value.
Also, note that the breaker maintenance curve falls vertically below set point
KASP3, COSP3. This is the maximum interrupted current limit of the circuit
breaker (KASP3 = 20.0 kA). If the interrupted current is greater than setting
KASP3, the interrupted current is accumulated as a current value equal to
setting KASP3.
