9.21
Date Code 20080103 Instruction Manual SEL-351S Relay
Setting the Relay
Time-Overcurrent Curves

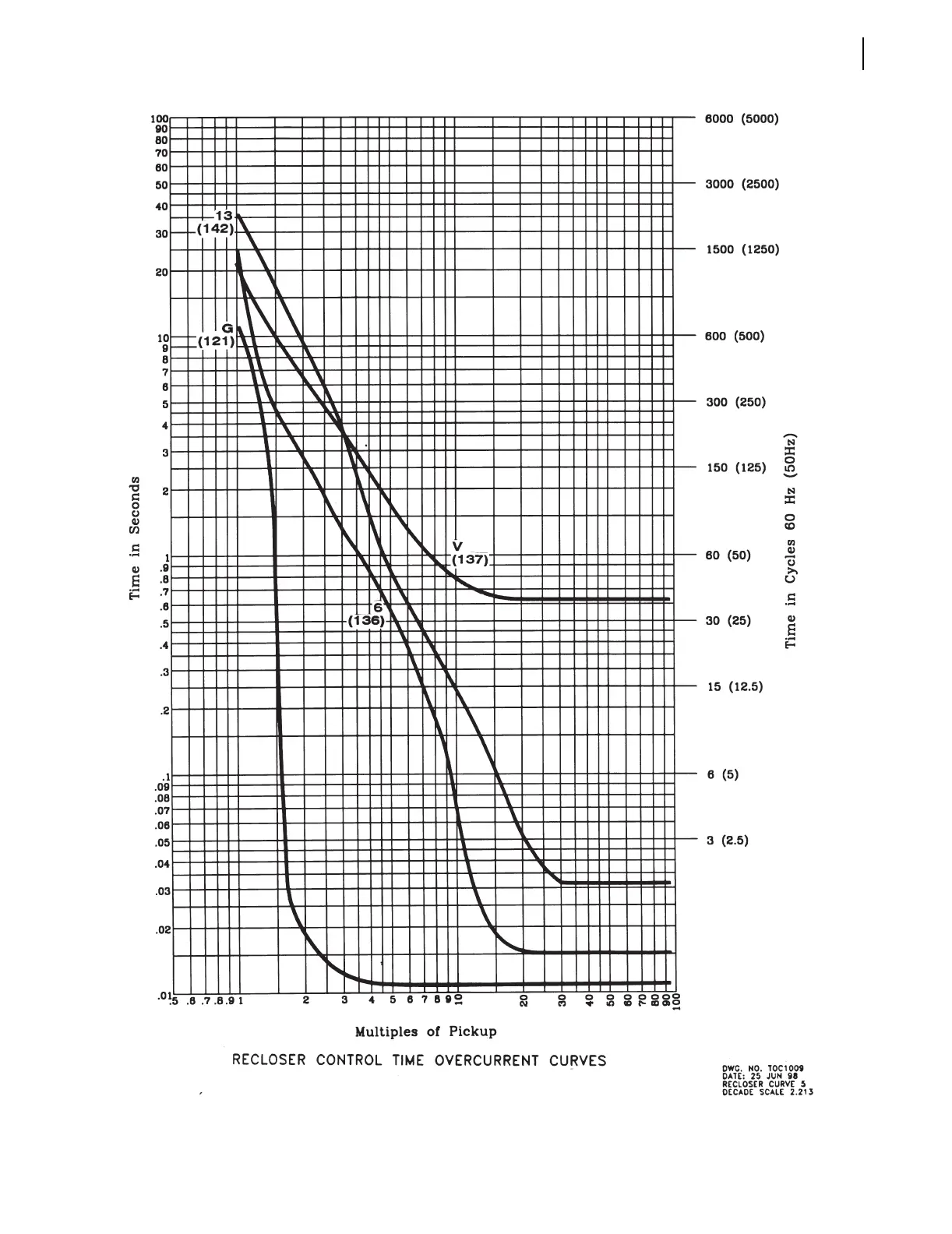

Figure 9.15 Recloser Control Response Curves G, V, 6, and 13
