Sel SEL-351S - Figure 2.34 Jumper, Connector, and Major Component Locations on the SEL-351 Sx1 Extra

2.43
Date Code 20080103 Instruction Manual SEL-351S Relay
Installation
Circuit Board Connections

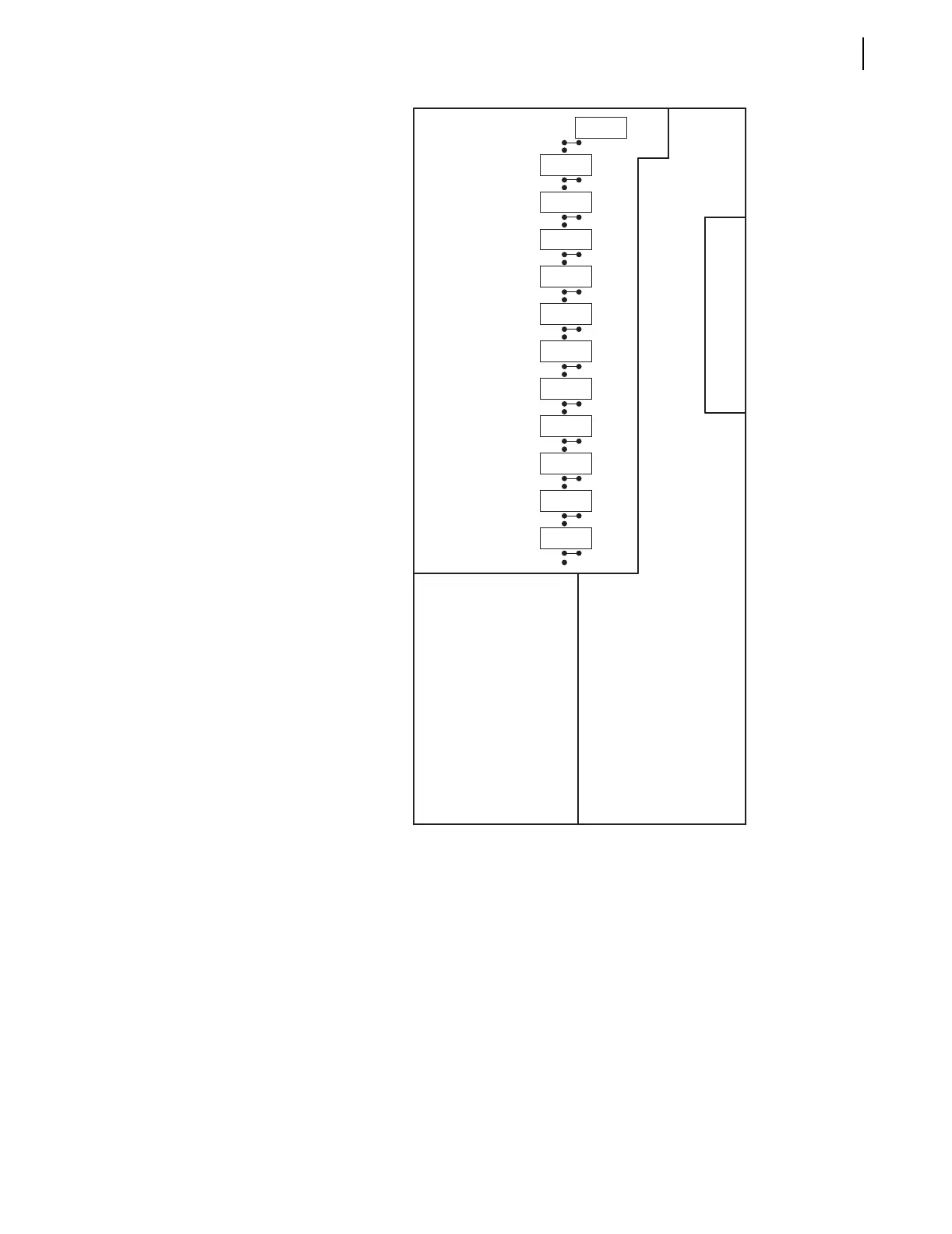

Figure 2.34 Jumper, Connector, and Major Component Locations on the
SEL-351Sx1 Extra I/O Board (Screw Terminal Block Version)
Output Contacts
Power- I/O Connector
OptoIsolated Inputs
OUT212
JMP17
A
B
OUT211
JMP18
A
B
OUT210
JMP19
A
B
OUT209
JMP20
A
B
OUT208
JMP21
A
B
OUT207
JMP22
A
B
OUT206
JMP23
A
B
OUT205
JMP24
A
B
OUT204
JMP25
A
B
OUT203
JMP26
A
B
OUT202
JMP27
A
B
OUT201
JMP28
A
B
