2.13
Date Code 20080103 Instruction Manual SEL-351S Relay
Installation
User-Configurable Label Option for the Front Panel
Rear-Panel Labeling
for Breaker Status
LEDs
On models with auxiliary trip/close pushbuttons, the front-panel breaker LED
default labeling matches the rear-panel labeling. Although the front-panel
breaker LED default labeling is configurable, the rear-panel labeling is not
configurable. Remember that if the front-panel breaker LED CLOSED and OPEN
labeling is changed, the front-panel breaker labeling will no longer match the
rear-panel breaker labeling. See Figure 2.11 to view the front- and rear-panel
breaker default labels.
On models with auxiliary trip/close
pushbuttons, the front-panel breaker
LED default labeling matches the
rear-panel labeling. If the front-panel
breaker LED CLOSED and OPEN labeling
is changed, the front-panel breaker
labeling will no longer match the
rear-panel breaker labeling.
!
CAUTION

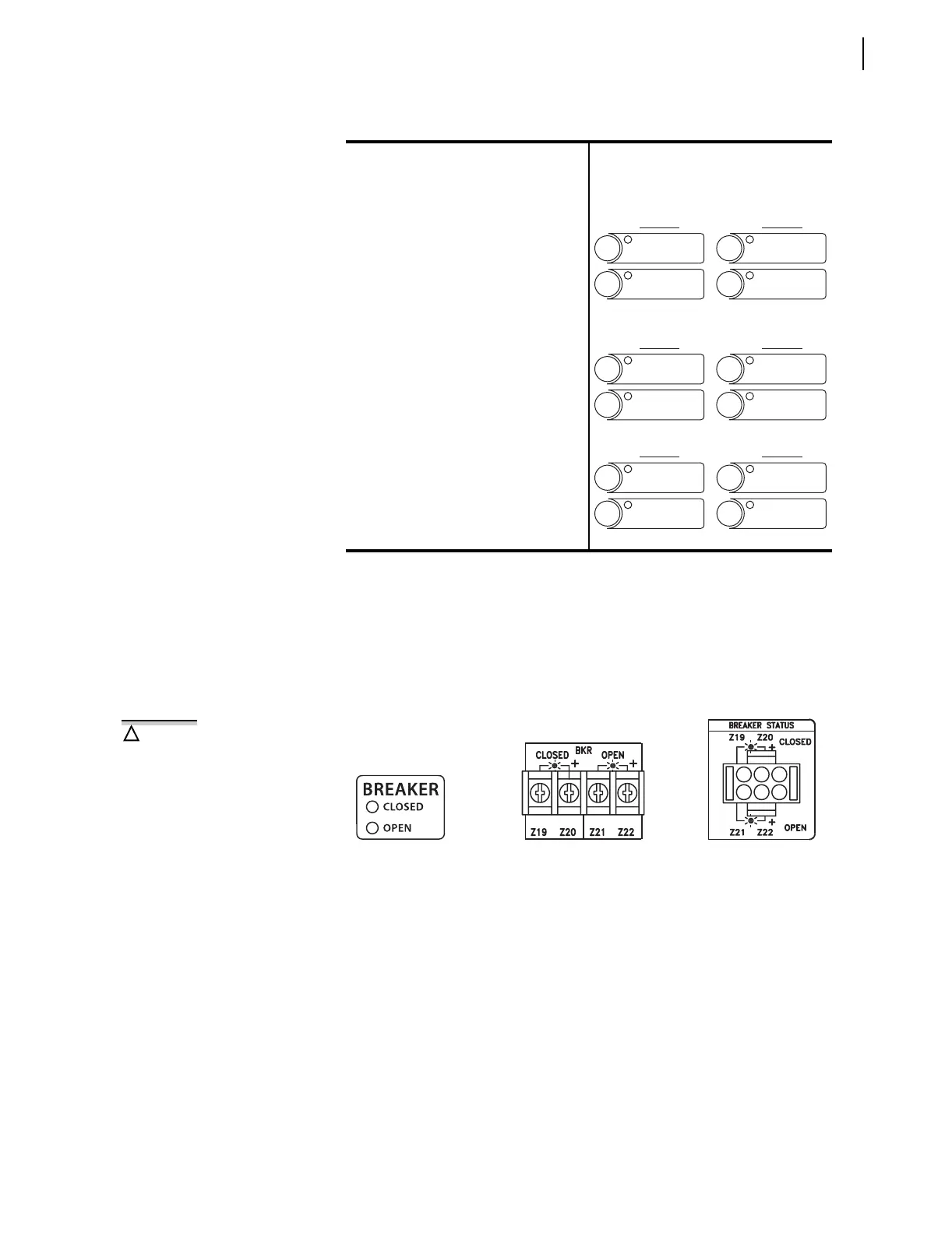

Figure 2.11 Breaker LED Front-Panel Default Labels and Rear-Panel Labels
Table 2.1 Options and Explanations for the User-Configurable
Front-Panel Labels
Default Labels
Use the default labels supplied with the
relay.
See Figure 2.7 and Figure 2.9
Handwritten Labels—reusing default
labels
Using the Label Removal Tool, remove the
default labels and write o the backside of
the label with a Sharpie
®
permanent
marker. Reinsert the labels in the appropri-
ate pockets.
Handwritten Labels—using blank labels
Write on the blank labels with a Sharpie
permanent marker. Using the Label
Removal Tool, replace the default labels
with the handwritten labels in the appropri-
ate pockets.
Laser-Printed Labels—using perforated
paper
Create on a computer with the templates
contained on the CD. Print to a laser printer
on the perforated paper. The User-Config-
urable Label Customization kit includes
instructions for Laser-Printed Labels.
Ground
Disabled
GROUND
ENABLED
Reclose
Blocked
RECLOSE
ENABLED
Default Custom
Ground
Disabled
GROUND
ENABLED
Reclose
Blocked
RECLOSE
ENABLED
Default Custom
GROUND
ENABLED
RECLOSE
ENABLED
GROUND
DISABLED
RECLOSE
BLOCKED
Default Custom
Front-Panel Breaker
Default Labeling
Connectorized Rear-Panel
Breaker Status Labeling
Rear-Panel Breaker Labeling With
Conventional Terminal Blocks
