2.8
SEL-351S Relay Instruction Manual Date Code 20080103
Installation
Front-Panel and Rear-Panel Connection Diagrams

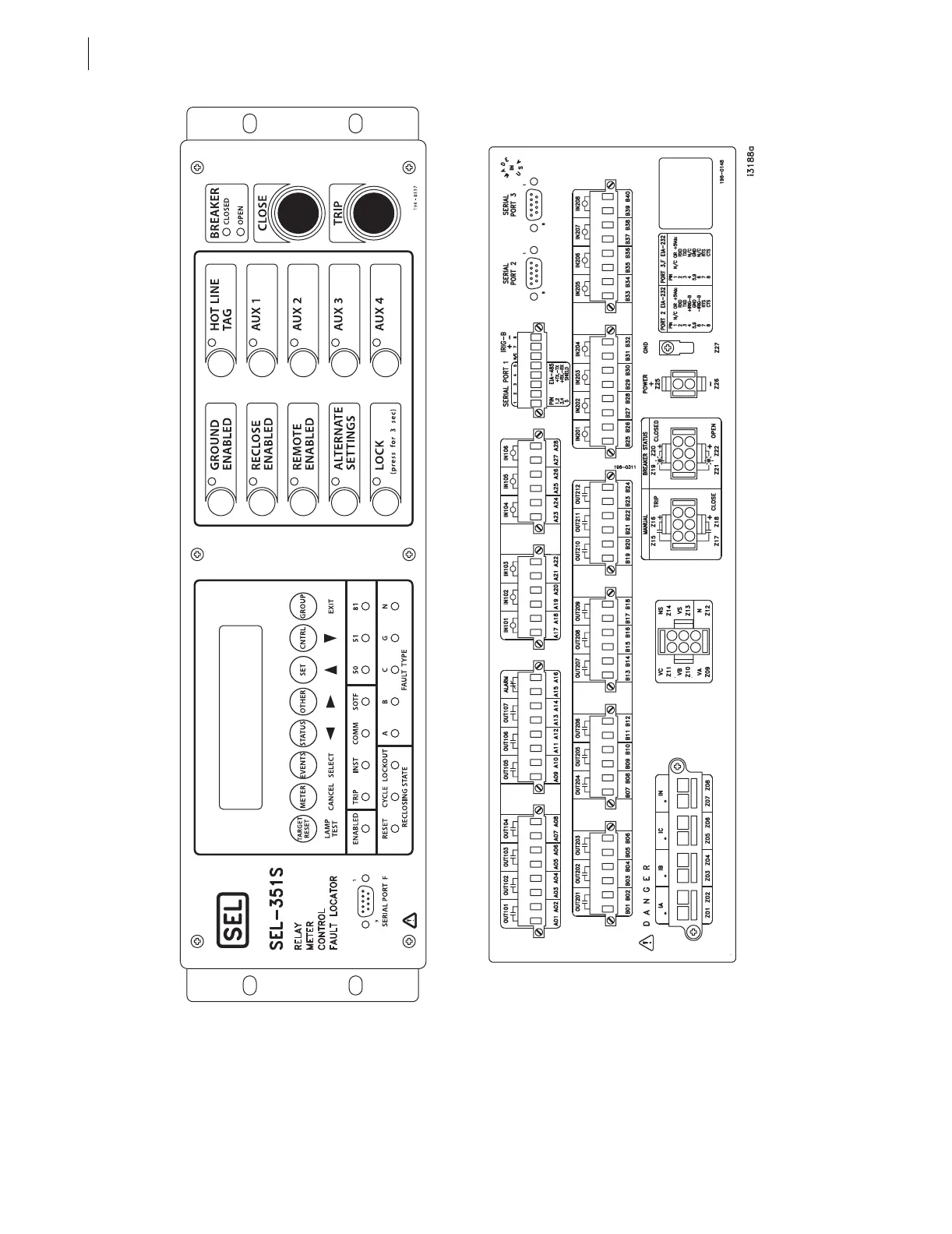

Figure 2.6 SEL-351S with Auxiliary {TRIP}/{CLOSE} Pushbuttons (Model 0351SxYH5xxxx2x);
Horizontal Rack-Mount Example, (Connectorized, With Additional I/O Board)
i3181a
Horizontal Model Top
