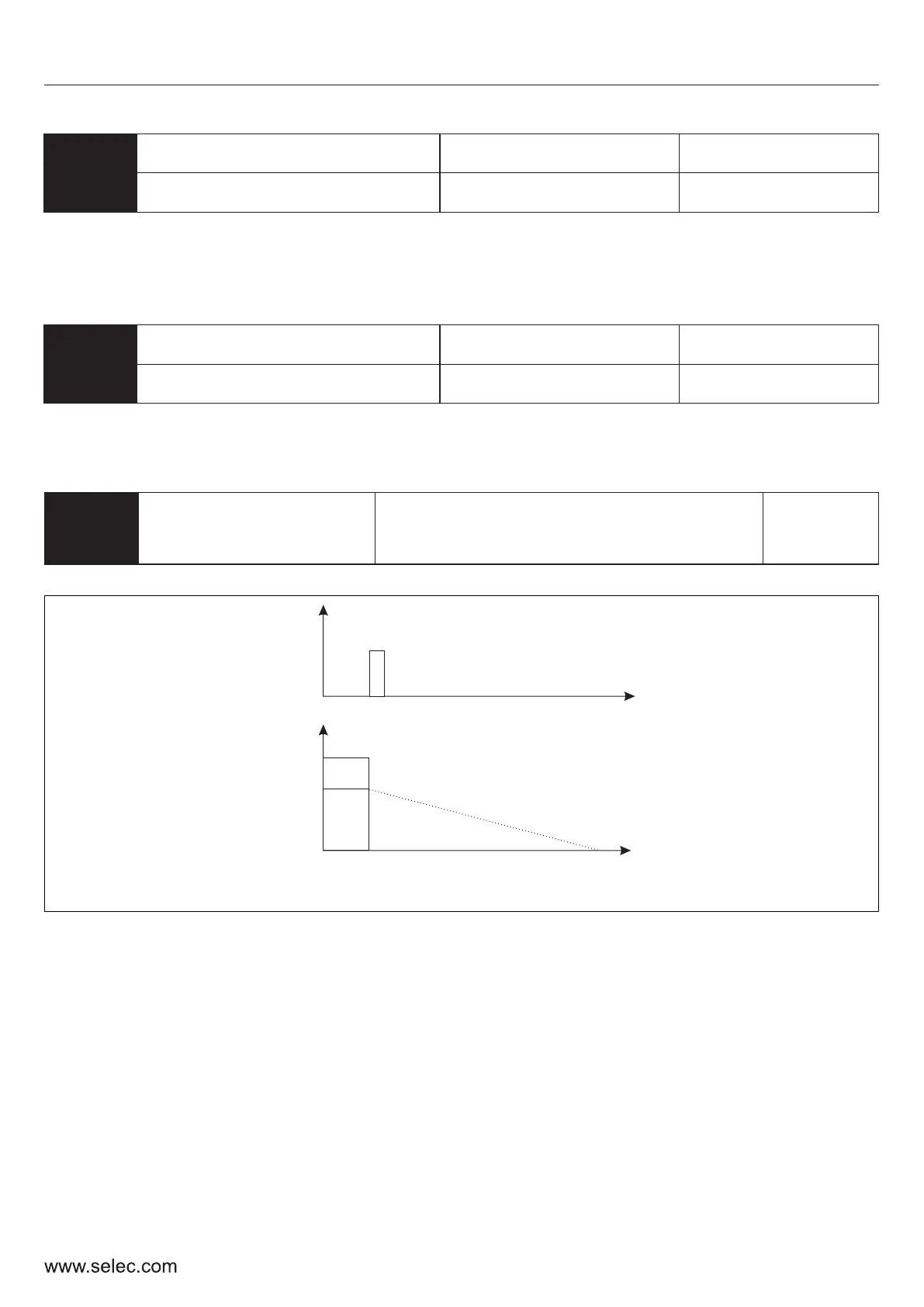

Selec VFD Series

32
User Manual
P2-03
Braking current before starting
0 – 150 % Default : 50 %
The braking current as a percentage of rated current determines the magnitude of the DC injection
current being used during starting. The time in P2-04 determines the duration for which this current is
applied.
P2-04
Braking time before starting
0.0 – 50.0 s
Default : 0 s
P2-01
Starting Frequency
0.0 – 10.0 Hz
Default : 0.5 Hz
P2-02
Retention time for starting
0.0 – 50.0 s
Default : 0 s
Applicable starting frequency can ensure that there is enough torque for starting. Retention time for
starting is needed for the formation of magnetic flow while the motor is on standby so that it can start
accelerating after the
start frequency is stabilized for a certain time.
P2-05
Stop mode
0: Coast to Stop
1: Ramp to Stop
2: DC Braking Stop
Default : 1
Coast to Stop
Stop signal
Output voltage
Motor speed
Time
Time
Actual time taken by
motor to stop will depend
on the load
