Selec VFD Series

Ramp to Stop
Output Freq.
Max Freq.
Running
Freq.
Stop signal
Time
Time
Set Dec Time
Act Dec
Time
33
User Manual

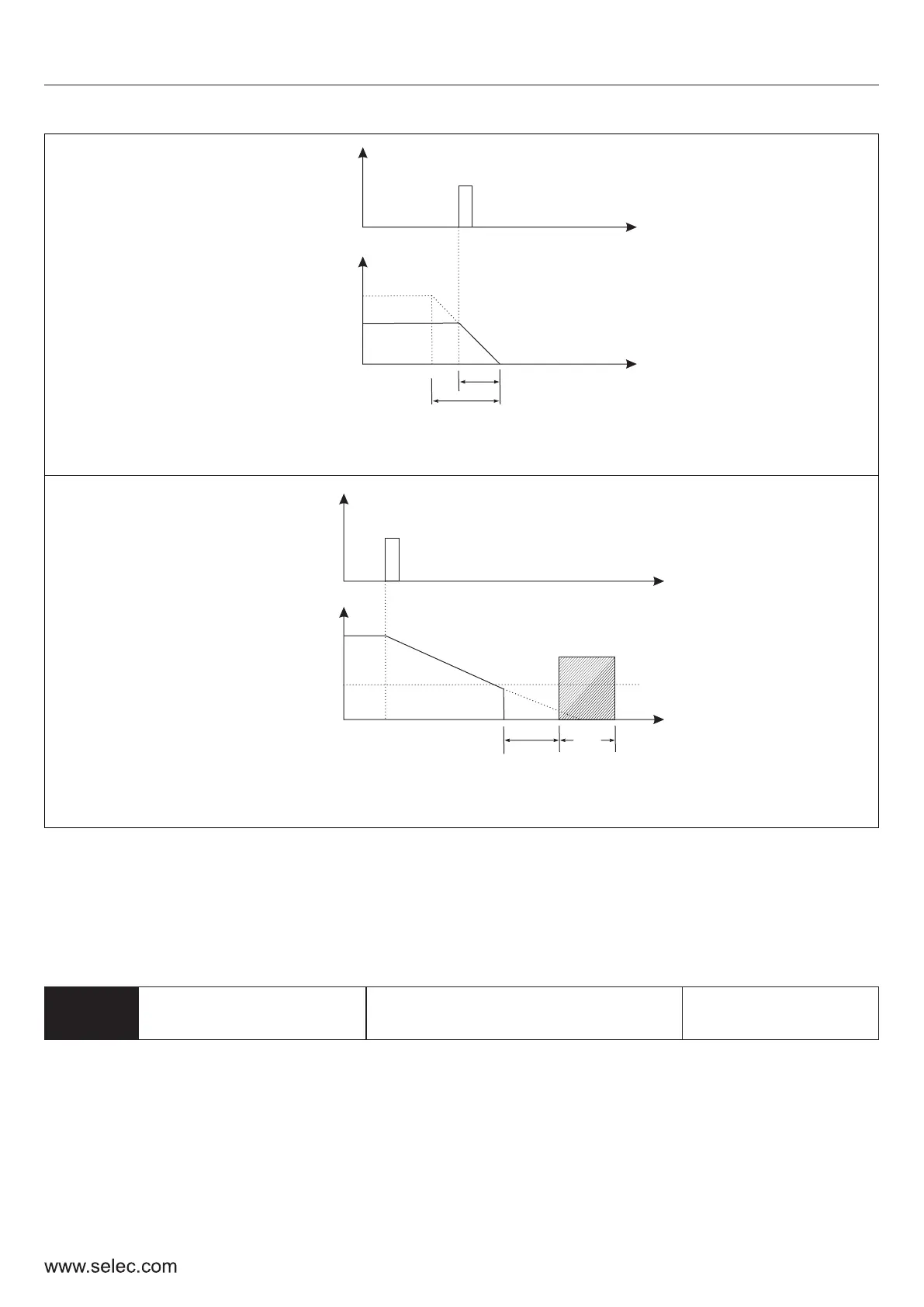

DC Brake Assisted Stop
Output freq.
Stop signal
Time
Time
Start freq of
DC braking
DC
Brake
DC
Brake
time
Demagnetizing
time
This parameter determines how the drive executes the stopping operation
0: In coast to stop, the drive simply turns off all the output switches and the system comes to a halt
purely based on the losses incurred due to friction.
1: In the ramp to stop mode, the drive decelerates the motor as per the selected deceleration time.
2: In DC Braking Stop, the drive first decelerates the motor to a preset frequency using the applicable
deceleration time. This is followed by the injection of a settable DC current.
P2-06
Start frequency of
DC braking
0 – 10.0 Hz
Default : 2.0 Hz
This parameter determines the frequency at which the ramp deceleration operation ends and DC
braking operation starts.
