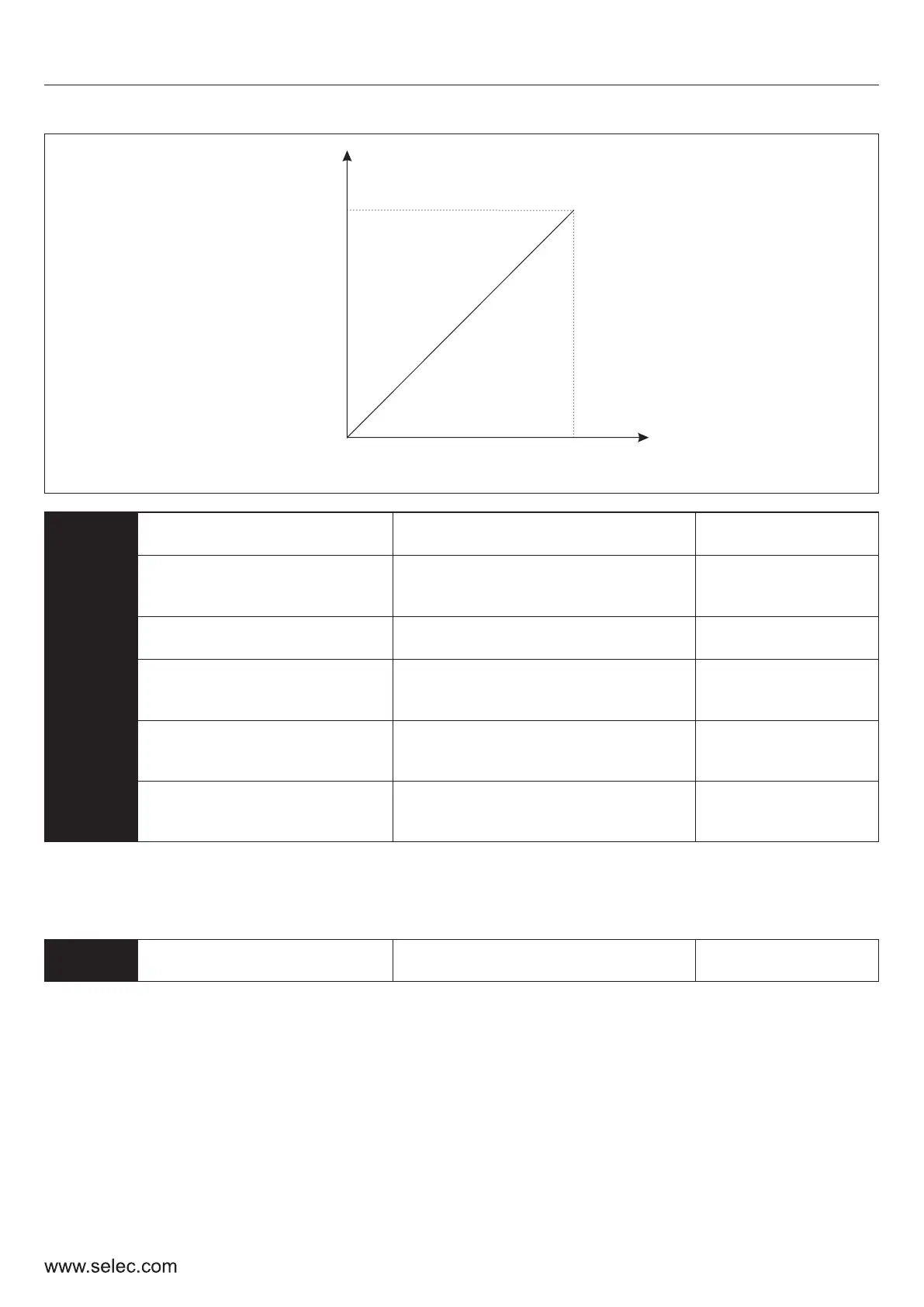

Selec VFD Series

Corresponding
parameter
P5-03
P5-01
P5-00 P5-02
Ai2
40
User Manual
P5-06
Lower Limit of AI2
0.0 – 100.0 % Default: 0.5 %
P5-07
Corresponding Setting
of AI2 Lower Limit
0.0 – 100.0 % Default: 0.0 %
P5-08
Upper Limit of AI2
AI2 Lower Limit – 100.0 %
Default: 0.5 %
P5-09
Corresponding Setting
of AI2 Upper Limit
0.0 – 100.0 % Default: 100.0 %
P5-10
AI2 Input Filtering
Time
0.0s- 10.0 s
Default:
0.1 s
P5-11
AI2 Signal loss
threshold
0.0 to AI2 Lower Limit
Default : 0.5 %
Similar to the previous parameters, these parameters relate to the AI2 terminal. Note that this is a
user-selected V/I terminal where the user has the option of selecting if they wish to give voltage or
current signals by altering the position of the AI2 switch.
P5-12
PNP/NPN Selection
0: NPN; 1: PNP
Default : 1
The P5-12 parameter is used to switch the polarity of the switches. Please refer to the standard
wiring diagram for better clarity.
