SEON TL-HD - SD Card Installation (Optional)

Installation
700-1014 R002 1–11
1.6.6. SD Card Installation (Optional)
To install the SD Card:
1. On the front of the DVR, unscrew the screw holding the SD card cover plate and
remove the cover plate.
2. Remove and discard the black plastic card slot sticker from behind the cover plate.

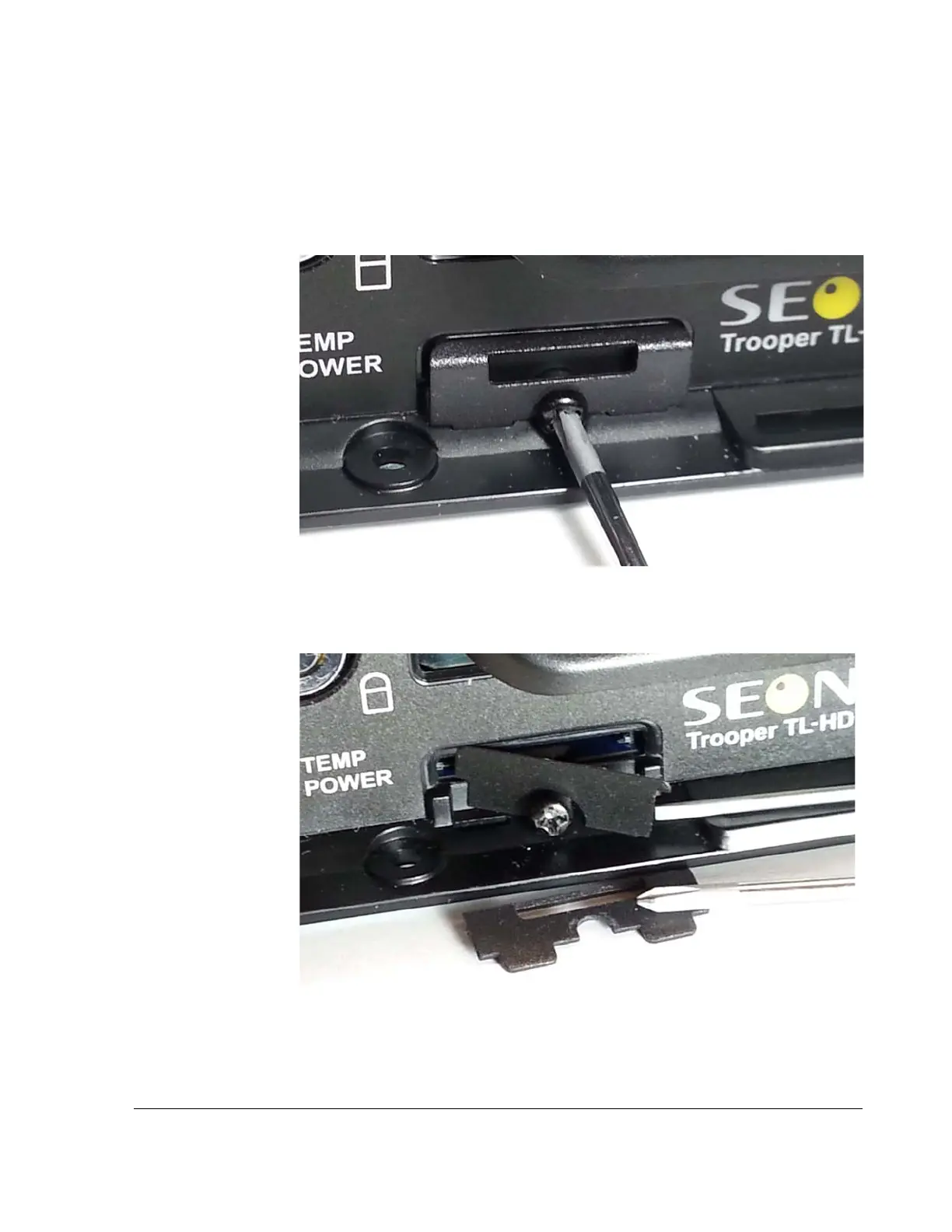

Figure 1-5 Remove SD card cover plate
Figure 1-6 Remove SD card slot sticker
