Installation
1–2 700-1014 R002

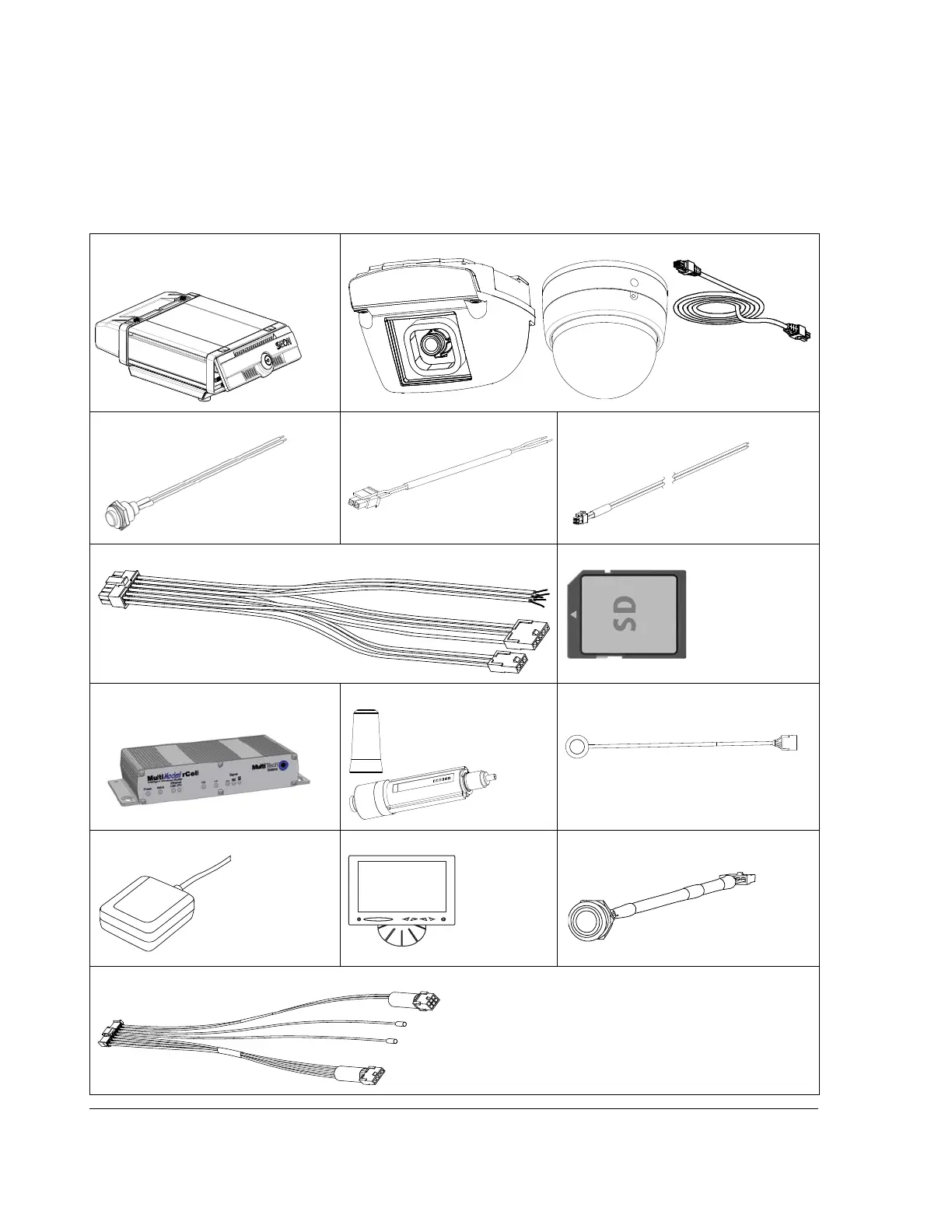

1.2. Trooper TL-HD System Package Contents
The required and optional contents of a typical installation package are shown below.
The actual contents of your installation package may vary, depending on the options
selected.
Trooper TL-HD DVR with hard drive,
locking front cover, cable cover, and
mounting plate
Cameras (up to 5) and extension cables
Alarm Switch and cable Alarm input harness Ignition input harness
Adapter harness SD Card (optional)
Smart-Reach Cellular (optional, and
power pass through cable, not shown)
Smart-Reach Lite (optional) RGY Illuminator (optional, and expansion
cable, not shown
GPS receiver (optional) Portable video monitor (optional) Diagnostic Button (optional, and extension
cable, not shown)
Expansion Harness (optional)
