Installation
1–8 700-1014 R002
10. When DVR installation is complete, attach the front door by hooking the door
along the top edge and turning the key to the locked position.
1.6.2. Camera Installation
Install the cameras according to the product documentation that is included with the
camera.
1.6.3. Alarm Button Installation
To install the alarm button:
1. Mount the Alarm Switch into a ½" hole.
2. Attach the black wire of the Alarm Switch to the black wire of the Alarm Input
harness. See Figure 1-2
.
3. Attach the red wire of the alarm button to the red wire in the Alarm Input harness.

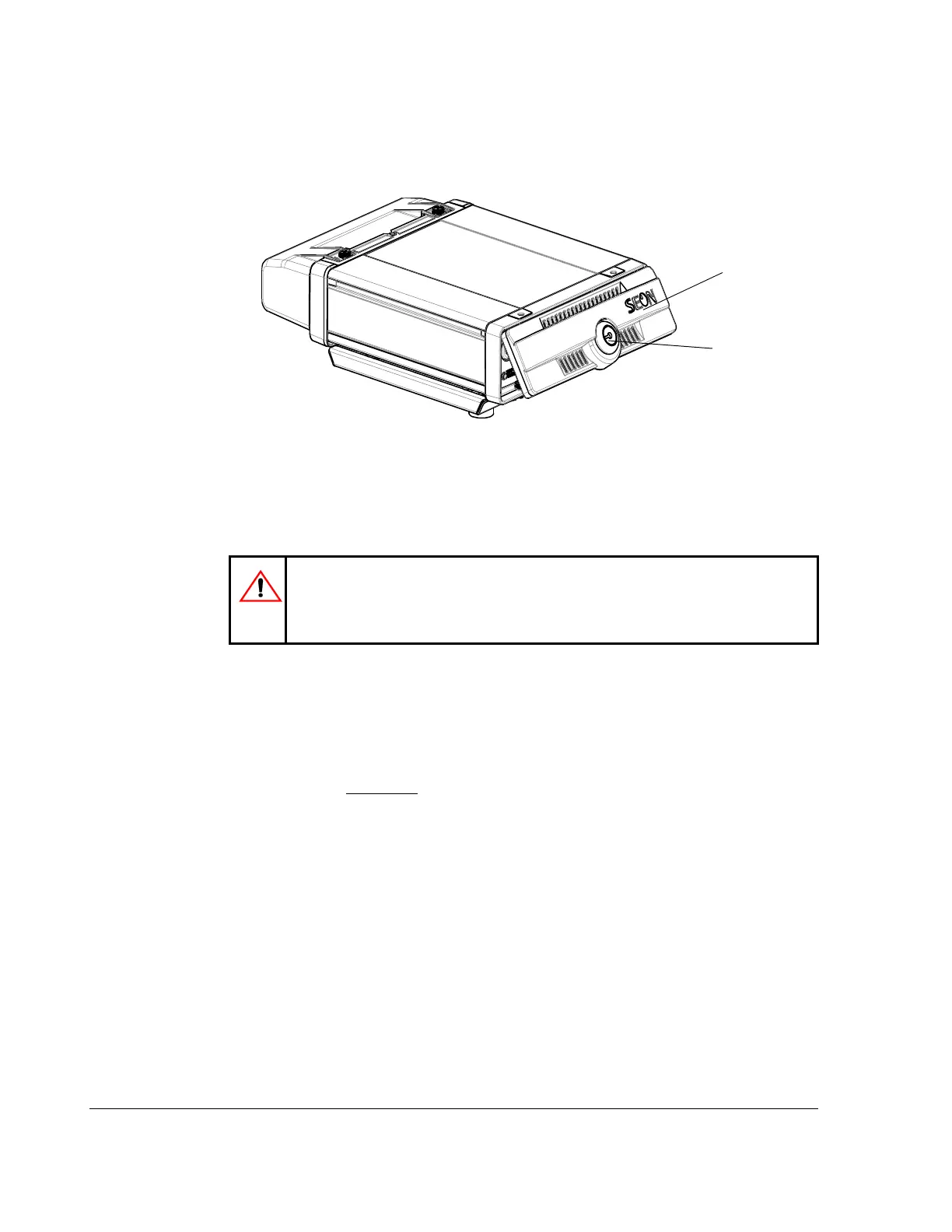

Door lock
Locking front cover
CAUTION: Wiring Damage
Route the wiring and cables away from sharp edges that might damage
the insulation. Avoid sharp bends in the cable.
