77

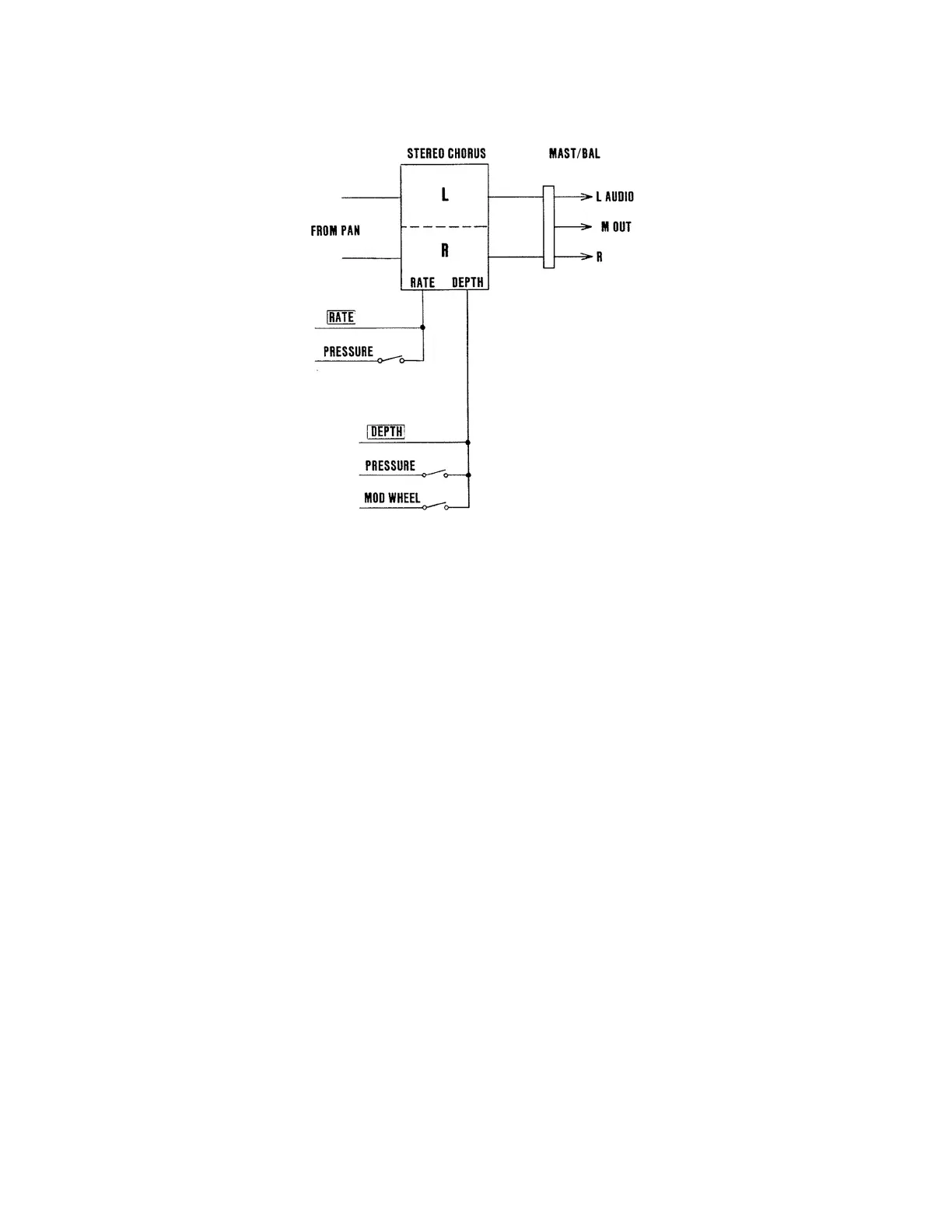

As shown in Figure 12-1, the Mod wheel can control the chorus depth, while
the chorus rate or depth can be modulated by the pressure signal.
CHORUS LEFT
This switch toggles the left chorus on and o. An LED indicates current state.
The LCD shows the settings of the initial Rate and Depth parameters.
CHORUS RIGHT
Toggles the right chorus on and o.
RATE/DEPTH
This switch moves the cursor between the Rate and Depth parameters. Use
the slider to adjust value from 0 - 99.
Figure 12-1
CHORUS MODULE
