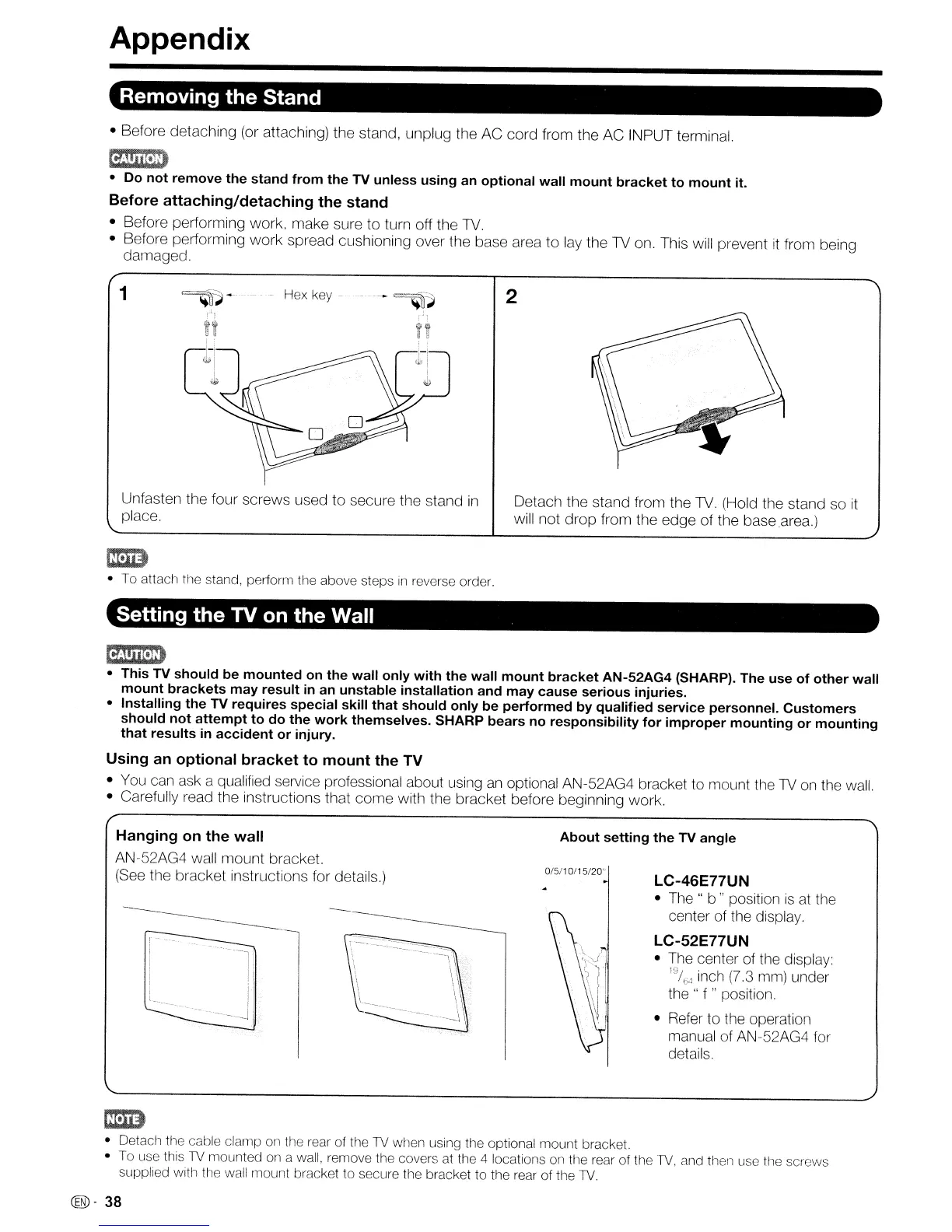

Appendix
Removing the Stand
• Before detaching (or attaching) the stand, unplug the AC cord from the AC INPUT terminal.
aJ!ilID
• Do not remove the stand from the TV unless using an optional wall mount bracket to mount it.
Before attaching/detaching the stand
• Before performing work, make sure to turn off the TV.
• Before performing work spread cLishioning over the base area to lay the TV on. This will prevent it from being
damaged.
1
, ~-J • - - Hex key -
'I
it
tl
-.=~~
.. ,
iT
2
Unfasten the four screws used to secure the stand in
place.
Detach the stand from the
TV. (Hold the stand so it
will not drop from the edge of the base area.)
1mB
• To attach the stand, perform the above steps In reverse order.
Setting the TV on the Wall
EmmI:)
• This TV should be mounted on the wall only with the wall mount bracket AN-52AG4 (SHARP). The use of other wall
mount brackets may result
in an unstable installation and may cause serious injuries.
• Installing the TV requires special skill that should only be performed by qualified service personnel. Customers
should not attempt to do the
work themselves. SHARP bears no responsibility for improper mounting or mounting
that results
in accident or injury.
Using an optional bracket to mount the TV
• You can ask a qualified service professional about using an optional AN-52AG4 bracket to mount the TV on the wall.
• Carefully read the instructions that come with the bracket before beginning work.
About setting the TV angle
LC-46E77UN
• The" b" position is at the
center of
the display.
LC-52E77UN
• The center of the display:
19/
6
_
1
inch (7.3 mm) under
the" f " position.
• Refer to the operation
manual of AN-52AG4 for
details.
0/5/10/15/20"
---
i
----J
Hanging on the wall
AN-52AG4 wall mount bracket.
(See the bracket instructions for details.)
m:Ii.l
• Detach the cable clamp on the rear of the TV wilen uSing tile optional mount bracket.
• To use this TV mounted on a wall, remove the covers at the 4 locations on the rear of the TV, and then use tile screws
supplied with the wall mount bracket to secure the bracket to the rear of the TV.
@- 38
