BEFORE USING THE MACHINE
(17) [COMM. SETTING] key
This is used to switch between memory
transmission and direct transmission, and to
switch between automatic reception and manual
reception. (p.89)
(18) [SPEED] key
This is used to dial by Speed dialing. (p.83)
(19) [FAX STATUS] key
This is used to cancel a fax transmission or a
stored fax transmission. (p.93)
(20) [SPEAKER] key
This is used to dial without lifting an extension
phone connected to the machine. (p.83)
(21) [REDIAL/PAUSE] key
This is used to redial the last number dialed, and
enter a pause when entering a fax number.
(p.83, p.85)
(22) [COLOR START] key
/ indicator
Press this key to copy or scan an original in color.
This key cannot be used for fax.
(23) [BLACK & WHITE START] key
/ indicator
Press this key to copy or scan an original in black and
white. This key is also used to send a fax in fax mode.
(24) [LOGOUT] key
Press this key to log out after you have logged in
and used the machine. When using the fax
function, this key can also be pressed to send
tone signals on a pulse dial line.
(25) Numeric keys
Enter characters/numbers.
(26) [READ-END] key
When copying in sort mode from the document
glass, press this key when you have finished
scanning the original pages and are ready to
start copying.
(27) [CA] key
Clears all selected settings and returns the
machine to the default settings. (p.15)
(28) [STOP] key
Press this key to stop a copy job or scanning of
an original.
(29) FAX mode indicators
• LINE indicator
Lights up when a fax is being sent or received.
• DATA indicator
Blinks when a fax cannot be printed because
there is no paper or otherwise. Lights steadily
when there is an unsent fax.
(30) Printer mode indicators
• ONLINE indicator
Print data can be received when this lamp is lit.
• DATA indicator
Blinks when print data is being received. Lights
steadily during printing.

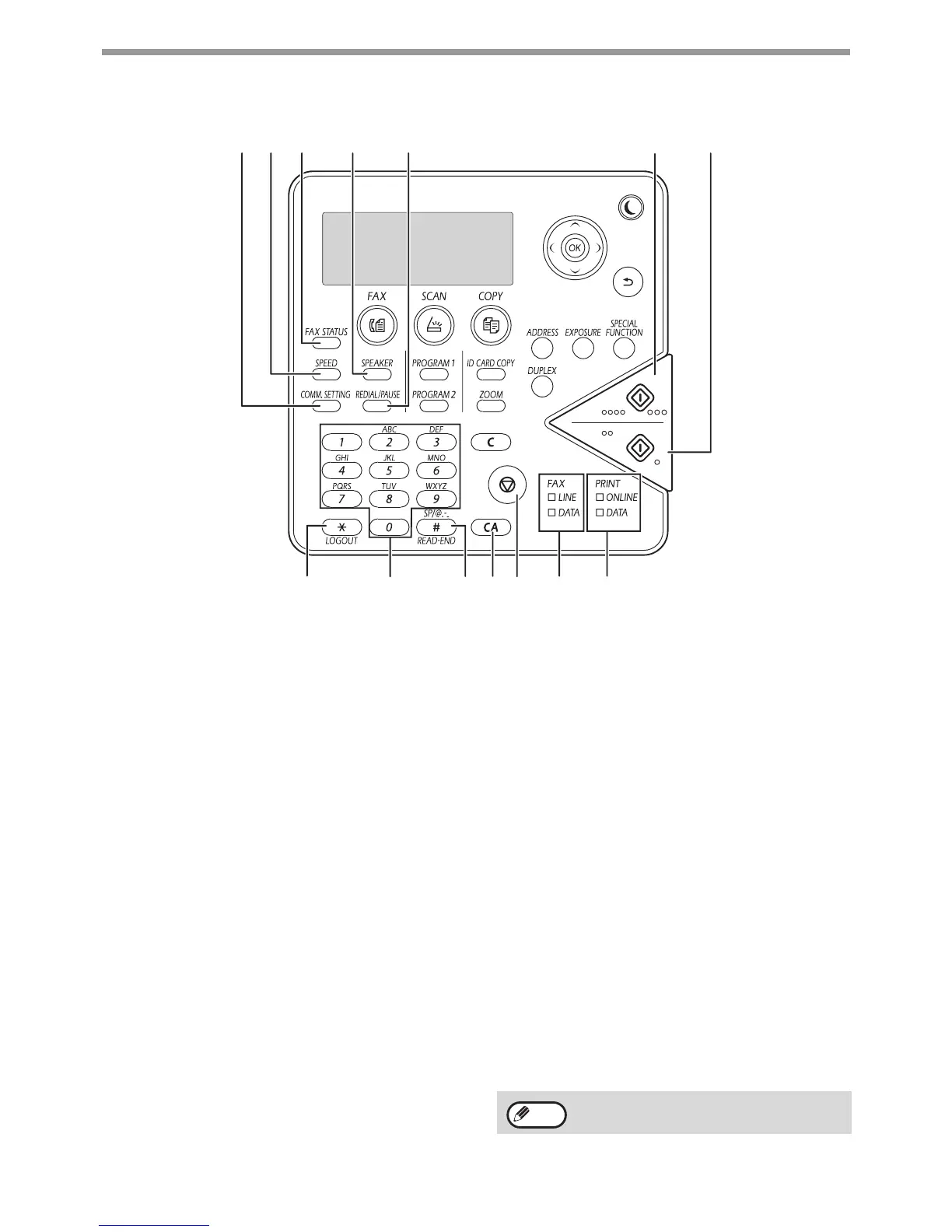

(17) (18) (19) (20) (21) (22) (23)
(24) (25) (26) (27) (29) (30)(28)
The content of the operation panel varies by
model.
