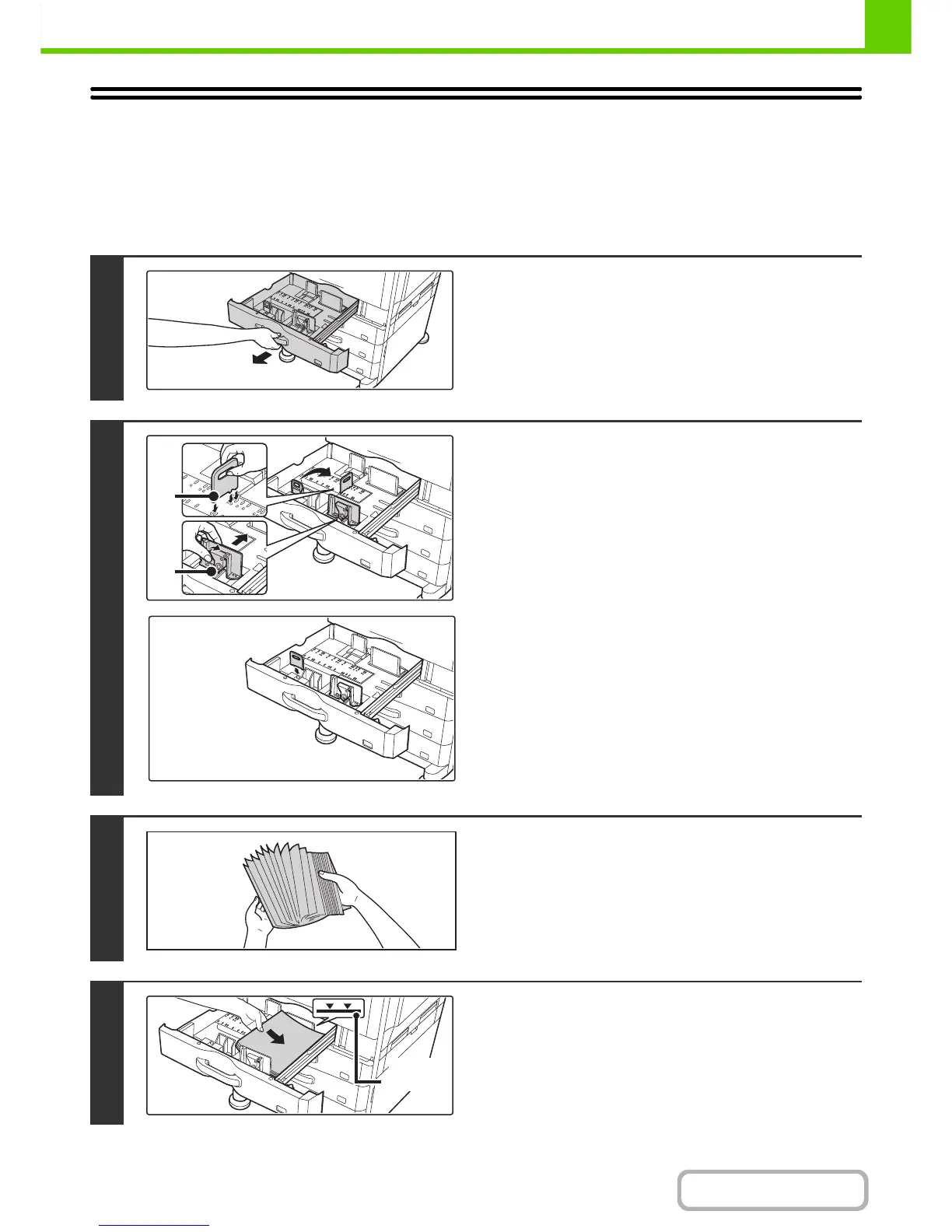

TRAY SETTINGS FOR TRAY 1 TO 4
LOADING PAPER AND CHANGING THE PAPER SIZE
A maximum of 500 sheets of paper from size 8-1/2" x 11"R to 11" x 17" (B5R to A3) can be loaded in trays 1 to 4.
1
Pull out the paper tray.
Gently pull the tray out until it stops.
To load paper, go to step 3. To load a different size of paper, go
to the next step.
2
Adjust the guide plates A and B by
squeezing their lock levers and sliding
them to match the vertical and
horizontal dimensions of the paper to be
loaded.
• Guide plate A is insertable. Remove it, and then reinsert it at
the appropriate position for the paper being supplied.
• Guide plate B is slidable. Slide the guide plate B while
squeezing its lock lever until it is at the appropriate position
for the new paper size.
• If 11”x17” size paper has been set, insert the guide plate A
into the holes at the front-left side of the tray.
3
Fan the paper.
Fan the paper well before loading it. If the paper is not fanned,
multiple sheets may feed at once and cause a misfeed.
4
Insert the paper into the tray.
Load the paper with the print side face up. The stack must not
be higher than the indicator line (maximum of 500 sheets).
