Sharp SF-2040 - Operation Panel

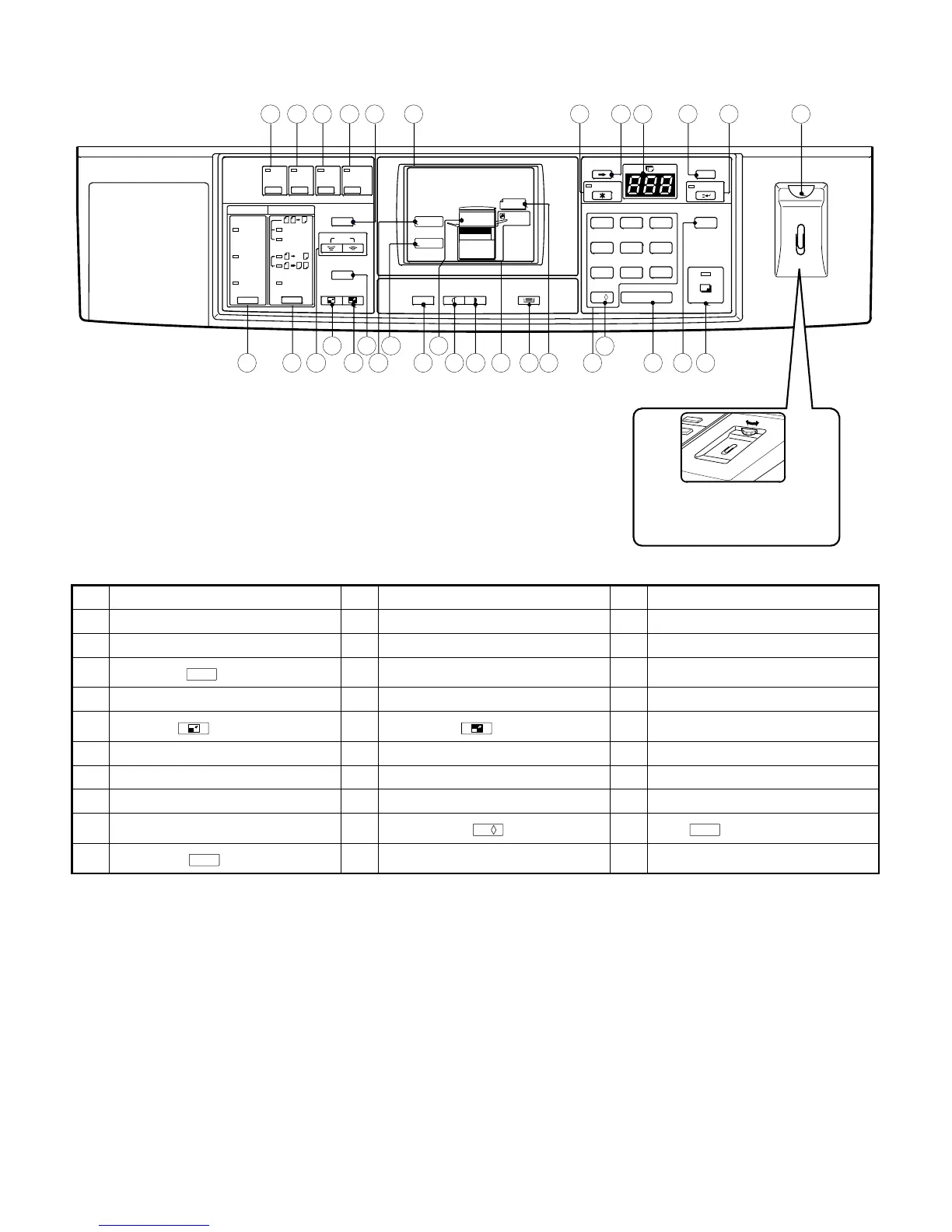

2. Operation panel
1
COVERS key and indicator
2
ERASE key and indicator
3
MARGIN SHIFT key and indicator
4
DUAL PAGE COPY key and indicator
5
AUTO IMAGE key
6
Message display
7
INFORMATION key and indicator
8
SCROLL DISPLAY keys
9
COPY quantity display
F
PROGRAM ( ) key
G
INTERRUPT key and indicator
H
LCD contrast control
I
SORTER key and indicators
J
ORIGINAL TO COPY key and indicators
K
ZOOM keys
L
Reduction ( ) key
M
Enlargement (
) key
N
100% key
O
COPY RATIO display
P
EXPOSURE display
Q
EXPOSURE key
R
AUTO PAPER SELECT display
S
LIGHT key
T
DARK key
U
Paper size display
V
TRAY SELECT key
W
Original size display
X
10-key pad
Y
AUDIT CLEAR ( ) key
Z
Clear (
) key
[
CLEAR ALL ( ) key
\
START key and indicator
P
0/
C
CA
COVERS ERASE MARGIN
SHIFT
DUAL PAGE
COPY
SORTER ORIGINAL TO COPY
EVEN NUMBER
ODD NUMBER
(ORIGINALS)
1
00
AUTO IMAGE
ZOOM
100%
SORT
STAPLE
SORT
GROUP
PRE-COUNT
ORIG INAL S
00
11
1
AUTO
MANUAL
EXPOSURE
LIGH T DA RK
AUTO
EXPOSURE
COPY RATIO
1 0 0 %
00x171
8½x11 0
AUTO PAPER
SELECT
READY TO COPY.
ORIGINAL
SCROLL DISPLAY
INFORMATION
TRAY SELECT
AUDIT CLEAR
CLEAR ALL
START
0/
CA012
543
6
8
9
C
P
PROGRAM
LCD contrast control
Use the contrast control adjustment to vary the
contrast of the message display to best suit the
room lighting conditions.
