Sharp SF-2040 - Clutches, Solenoids

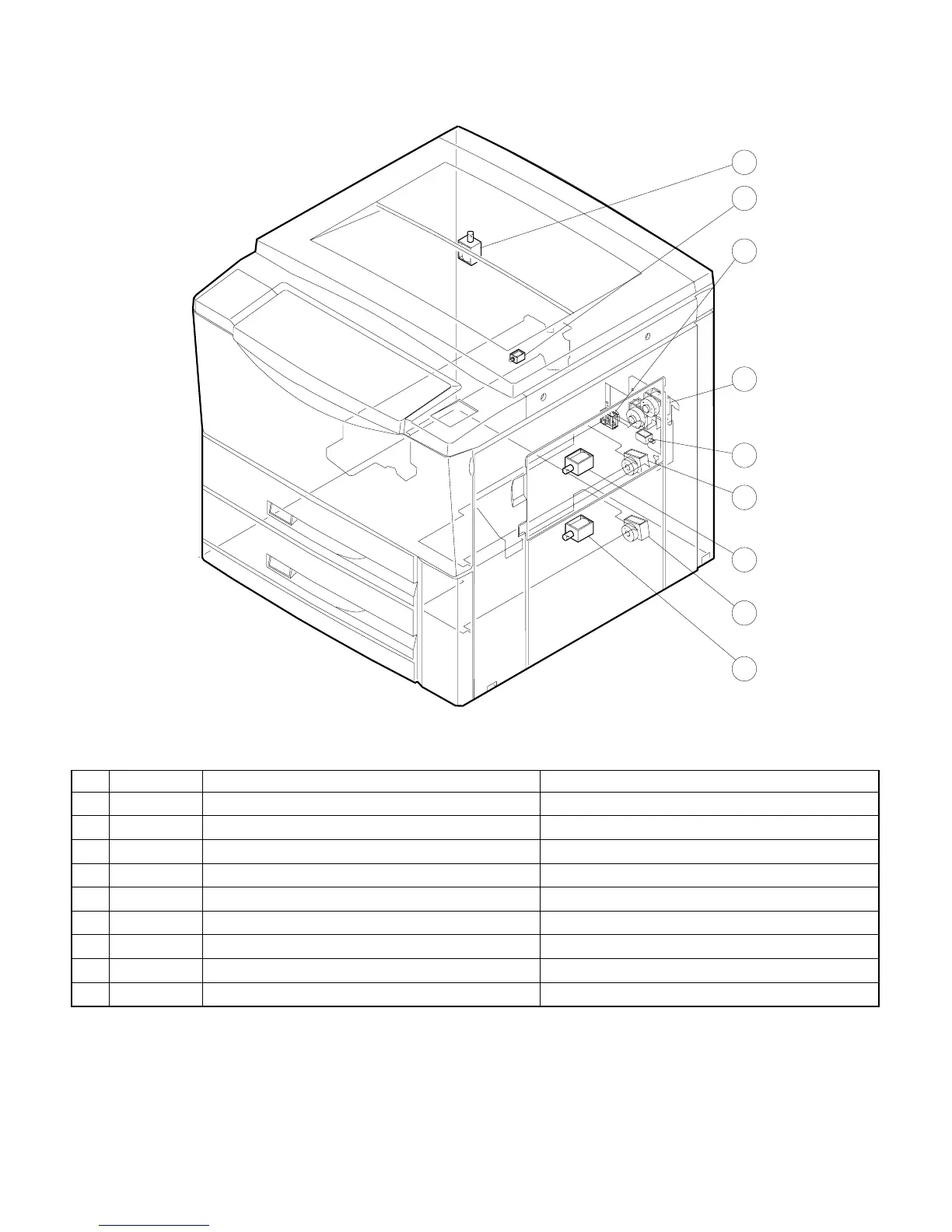

4. Clutches, solenoids
Signal name Name Function
1
CPFS1 Upper cassette paper feed solenoid For tensioning takeup roller
2
CPFS2 Lower cassette paper feed solenoid For tensioning takeup roller
3
CPFC1 Upper cassette paper feed clutch For actuating paper feed roller
4
CPFC2 Lower cassette paper feed clutch For actuating paper feed roller
5
MPFS Manual paper feed solenoid For tensioning takeup roller
7
TRCH Transport roller clutch (fast) For actuating transport roller (fast)
8
RRC Resist roller clutch For actuating resist roller
9
PSPS Paper separation solenoid For actuating paper separation solenoid
F
DGS Duplex copy gate solenoid For actuating duplex copy gate
10
9
8
7
4
1
2
3
5
4 – 5
