Sharp SF-2040 - Duplex Copy Tray

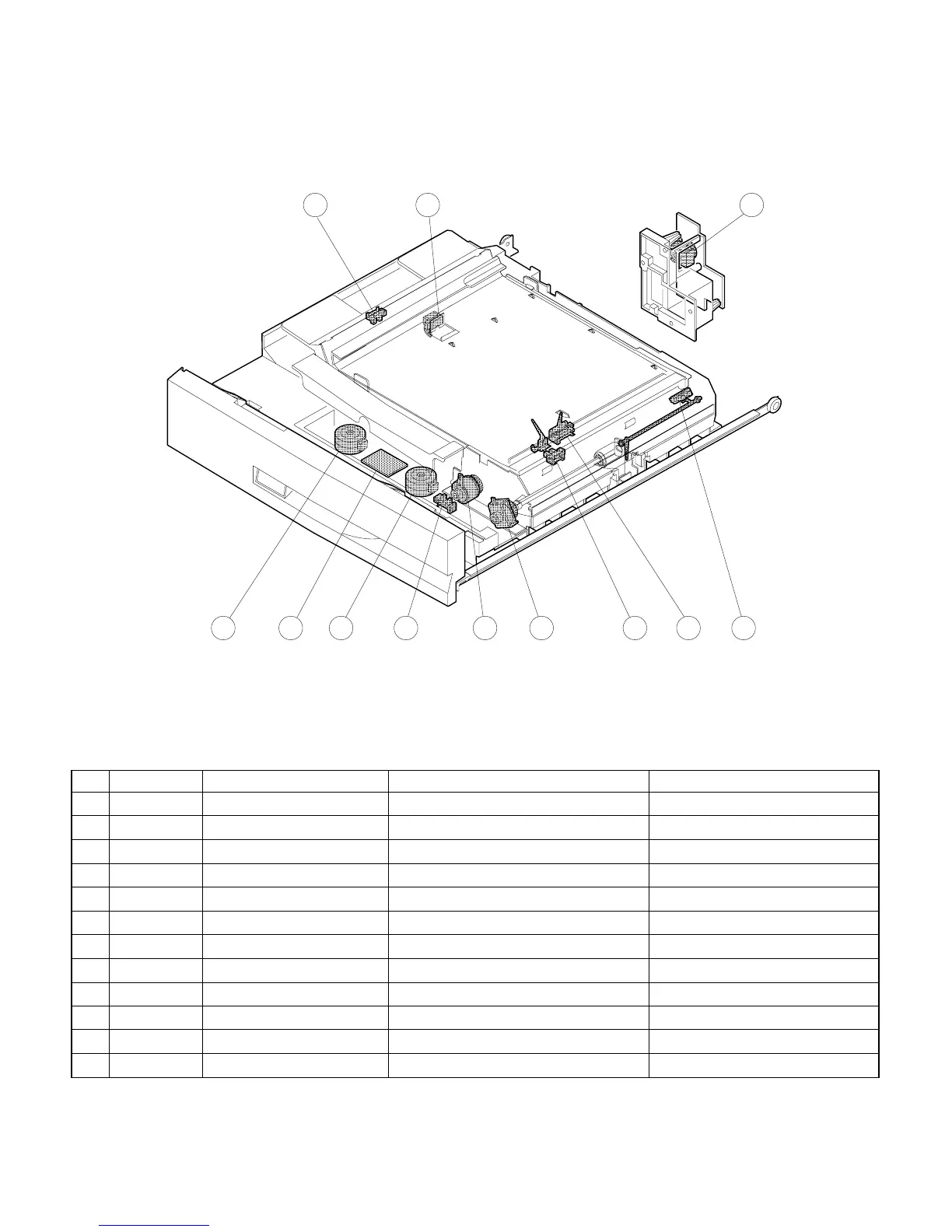

8. Duplex copy tray
Signal name Type Name Output
1
APHPS2 Transimissive photosensor ADU rear plate home position sensor Low when at home position
2
DPPD1 Transimissive photosensor ADU paper transport sensor-1 High when paper passes over
3
APHPS1 Transimissive photosensor ADU alignment plate home position sensor Low when over home position
4
DPPD2 Transimissive photosensor ADU paper transport sensor-2 High when paper detected
5
DTPID Transimissive photosensor ADU tray sensor High when paper detected
6
DPFD Transimissive photosensor ADU paper entry sensor High when paper detected
7
PAM2 DC stepping motor ADU rear plate motor
8
PAM1 DC stepping motor ADU alignment plate motor
9
DPFC Magnetic clutch ADU paper feed clutch
F
DRRC Magnetic clutch ADU counter roller clutch
G
DDC Magnetic clutch ADU clutch
H
ADUPWB Duplex copy tray load driving Diode PWB
6
1 2
3 87 9 10 5 4
12
11
4 – 9
