Sharp SF-2040 - Manual Feed Multicopy Unit

2. Manual feed multicopy unit
5 6
4
7
8
9
10
11
14
Counter roller
Paper feed
roller
Spring clutch, small Spring clutch, large

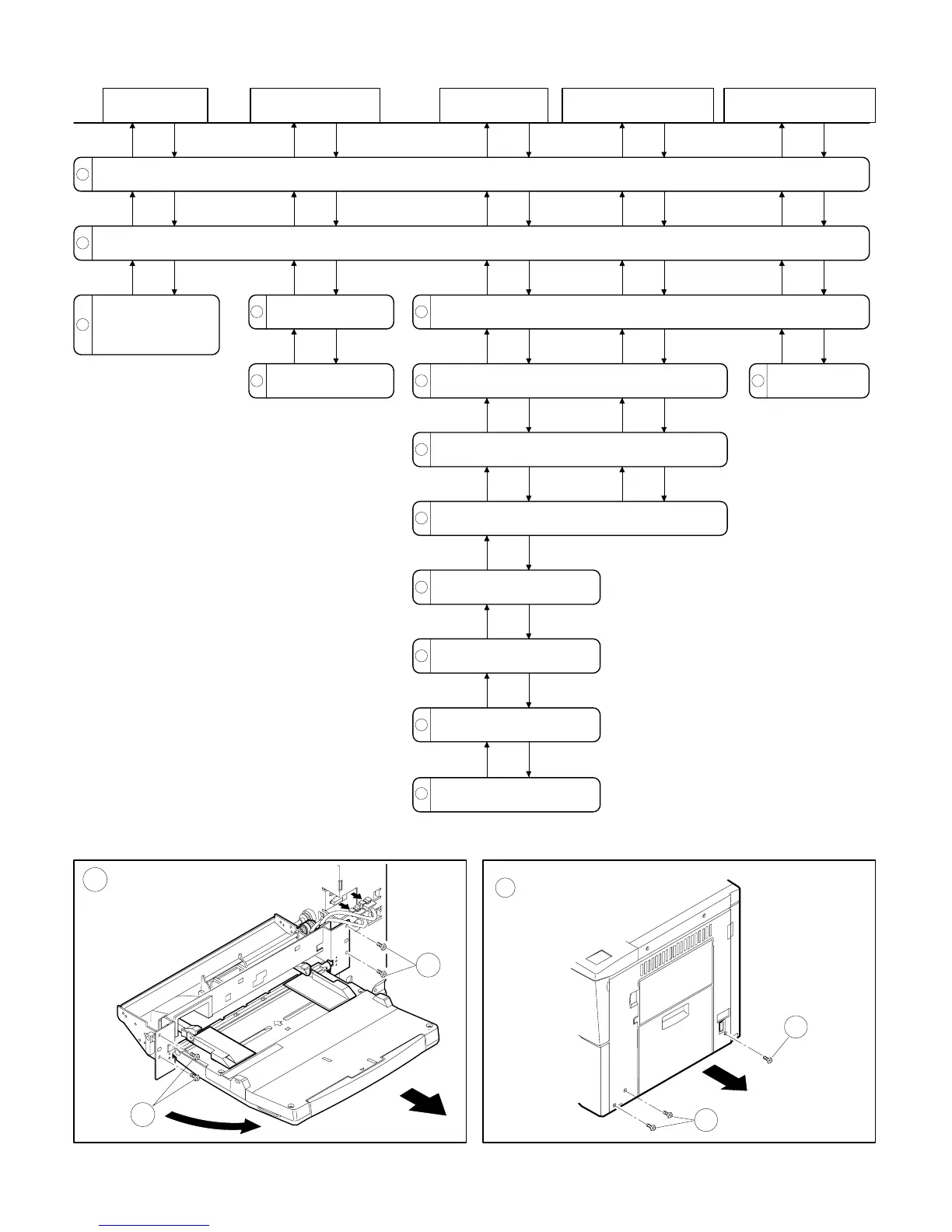

Remove the right side panel of the copier (3 screws).
Remove the manual feed multicopy unit (4 screws, 2 connectors).
Remove the partition
plate from the cam lever.
Remove the takeup
roller.
Remove the manual feed multicopy solenoid (2 screws).
Remove the connection gearwheel (1 E-ring).
Remove the manual feed drive gearwheel (1 C-ring).
Remove the spring clutch, small (2 E-rings, 1 pin).
Remove the spring (1 spring).
Remove the front side bushing
of the drive roller shaft assy
(1 E-ring, 1 clutch spring bushing).
Remove the drive roller shaft
assy.
Remove the paper feed roller from
the drive roller shaft assy (3 E-rings,
1 connection gearwheel, 1 pin).
Remove the spring
clutch, large (1 E-ring).
Takeup roller
1
2
12
13
Remove the reverse
roller holder (2 screws).
Remove the counterroller
unit (1 plastic E-ring).
3
A
2
2
A'
1
1
6 – 3
