Shimadzu PDA-7000 User Manual

xxii
38
080-80202-04
Temperature controller E5CN-Q2T-W
39
066-19180-02
Timer H3Y-2 AC200V 3M
Switch panel
40
072-01122
Fuse F-7165 10A 250V
41
072-01412-52
Fuse FGB01 20A 250V
42
042-60474-01
Fan 4715MS-10T-B50-B00
Air conditioning unit
43
078-29503-02
Heater PTWHC3AF800Y140D00
44
211-50411
Exhaust solenoid valve assembly
45
042-00126-33
Vacuum pump GDH-162-200KF
Spectrometer exhaust line
46
018-31550-09
Super sun spring hose (1.7MT)
*
1
There are two types of condenser lenses, and which one to use depends on the
specification of the instrument. See below for more details.

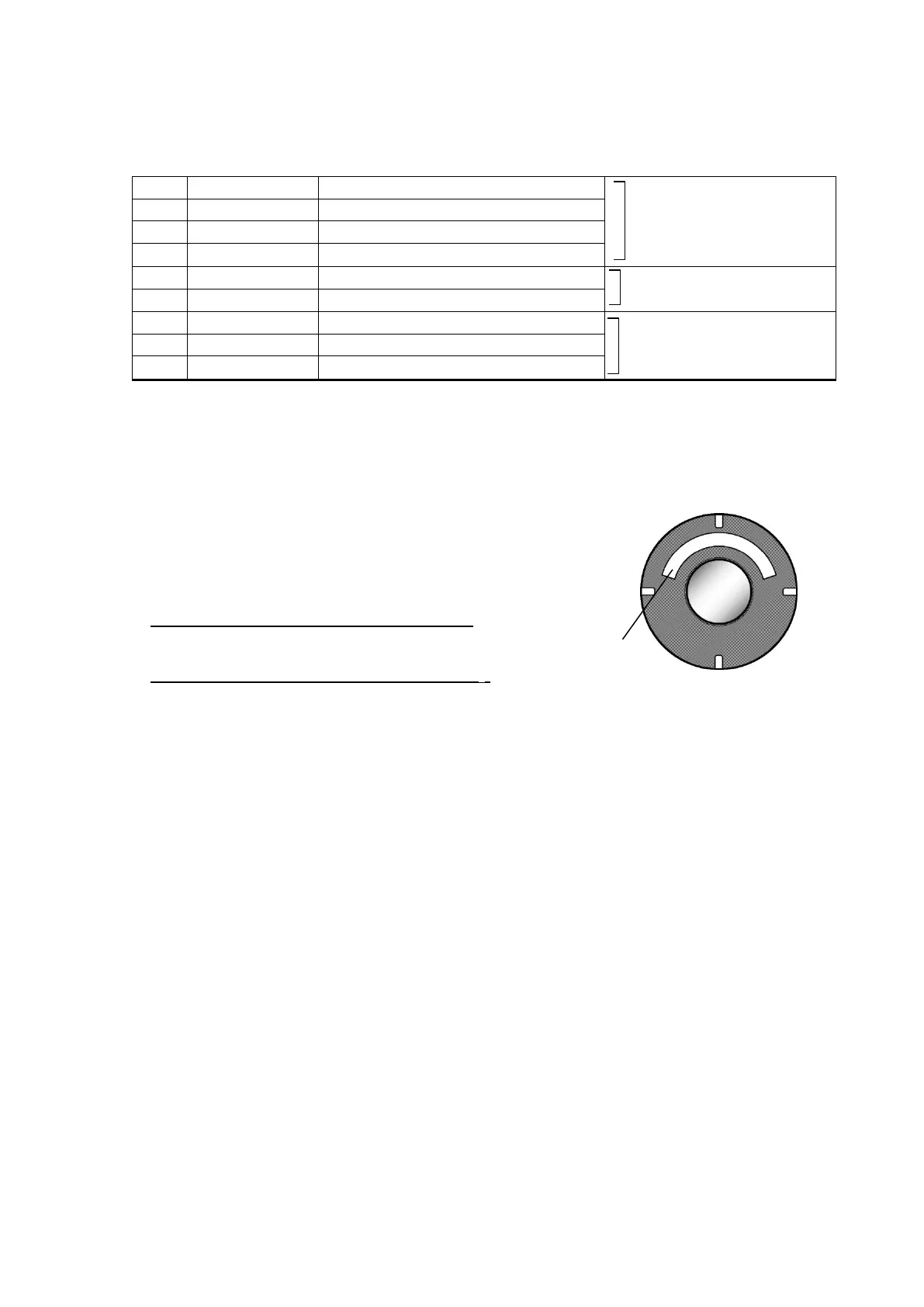

How to distinguish similar parts
1. Condenser lens
There are two types of condenser lenses.
Part No. is shown on the label put on the lens assembly, as
described on the figure right.
(1) 202-46611-01 Lens assembly (Q1)
Standard type lens.
(2) 205-01583-01 Lens assembly (MgF
2
)
Used for the analysis of elements that emit vacuum-UV lines, such as oxygen or
nitrogen.
label
