Shimadzu PDA-7000 User Manual

5 Maintenance
5-23
5.6 Adjusting the control gap
Carry out maintenance for the control gap following the procedure described below.
1 Turn OFF the SOURCE switch on
the switch panel for safety.
Warning
Electric Shock
Never carry out maintenance operations unless the SOURCE
switch on the switch panel is turned OFF.

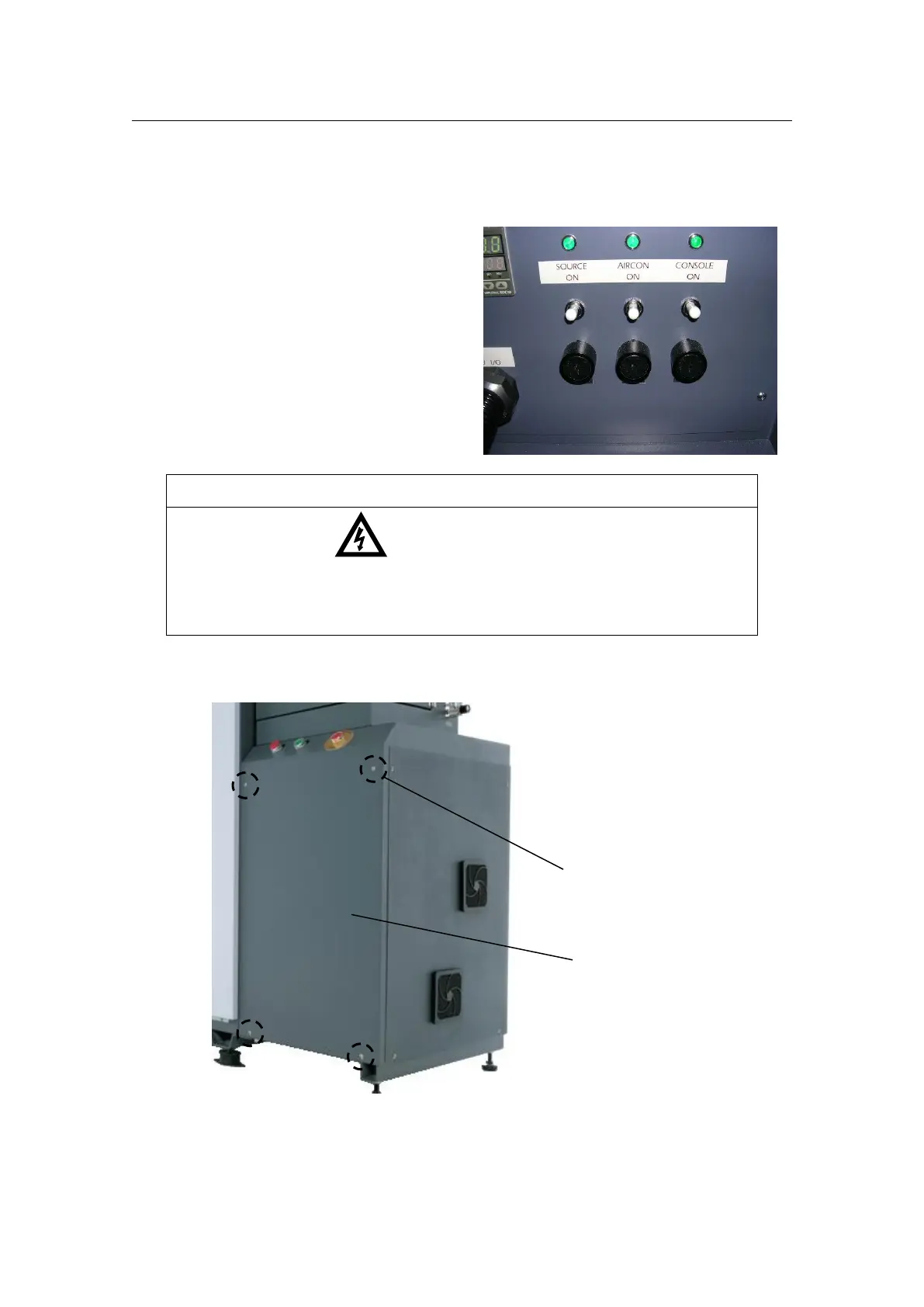

2 Detach the front panel of the excitation unit.
Exterior View of Excitation Unit
Front Panel of
Excitation Unit
Screw (4 pieces)
