Siemens LME71 Series

103/116
Smart Infrastructure Basic Documentation LME7... CC1P7105en
15 Operation via internal LED 24.07.2020

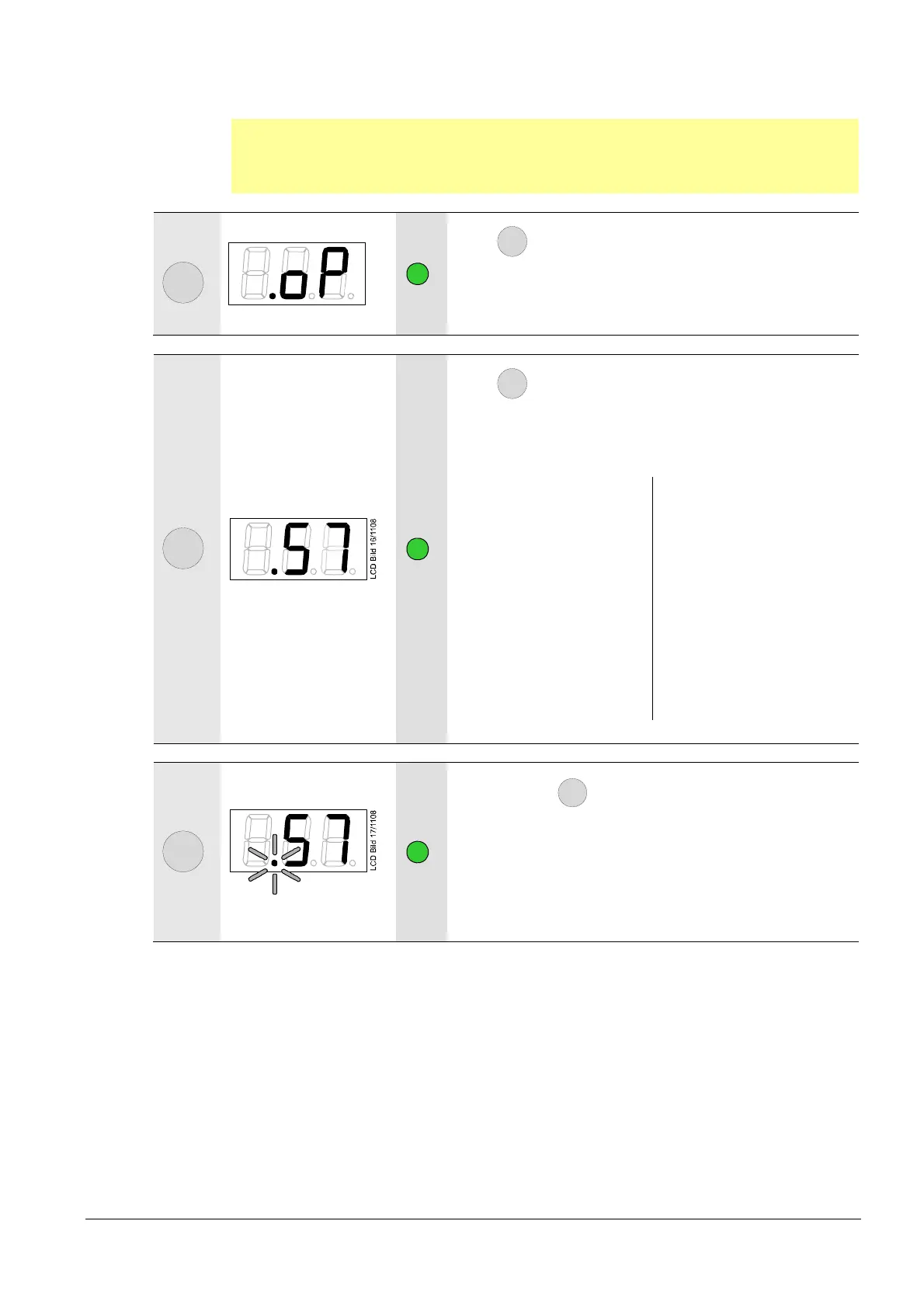

15.4.4 Display of preset output

Note:
Display is possible only when …
 in operating mode or standby,
 program sequence for modulating operation via analog preset output.
A
LCD Bild 13/0908
Press
A
for display of the relative current position of the
actuator.
Signal lamp blinks green.
Display shows .oP.
A
1...3 s
Press
A
(1…3 seconds) for display of the relative current
position.
Signal lamp blinks green.
The relative value .57 of the current position is displayed.
PME7 with actuator
control:
Position of actuator 0°
0  value of potentiometer =
0% display
Position of actuator high-fire
>0°
<90° = value of
potentiometer
<1000  = 100% display
>0  <1000 
PME7 with PWM fan:
Current speed
0 rpm = 0% display
Current speed corresponds
to the rated load speed =
100% display
Example: Value .57
A
>3 s
When pressing
+
for >3 seconds, the point after the
number begins to blink.
When the button is released, the value is displayed for 2
minutes.
Signal lamp blinks green.
Then, the normal display appears.
Display: Value 57, point . blinks.
