13.2 Meaning of symbols on the display
P
Vh
mi n
s%
Parameter setting mode
Info mode
Service mode
Actuator closing
Actuator opening
Fan motor controlled
Oil preheater on
Heat request from controllers
Ignition controlled
Valve controlled
Flame present
Fault status message
Unit of current display
Bild 2e/0807

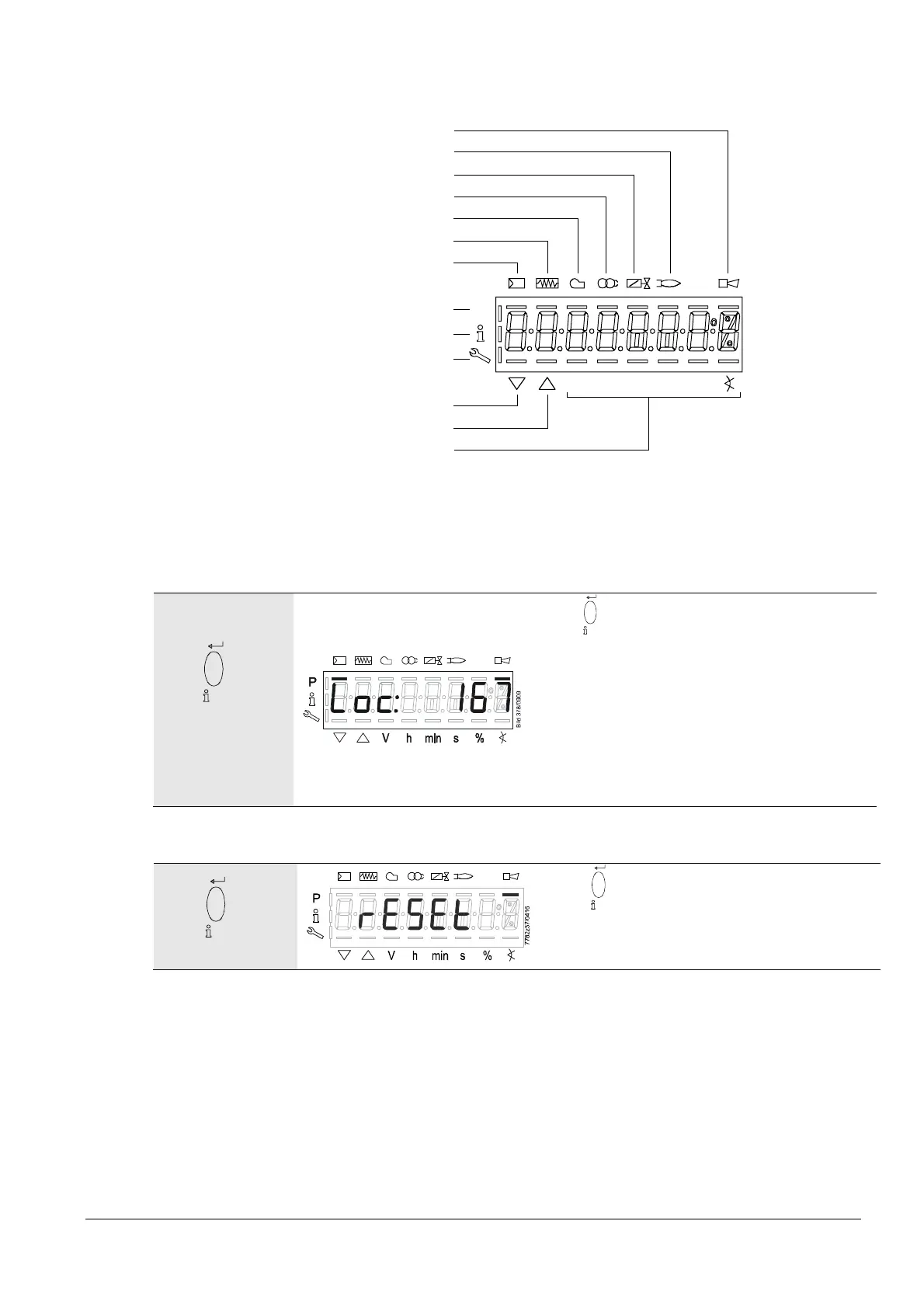

Figure 19: Meaning of display
13.3 Special functions
13.3.1 Manual lockout
/
reset
plus any other
button
Press
/
reset
together with any other button.
The LME7 switches instantly to the lockout
position, no matter what the operating position.
The display shows the fault status message.
(Refer to chapter Error code list!)
Display: Loc: 167
The reset must be carried out as follows:
/
reset
1 s
When
/
reset
is pressed for 1 second, rESEt
appears on the display.
When the button is released, the LME7 is reset.
