Siemens LME71 Series

19/116
Smart Infrastructure Basic Documentation LME7... CC1P7105enr
3 Type summary 24.07.2020

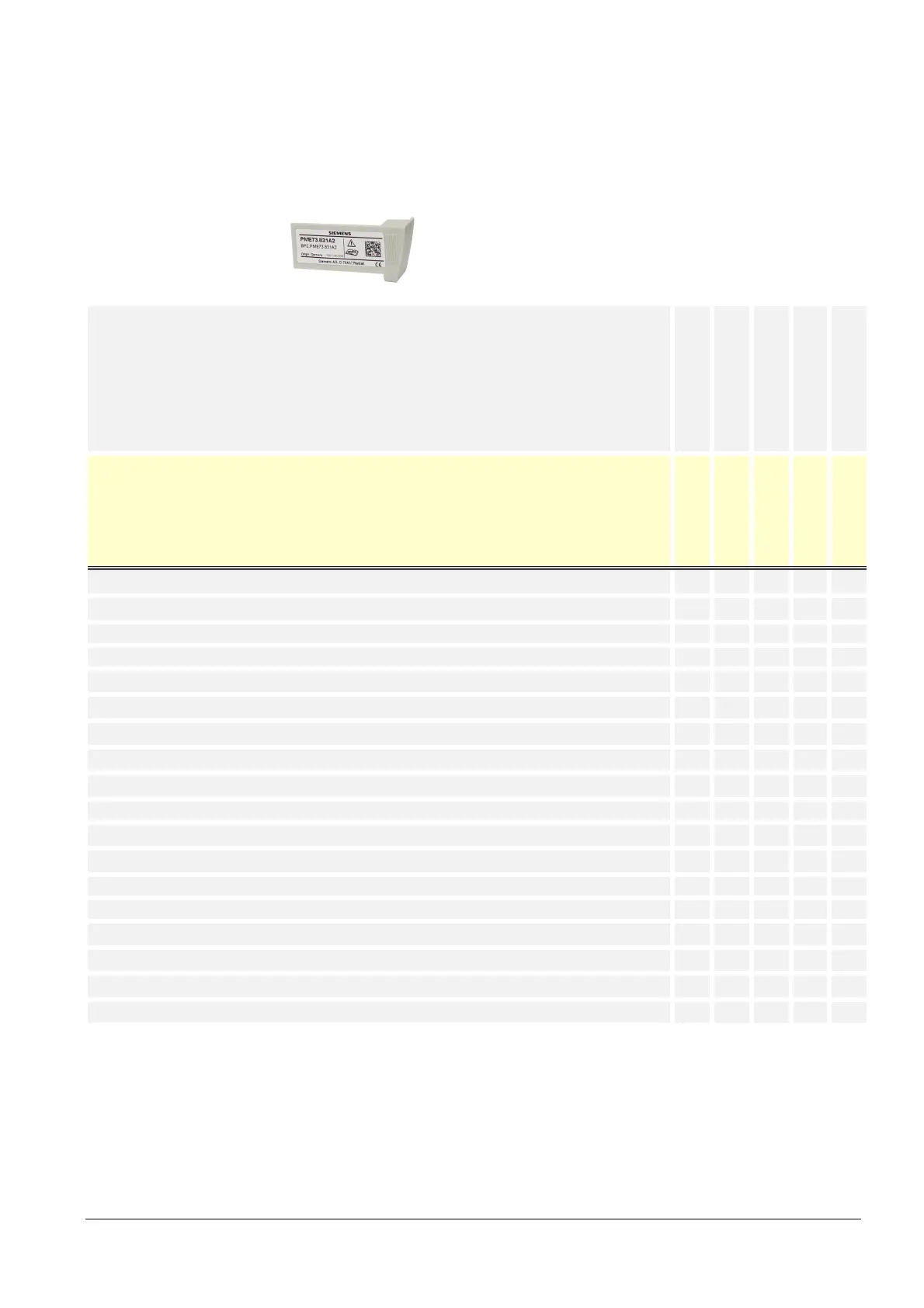

3.2 Program module
3.2.1 PME7 with mains voltage AC 120 V
PME7 for LME7, with program sequences for oil burners or gas burners.
Example:
Article no.
BPZ:PME71.111A1 BPZ:PME71.112A1 BPZ:PME71.401A1 BPZ:PME71.402A1 BPZ:PME71.901A1
Type
PME71.111A1 PME71.112A1 PME71.401A1 PME71.402A1 PME71.901A1
Mains voltage AC 120 V
● ● ● ● ●
For use with LME71.000A1
● ● ● ● ●
For use with LME72.000A1 --- --- --- --- ---
For use with LME73.000A1 --- --- --- --- ---
Gas program forced draft burner
● --- ● ● ●
Gas program atmospheric burner ---
●
--- --- ---
1-stage or 1-stage modulating
● ● ● ● ●
2-stage or 1-stage modulating --- ---
● ● ●
Pilot burner simultaneously / alternately
● ●
---
●
---
Modulating via actuator (pneumatic or mechanical fuel-air ratio control) --- --- --- --- ---
Modulating via PWM fan (pneumatic fuel-air ratio control) --- --- --- ---
●
Fan speed control / control via analog signal / 3-position step signal --- --- --- ---
●
Actuator control via analog signal or 3-position step signal for actuator with ASZ --- --- --- --- ---
3-position signal for actuator without ASZ --- --- --- --- ---
Control sequence programmable time
● ● ● ● ●
POC
● ● ● ● ●
Valve proving --- --- --- ---
●
Input valve proving ON/Off --- --- --- ---
---
