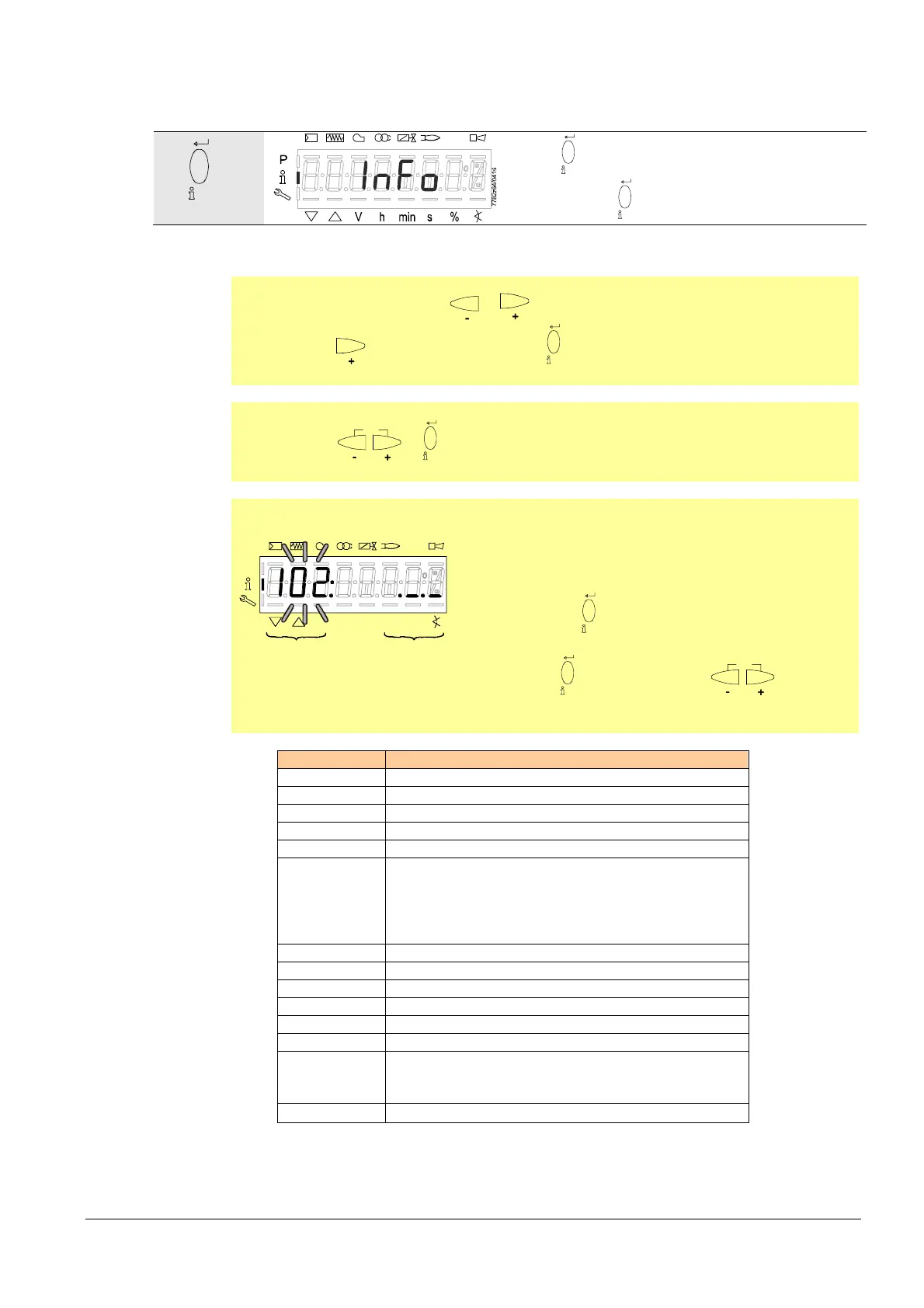

13.6 Info level
13.6.1 Display of info level
/
reset
1…3 s
Press
/
reset
until InFo appears.
When releasing
/
reset
, you are on the info level.
The info level displays information about the LME7 and operation in general.

Note!
On the info level, you can press or to display the next or the previous parameter.
In place of the button, you can also press
/
reset
for <1 second.

Note!
You can press
ESC
or
/
reset
for >8 seconds to return to the normal display.

P
Vh
min s %
Bild 27e/0807
Parameter
Parameter value
Figure 21: Info level
Note!
No change of value on the info level.
If the display shows .
_
.
_
together with the parameter,
the value may consist of more than 5 digits.
When pressing
/
reset
for >1 second and <3 seconds, the
value will be displayed.
By pressing
/
reset
for >3 seconds or
ESC
, you
return to the selection of the parameter no. (parameter
number blinks).
No. Parameter
Info level
102 Identification date
103 Identification number
113 Burner identification
123 Minimum output control step
140 Mode display for the 7-segment display
1 = standard (program phase)
2 = flame 1 (QRA / ION)
3 = flame 2 (QRB / QRC)  not used
4 = active power (power value)
164 Number of startups resettable
166 Total number of startups
170.00 Switching cycles relay K12
170.01 Switching cycles relay K11
170.02 Switching cycles relay K2
170.03 Switching cycles relay K1
171 Signaling of “Switching cycle exceeded” for one of
the relay contact counters (parameters 170.00 to
170.03) → not active
