15 Operation via internal LED
15.1 Description of display and buttons
nfo
+
-
A
LCD Bild 01/0908

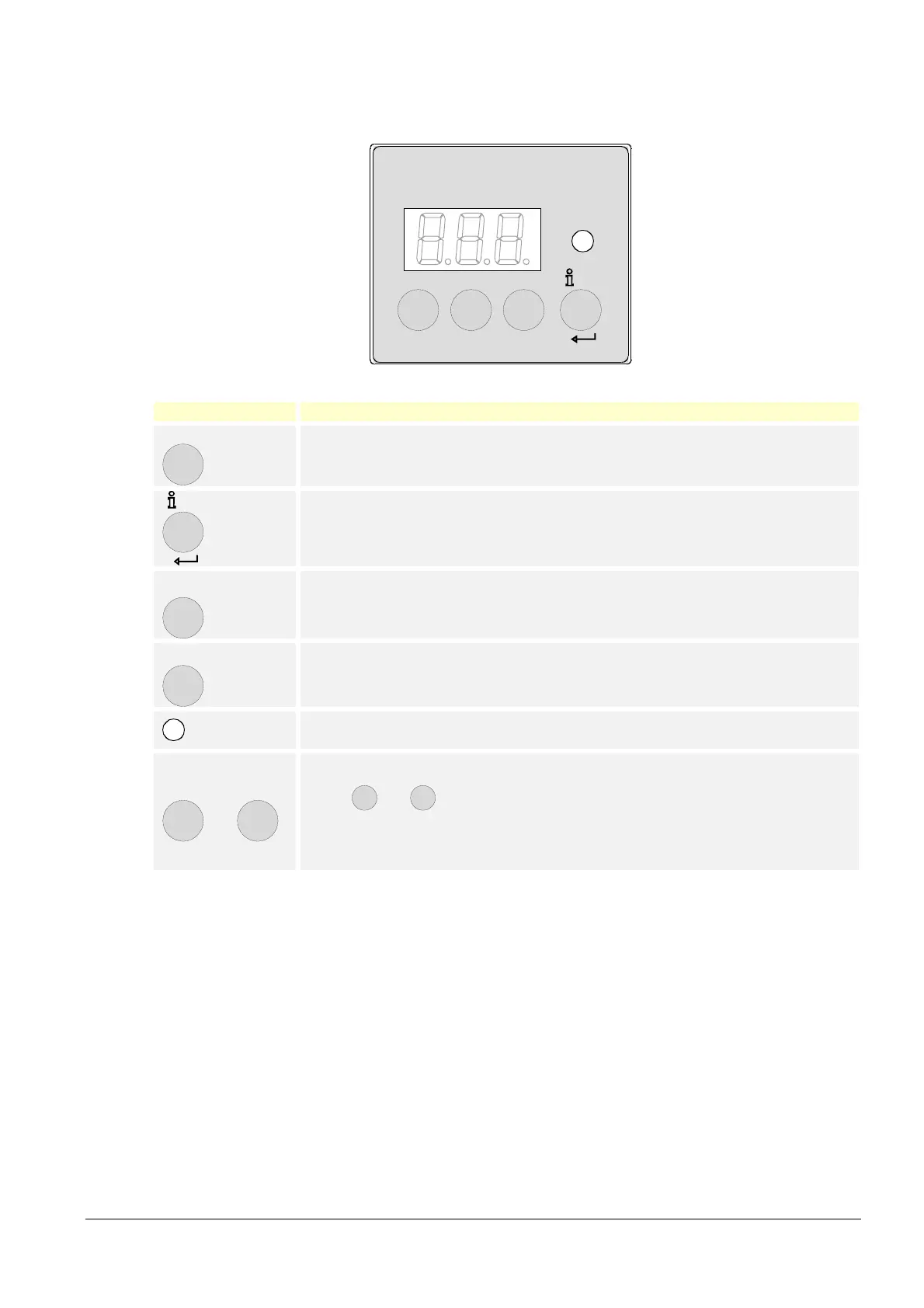

Figure 23: Description of display and buttons
Button Function
A
Button A
- Display preset output
- In lockout position: Power value to the time of fault
nfo
Info and Enter button
- Reset in the event of fault, changeover visual diagnostic of the cause of fault
(see chapter Diagnostics of cause of fault )
-
- button
- Display flame signal current 2 or phases display
- In lockout position: MMI phase to the time of fault
+
+ button
- Display flame signal current 1 or phases display
- In lockout position: MMI phase to the time of fault
3 multicolor signal lamp
- See chapter Blink code table
-
and
+
+ and - button: Escape function
(press
-
and
+
simultaneously)
- No adoption of value
- One menu level up
- Keep depressed for >1 second for backup / restore function
