13 Operation via AZL2 24.07.2020
13.9.3 Parameters with index, with or without direct display
13.9.3.1. Example of parameter 701: Actual error on the service level
See chapter Error code list!
P
V
h
mi n s
%

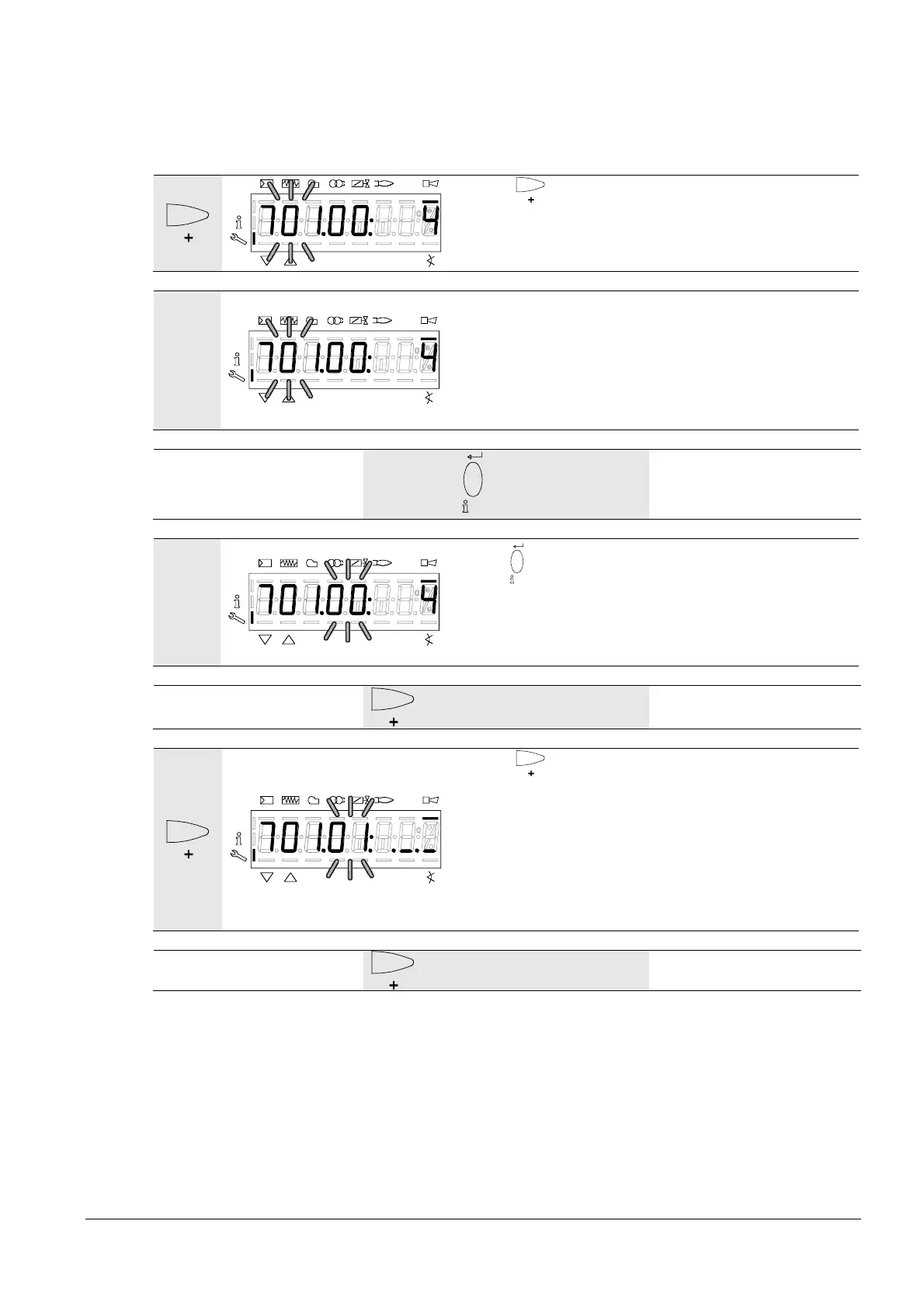

Bild 204/1008
Press
to select parameter 701.
Display: Parameter 701. blinks, index 00: and error 4 do
not.
P
V
h
mi n s
%
Bild 204/1008
On the left, the current error 701. appears blinking, index
00: does not blink.
On the right, error code 4 is displayed.
Example:
Parameter 701., index 00:, error code 4.
/
reset
1…3 s
P
Vhmin
s
%
Bild 205/1008
Press
/
reset
for 1…3 seconds to show index 00: for the
error code blinking.
Display: Parameter 701. does not blink, index 00: blinks,
error 4 does not blink.
To the next index
P
V
h
mi n s
%
Bild 206/1008
Press
to select the index.
.00 = error code
.01 = startup meter reading
.02 = MMI phase to the time of fault
.03 = power value to the time of fault
Example
Parameter 701., index 01:, startup meter reading._._
To the next index
