13.4.1.3. Display of operating position
P
Vh
mi n
s%
Bild 14/0707

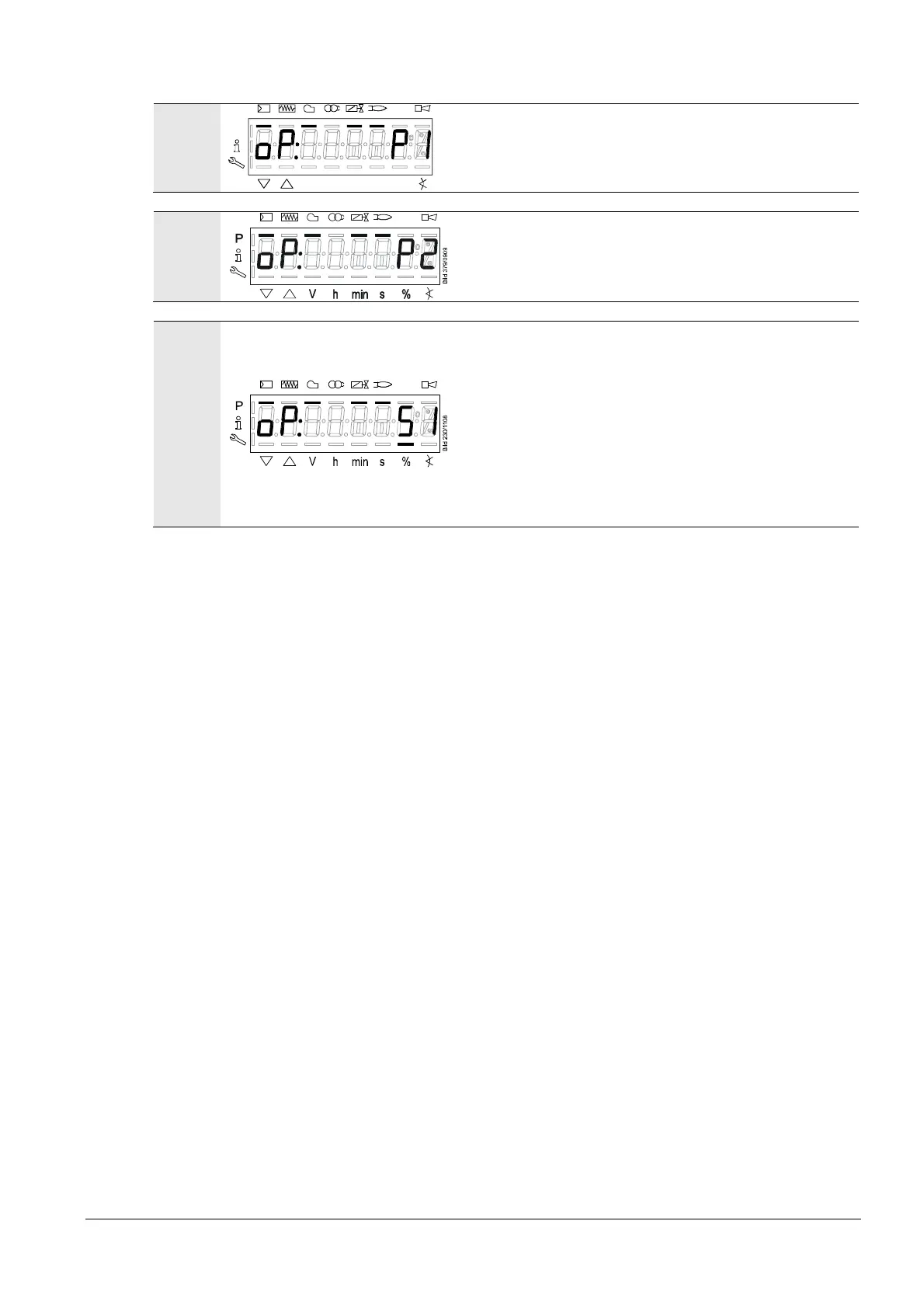

Display oP: P1 means stage 1.
Display after oP is unit-specific.
Display oP: P2 means stage 2.
Display after oP is unit-specific.
Display oP: means modulating operation.
Display after oP: is unit-specific.
Display shows the relative value of the actual position of
actuator (51).
Position of actuator 0° = 0  value of potentiometer = 0%
display.
Position of actuator high-fire >0° = >0  <1000  value of
potentiometer = 100% display.
