Siemens MOBILETT Plus HP Service Manual

Battery circuit and power conversion unit 7 - 3
Siemens AG SPR8-220.061.03 Page 3 of 8 MOBILETT Plus HP
Medical Solutions Rev. 03 09.03 CS PS 24
Pull out capacitor bank, M11 7
• Remove the cover with the cassette compartment.
• Remove the warning sign placed in front of the batteries.
• Remove the cable ties (pos. 1 / Fig. 5)
• Remove the two screws (pos. 1 / Fig. 6)
• Remove the capacitor bank, M11 (pos. 2 / Fig. 6).

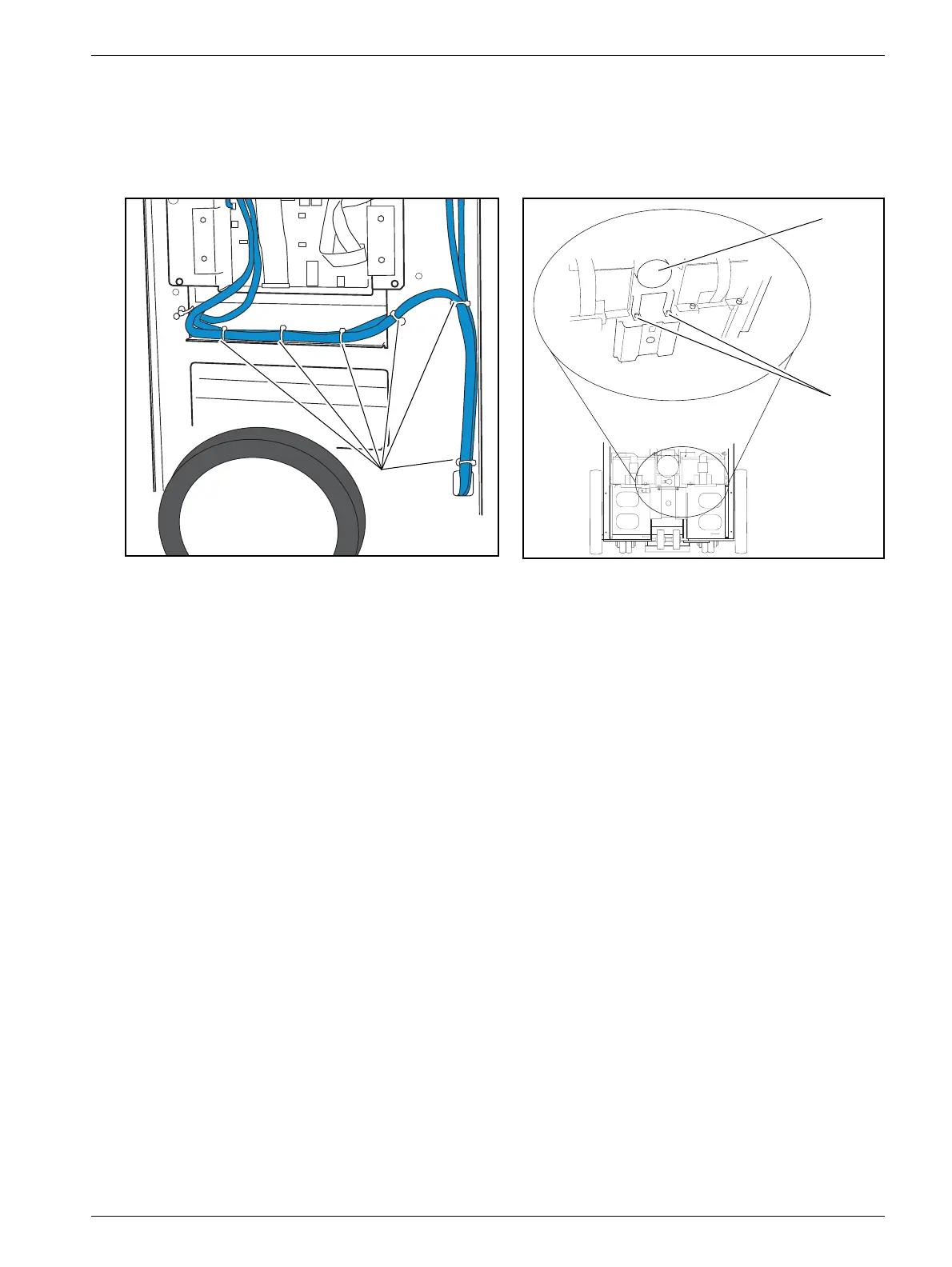

Fig. 5 Fig. 6
MOB00630
1
2
1
