MOBILETT Plus HP
SPR8-220.061.03
P
age 6 of 28
Siemens A
G
Re
v
. 03
09.03
CS PS 24
Medical Solutions
10 - 6
Mechanical systems
Movement of the collimator
•
Remove the collimator cover.
•
Adjust the collimator movement re
sistance with the screw (1) (Fig. 9).
•
Reattach all covers.

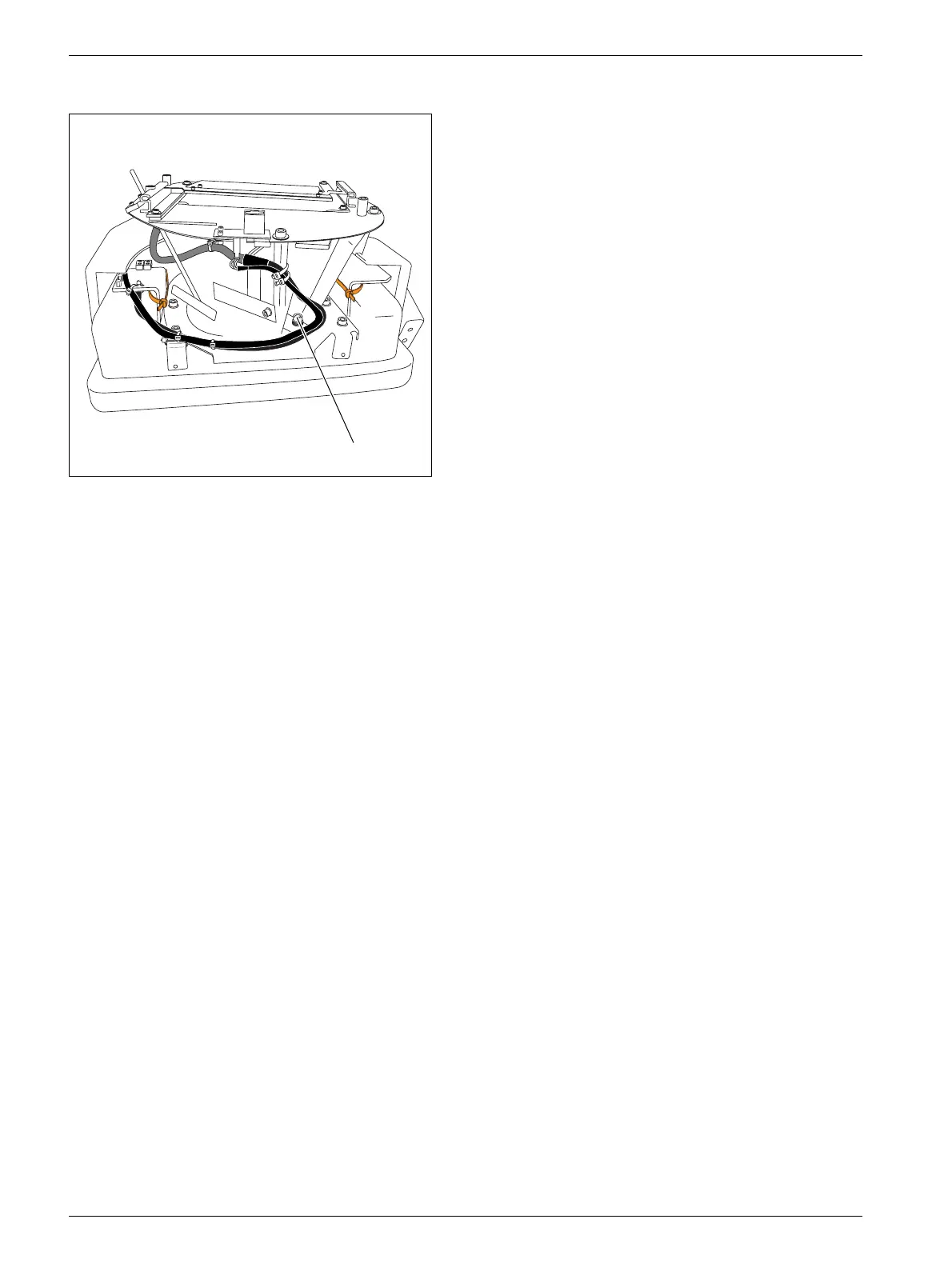

Fig. 9
MOB00650
1
89
91
Table of Contents
Table of Contents
3
Training of Customer Support Engineers
7
Text Emphasis
7
Symbols
7
Required Documents
8
Required Tools, Measurement and Auxiliary Devices
8
Lubricants
8
Safety Information and Protective Measures
9
Protective Measures Batteries B10 and Capacitors in Power Conversion Unit M10 and M11
10
Monitoring the Kv and Ma Values
32
Entering Service Mode
39
Selecting Test Programs with the Kv+/- Buttons
39
Error Messages in Service Mode
39
List of Test Programs Available in Service Mode
40
P01 - Filament Test
40
P02 - Rotation Test
40
P03 - Capacitor Bank and Charging Test
41
P04 - Display, LED and Buzzer Test
42
P06 - Capacitor Formation
42
P07 - Query Filament Values from the Battery-Backed RAM
43
P08 - Display the Message History
43
P09 - Clear the Message History
44
P10 - Fast Adaptation
44
P11 - Backup Battery Test
45
P14 - Number of Kv Steps and Upper Kv Limit
45
P15 - Upper Mas Limit
46
P16 - Show the Exposure Counter
46
Tests and Measurements in the High Voltage Circuit
47
Malfunction in the Inverter or Single Tank
48
Pull out Power Conversion Unit M10
59
Exchange of Fuse U301
62
Exchange of Capacitors of M10
62
Exchange of Voltage Divider Board D310
62
Exchange of Fuse U11
63
Exchange of Capacitor Bank M11
63
Exchange of Capacitors of M11
63
Exchange of Booster Assembly D301
64
Replacement of Batteries B10
64
Replacement of Battery Charger Board D201
65
Replacement of Battery Indicator D210
66
Replacing the Backup Battery
67
Replacement of Mains Cable/Cable Winder
69
Replacement of Main Switch Element
73
Replacing the Collimator Lamp
75
Checking the Light Intensity
76
Light Field Relative to the X-Ray Field
77
Replacing the Collimator
78
Checking the Light Intensity
81
Light Field Relative to the X-Ray Field
82
Adjusting the Arm System
85
Parallelism
85
Counterbalance
87
Adjusting the Friction Linings
88
Replacing the Spring Pack
91
Adjustment and Replacement of the Turn Plate
95
Replacement of the Single Tank
97
Replacement of the Support Arm Cable Harness
101
Adjustment of the Hand/Parking Brake
105
Replacing the Supporting Wheels
108
Replacing the Friction Linings
109
Replacing the Horizontal Friction Lining
109
Replacing the Vertical Friction Linings
110
Adjustment of the Speed
113
Replacement of the Transmission Belt and Belt Tension Adjustment
114
Belt Replacement
114
Tension Adjustment
115
Replacing the Motor Unit
117
Repairs to the Motor Power Unit
118
Exchange of Motor Power Unit D102
118
Replacement of Fuse (4 A)
119
Recalibration of DAP Measuring System
121
Required Equipment
121
Recalibration Procedure
121
Miscellaneous Service Issues
