Electrical connections
150 NXAIR / ≤ 40 kA 110-0084.9 / 15
Remove the nuts size M8 (3) for fixing the floor plates (4), take connecting elements and floor
plates out of the panel, and store all.
Take all rubber sleeves (5) out of the floor plates.

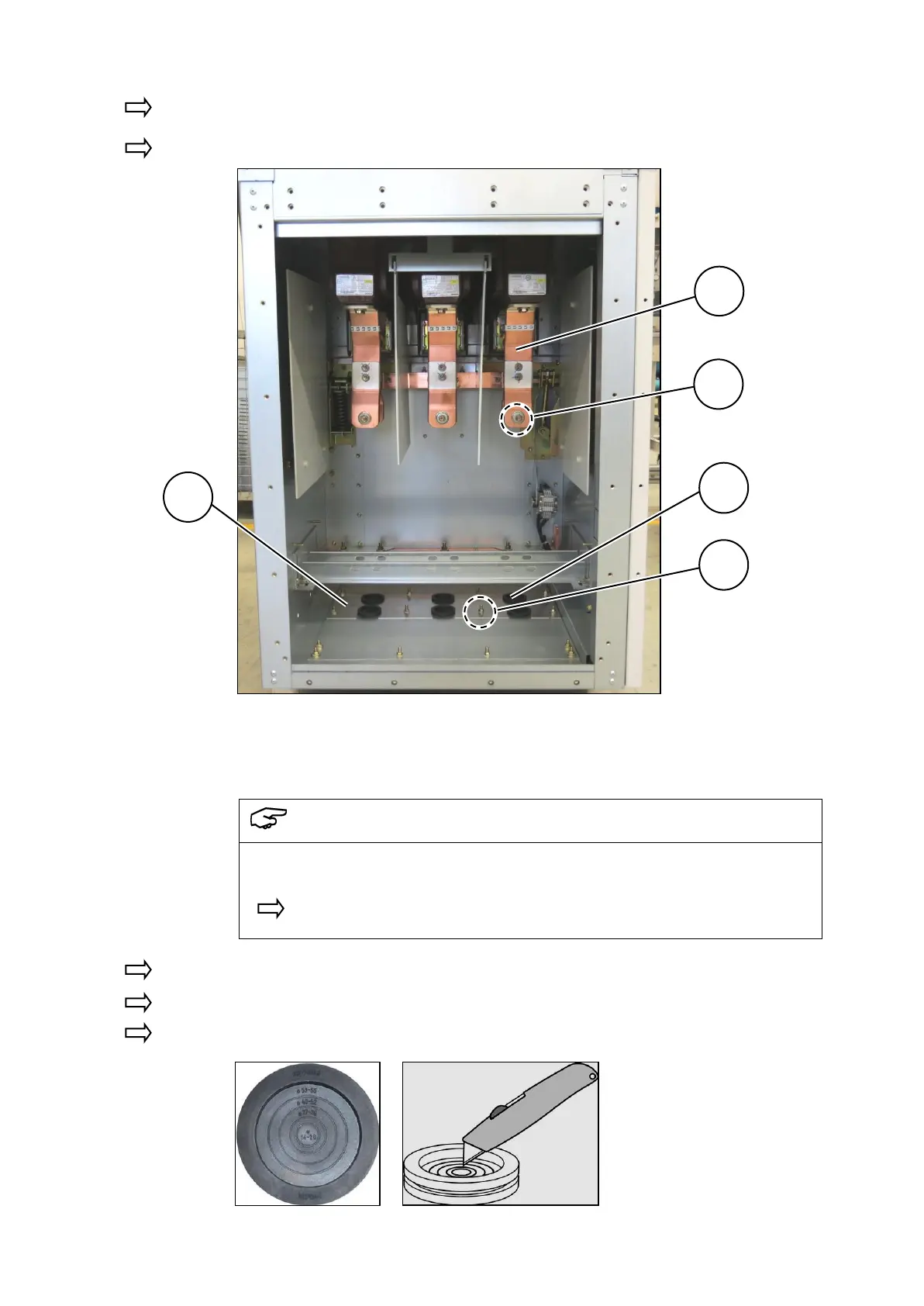

Fig. 217: Connection compartment, view from the rear side of the panel
(installation of insulating plates only for U
r
= 17.5 kV)
10.2 Cutting the rubber sleeves to size
INFORMATION
The rings in the rubber sleeves serve only as rough orientation.
Cut the opening matching with the actual cable diameter to size during
installation.
Cut an opening into the rubber sleeve that fits the diameter of the cable.
Lead the cable through the opening in the rubber sleeve.
Use one rubber sleeve per cable.
Fig. 218: Rubber sleeve for cable, for example
5
1
2
3
4
