Preparing installation
110-0084.9 / 15 NXAIR / ≤ 40 kA 25
5.14 Drilling template for additional earthquake stabilization
As support to determine the marking points of the threaded holes M12, a drilling template is available as an
optional accessory. Exchangeable elements enable quick and easy adjustment of the drilling template to the
base layout of the respective panel on site. The drilling template supports both lining up of another panel to the
left and lining up to the right.
The necessary installation and fixing material, such as threaded bolts M12x45 and suitable plain washers, is
supplied with the supplementary equipment of the respective panel.
Incorrect alignment
To avoid misdrilling and incorrect alignment of the panels:
Align the drilling template only on a panel that is already exactly aligned and
fixed.
Do not align the drilling template via another drilling template or other
markings.
For information about the assembly of the drilling template for the respective
panel and the drillings to the performed, see information drawings NXAIR,
order number 110-2300.9.

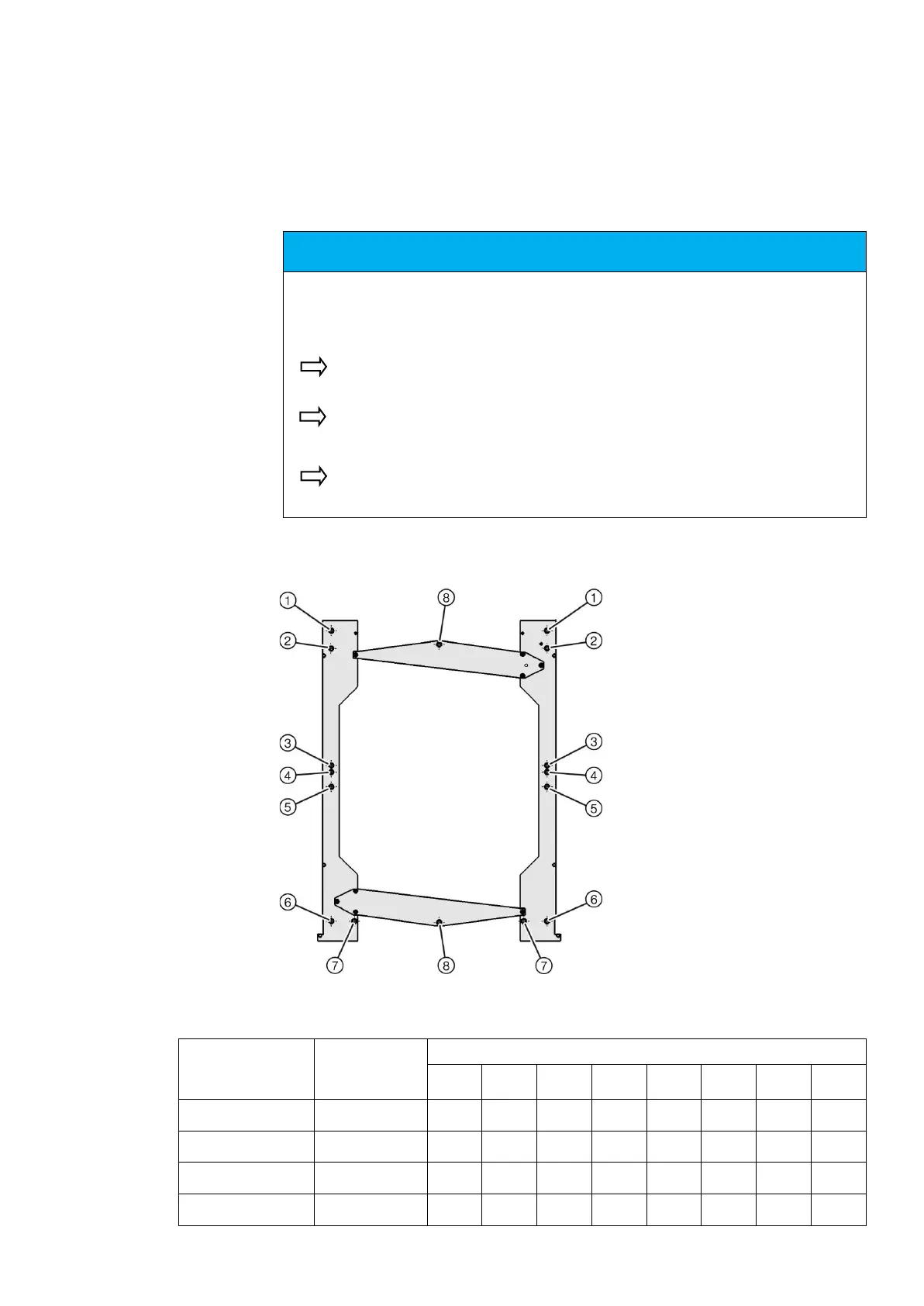

Overview of drilling template
Fig. 17: Drilling template, arrangement for 1000 mm panel width as an example
