Unloading and erection
110-0084.9 / 15 NXAIR / ≤ 40 kA 41
6.11 Lifting by means of chains and crane hooks
Transports falling down or over
Non-observance of the weight loads of the panels can endanger people or damage
the transport units while unloading.
Ensure that the lifting gear used meets the requirements of the weight loads
of the transport units from the table on page 30 as a minimum.
Attach crane hooks directly at the craning angle.
Observe the installation height of the crane cross-member consequently.
Lift transport units with end wall only by means of crane rods.
Chains and crane hooks may cause damages due to impacts on the transport unit.
Secure the chains, hooks and affected areas of the transport unit with pads.
Mounting the crane cross-member
According to the guide of the crane cross-member, attach the crane hooks at the side
of the panel or at the front and rear to the craning angles.

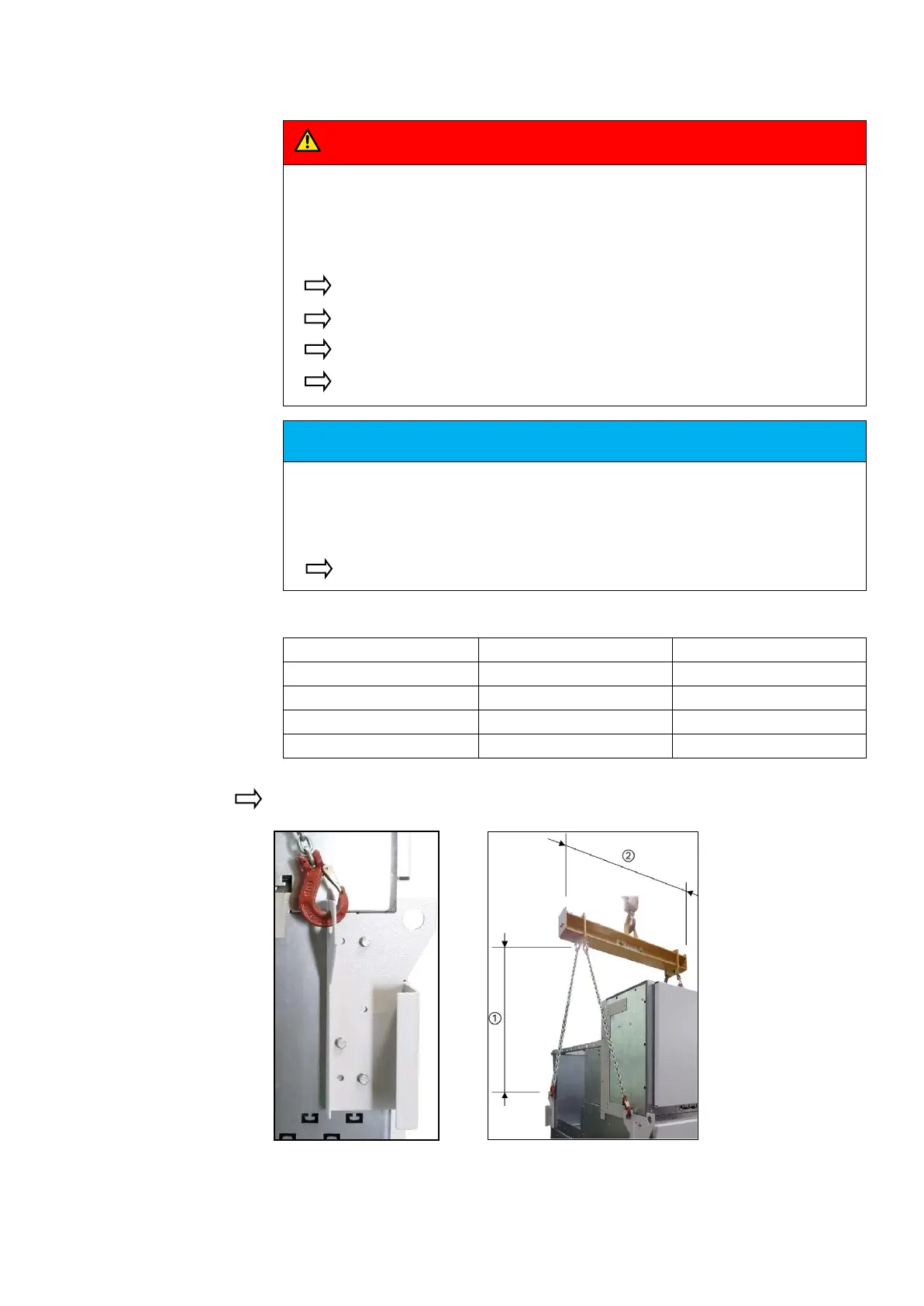

Fig. 40: Transport unit suspended from a crane cross-member
The panel is prepared for craning with chains and crane hooks.
