Unloading and erection
44 NXAIR / ≤ 40 kA 110-0084.9 / 15

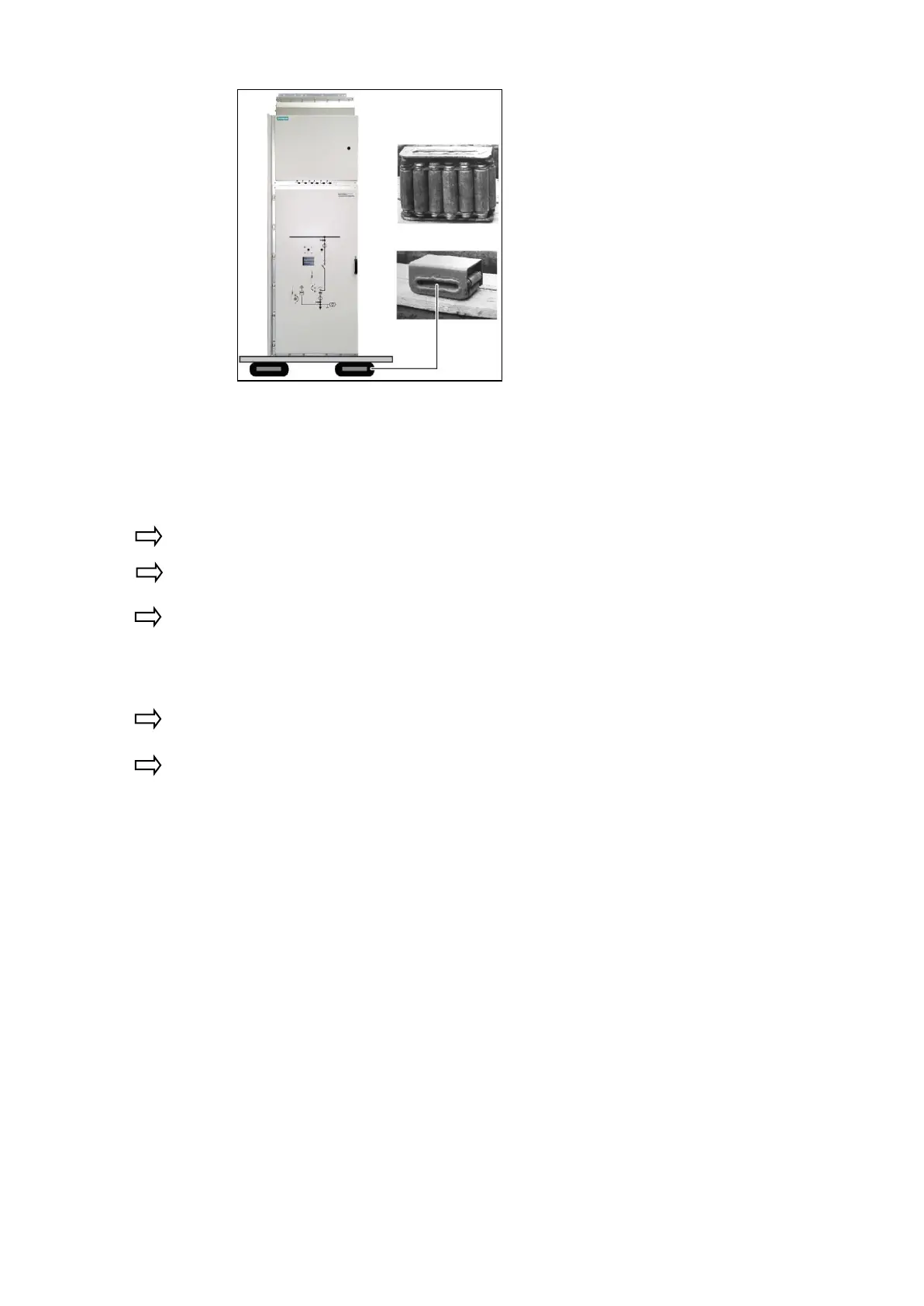

Fig. 42: Transport unit placed on roller pads
The panel is placed on the floor at the place of installation.
Hydraulic lifter:
Since the hydraulic lifter consists of two parts, it is necessary for two persons to operate it.
Before transporting the panel, the platforms of the hydraulic lifter should be lowered to the
floor until the hydraulic lifter is standing vertically.
Push the platform of the hydraulic lifter under the front and rear sides of the switchgear panel.
Ensure that the transportation platform is placed on the underside of switchgear frame; it must
not be placed on the underside of the high-voltage door. The centers of the platform must be
beneath the center of gravity of the panel.
Place the securing straps in position and tighten them. The securing strap, which has to be
fastened correctly on both sides, is an additional absolute necessity.
Move the hydraulic lifter with the panel slowly and carefully.
