Siemens PCS 7 - Maintenance Station Single Station System

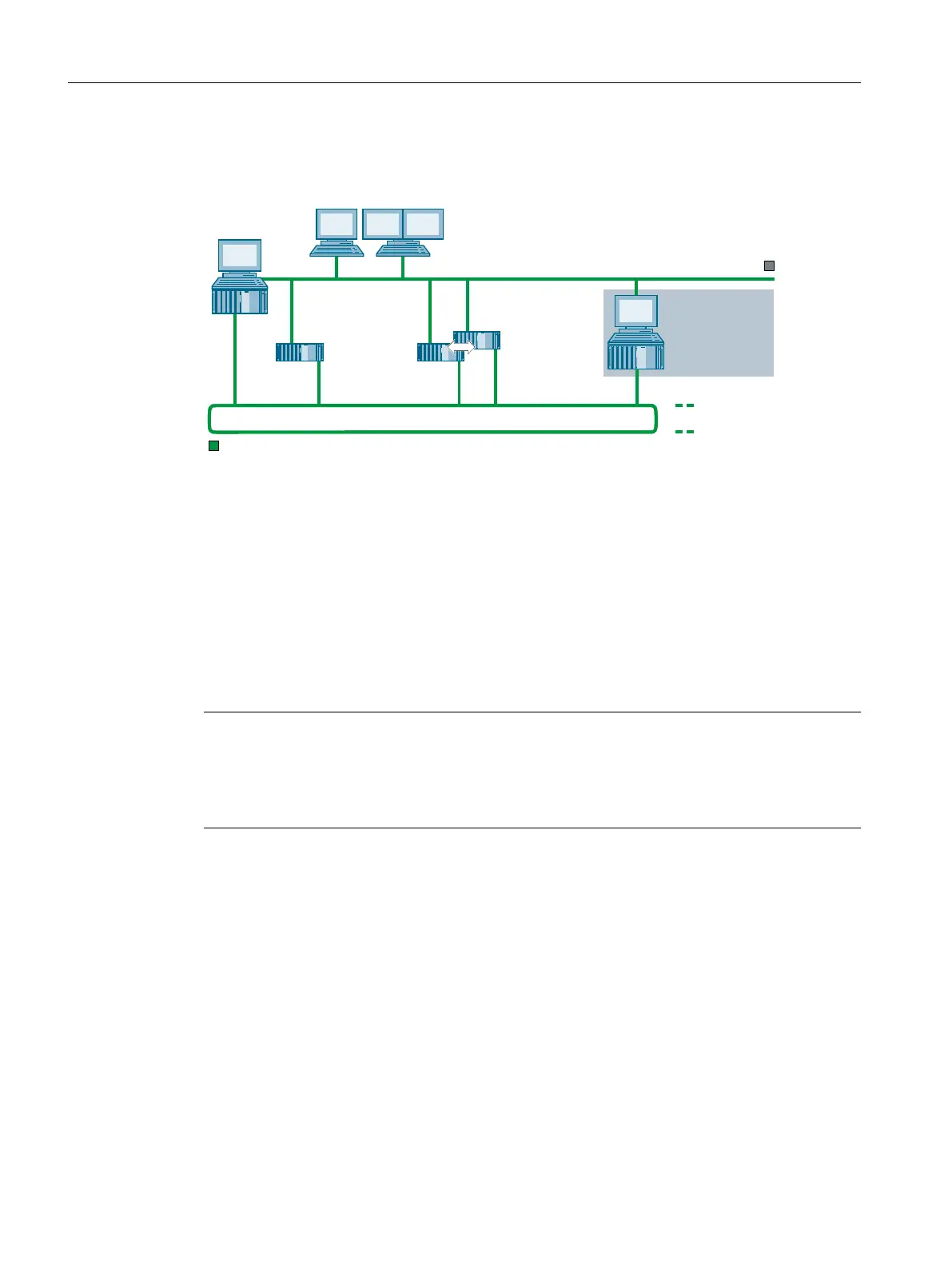

Example configuration
(QJLQHHULQJ
VWDWLRQ
26FOLHQWV
26VHUYHU
5HGXQGDQW26
VHUYHUV
5RXWH&RQWURO
VLQJOHVWDWLRQ
V\VWHP
3ODQWEXV,QGXVWULDO(WKHUQHW
7HUPLQDOEXV,QGXVWULDO(WKHUQHW
3.7.4 Maintenance station single station system
Overview
The Maintenance Station is used for the diagnostics and asset management of a PCS 7
plant.
The Maintenance Station as a single-station system consists of a PC station with engineering
station, OS single-station system and Maintenance Station.
Note
Dedicated Maintenance Station on the redundant, fault-tolerant plant bus
If you want to connect a dedicated Maintenance Station using standard network adapters on
the redundant, fault-tolerant plant bus, read the information about configuration provided in
the documentation Process Control System PCS 7; Fault-tolerant Process Control Systems .
Additional information
● Section "Maintenance Station multiple-station system (Page 25)"
● Section "OS single-station system (Page 29)"
● Section "Combination of Engineering Station and Operator Station on a Single PC
(Page 21)"
● Appendix "Approved Configurations (Page 142)"
● Process Control System PCS 7; Maintenance Station Manual
● Manual Process Control System PCS 7; SIMATIC PCS 7 BOX
