Product properties
3.26 C-PLUG (configuration plug)
SCALANCE X-200
118 Operating Instructions, 12/2011, A5E00349864-19
To insert the C-PLUG, remove the screw cover. The C-PLUG is inserted in the receptacle.
The screw cover must then be closed correctly.
NOTICE
The C-PLUG may only be inserted or removed when the power is off!
Removing the C-PLUG
It is only necessary to remove the C-PLUG if the IE Switch X-200 develops a fault.
The C-PLUG can be removed from the slot using flat pliers, tweezers, or a small screwdriver.
If a C-PLUG has been taken from a device, when the device is restarted, an error message
is output in Web Based Management and in the Command Line Interface.
In this case, you will need to set the device to operation without C-PLUG. For further
information, refer to the section "System C-PLUG WBM menu".

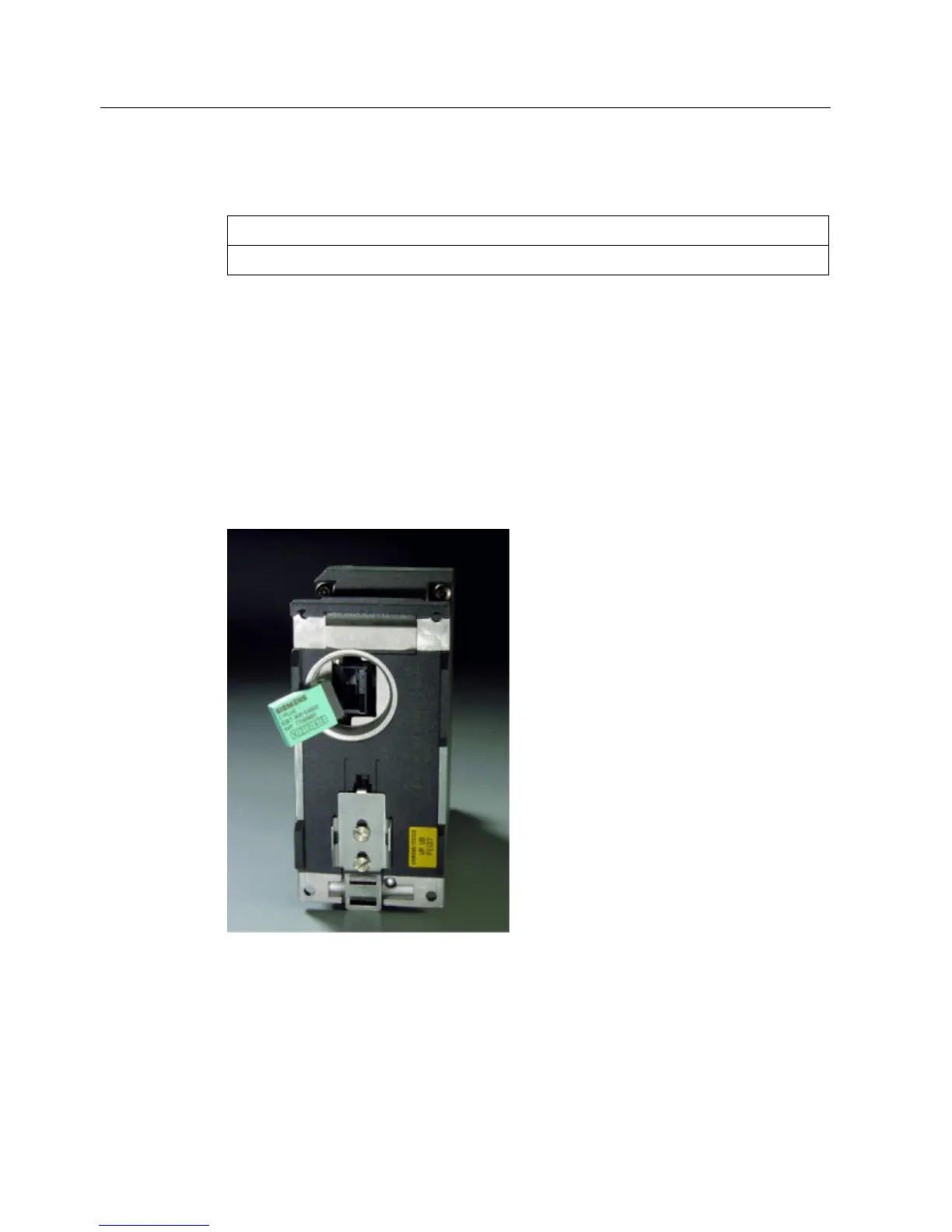

Figure 3-44 Removing the C-PLUG from the receptacle
