Configuration / diagnostics using remote mechanisms
6.3 Configuration using Web Based Management (WBM) and Command Line Interface (CLI)
SCALANCE X-200
Operating Instructions, 12/2011, A5E00349864-19
183
6.3.5.13 The "X200 Fault Mask" WBM menu
Fault Mask
The settings in this dialog allow you to monitor the link status and the redundant power
supply.
The values of the settings that can be made with the button configuration are also displayed.

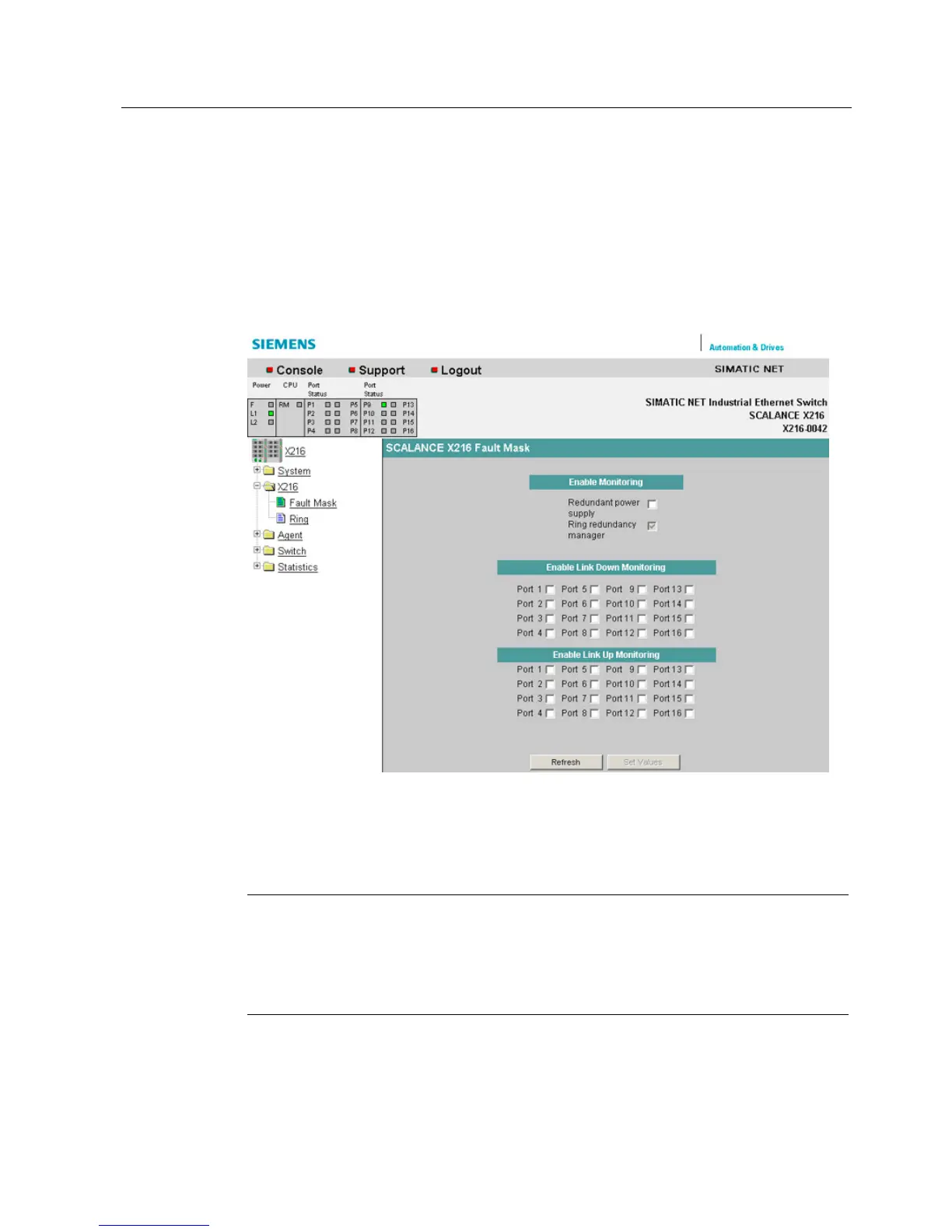

Figure 6-19 "Fault Mask" dialog
Enable Monitoring
Redundant power supply
Here, you can enable/disable monitoring of the redundant power supply.
Note
The followi
ng devices do not have a redundant power supply:
 SCALANCE X204 IRT PRO
 SCALANCE X202-2P IRT PRO
 SCALANCE X201-3P IRT PRO
