Configuration / diagnostics using remote mechanisms
6.3 Configuration using Web Based Management (WBM) and Command Line Interface (CLI)
SCALANCE X-200
182 Operating Instructions, 12/2011, A5E00349864-19
6.3.5.12 The "X200" WBM menu
Status
This page provides information on operating states such as power supply and fault status.

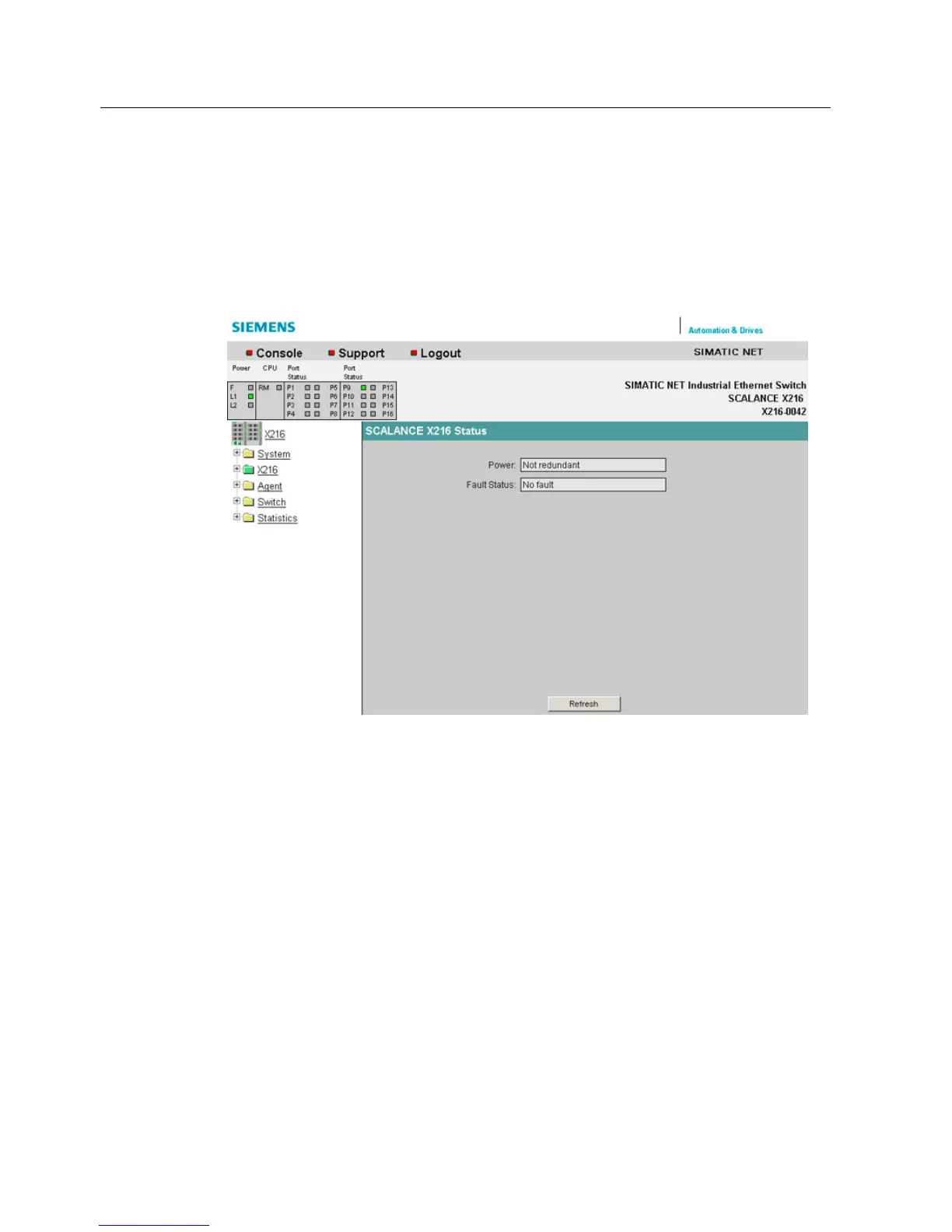

Figure 6-18 "Status" dialog
Power
This displays how the power is supplied.
Fault Status
Indicates whether faults are pending and if so which.
