Product properties
3.21 SCALANCE X202-2P IRT PRO
SCALANCE X-200
98 Operating Instructions, 12/2011, A5E00349864-19
3.21 SCALANCE X202-2P IRT PRO
3.21.1 SCALANCE X202-2P IRT PRO product characteristics
Possible attachments
The SCALANCE X202-2P IRT PRO has two RJ-45 push-pull interfaces (PROFINET-
compliant in accordance with IEC 61076-3-117) with the high degree of protection IP65/67
and two
SC RJ push-pull interfaces (PROFINET-compliant in accordance with IEC 61754-24-2) with
the high degree of protection IP65/67 for the connection of the end devices or further
network segments.

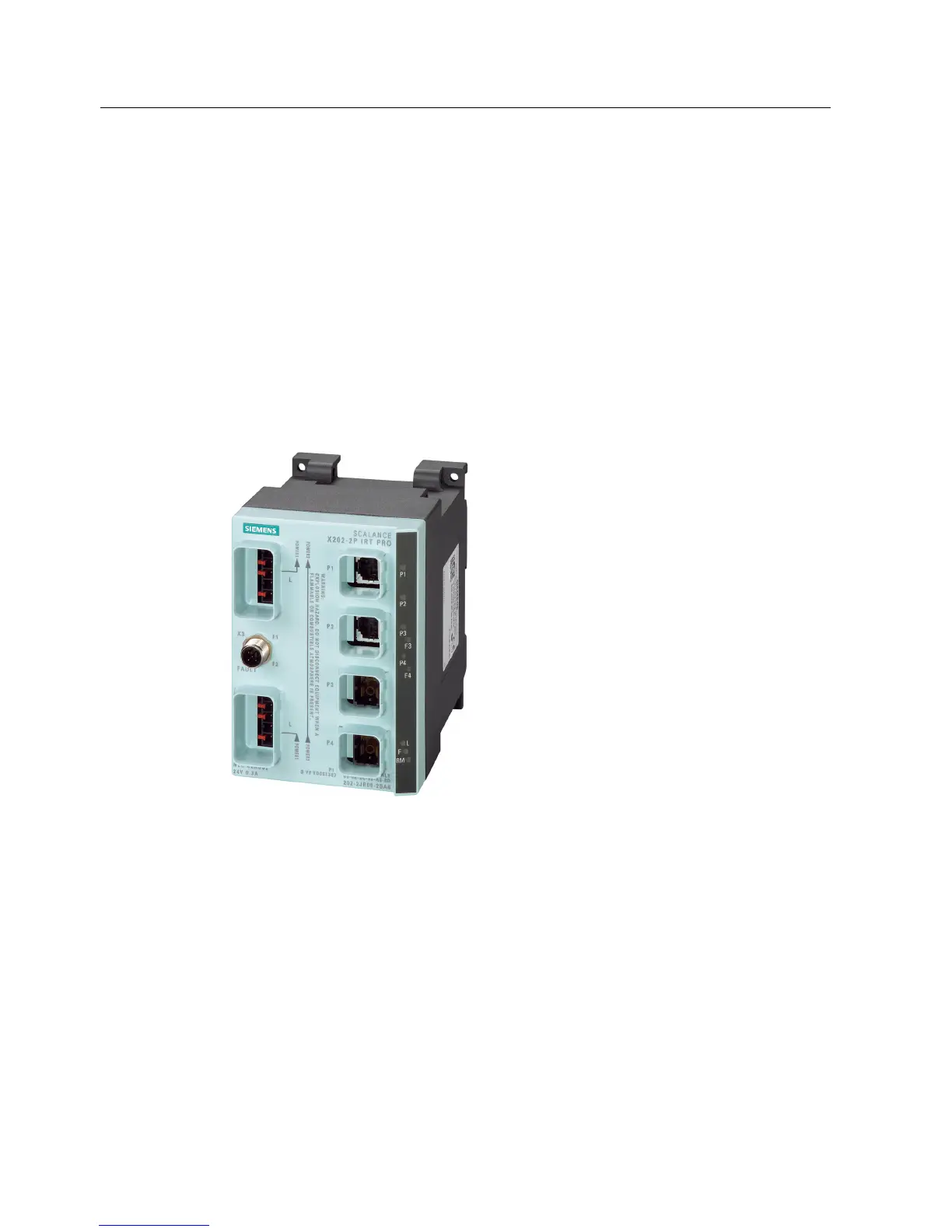

Figure 3-35 SCALANCE X202-2P IRT PRO
