Product properties
3.7 SCALANCE X216
SCALANCE X-200
44 Operating Instructions, 12/2011, A5E00349864-19
3.7 SCALANCE X216
3.7.1 SCALANCE X216 product characteristics
Possible attachments
The SCALANCE X216 has 16 RJ-45 jacks for the connection of end devices or other
network segments.

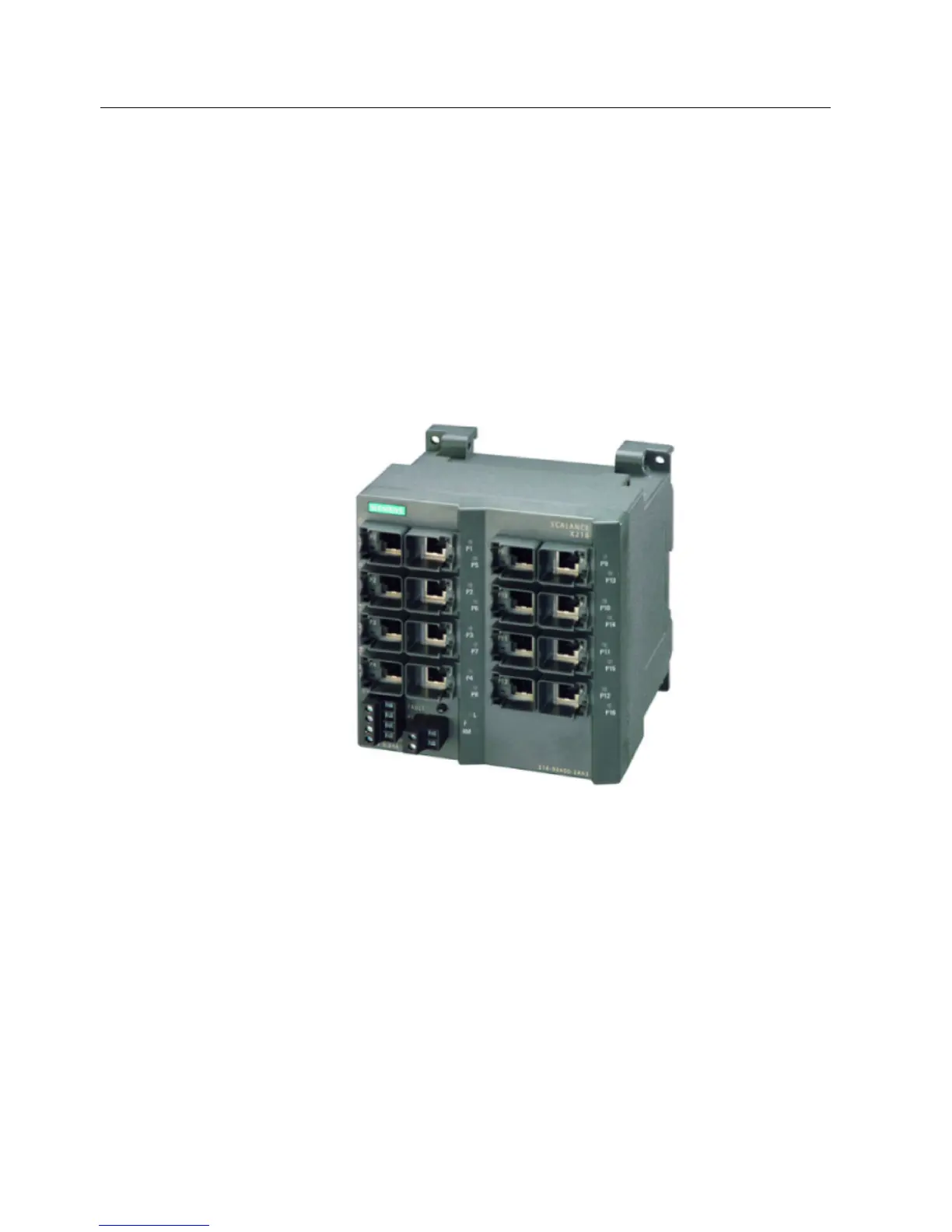

Figure 3-7 SCALANCE X216
