Configuration / diagnostics using remote mechanisms
6.1 Assignment of an IP address
SCALANCE X-200
152 Operating Instructions, 12/2011, A5E00349864-19

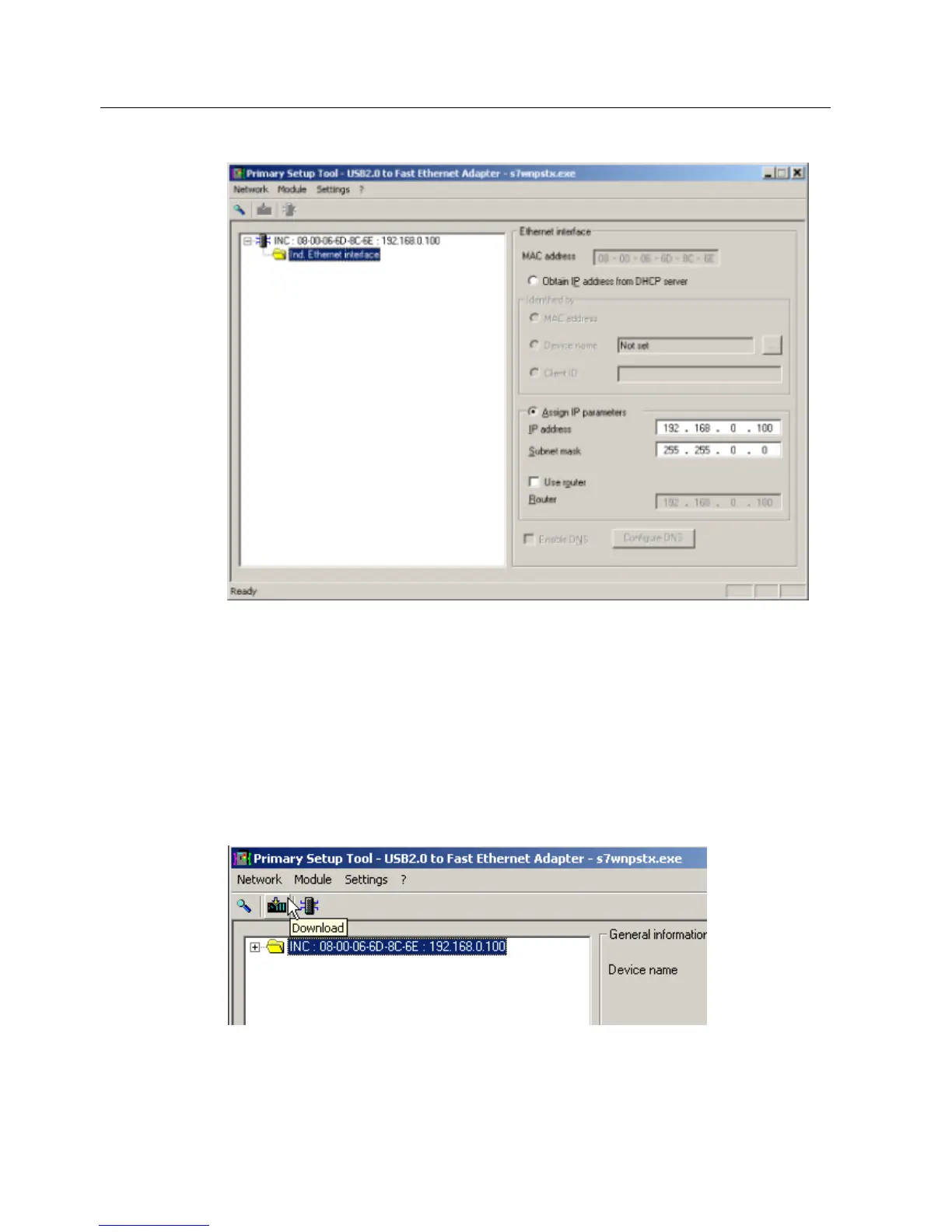

Figure 6-2 Dialog for configuring a module
Downloading configuration data to the module
Transfer the configuration data to the device by following the steps outlined below:
1. Select the module you want to configure in the left half of the program window. If an
interface is selected and the input screen for the configuration data is displayed, it is not
possible to download the configuration data.
2. Start the download with one of the steps outlined below:
– Select the Module > Download menu command.
– Click on the second button from the left in the toolbar (S7 modules with yellow arrow).
Figure 6-3 Dialog for downloading a module
