3 Configuration and commissioning of the Service Bridge
Service Bridge – Setup and Configuration
Entry ID: 109747975, V1.4, 05/2019
Siemens AG 2019 All rights reserved

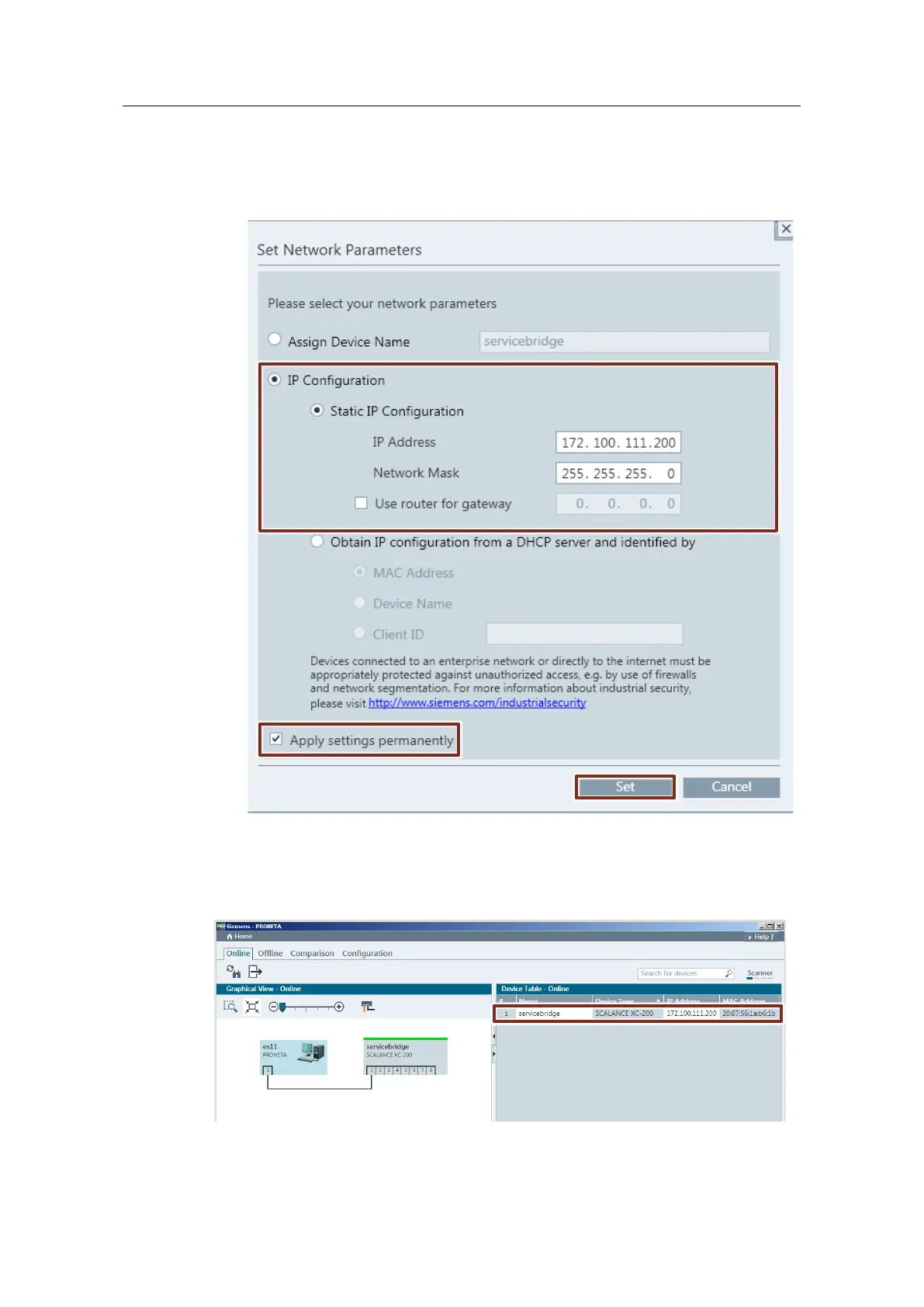

6. You can also assign the IP address and optionally a device name via the "Set
Network Parameters" dialog.
Enter the desired IP address and subnet mask. Check whether the "Apply
settings permanently" check box is enabled and then click on "Set" to assign
the network parameters.
After assigning the IP address, it is displayed by PRONETA in the tabular view.
The Web Based Management (WBM) function of the switch can now be accessed
via this IP address.
Figure 3-2
