Expanding and assigning parameters to the device
6.4 Expansion modules (M.2)
SIMATIC IPC PX-39A
70 Operating Instructions, 08/2022, A5E51699601-AA
3.

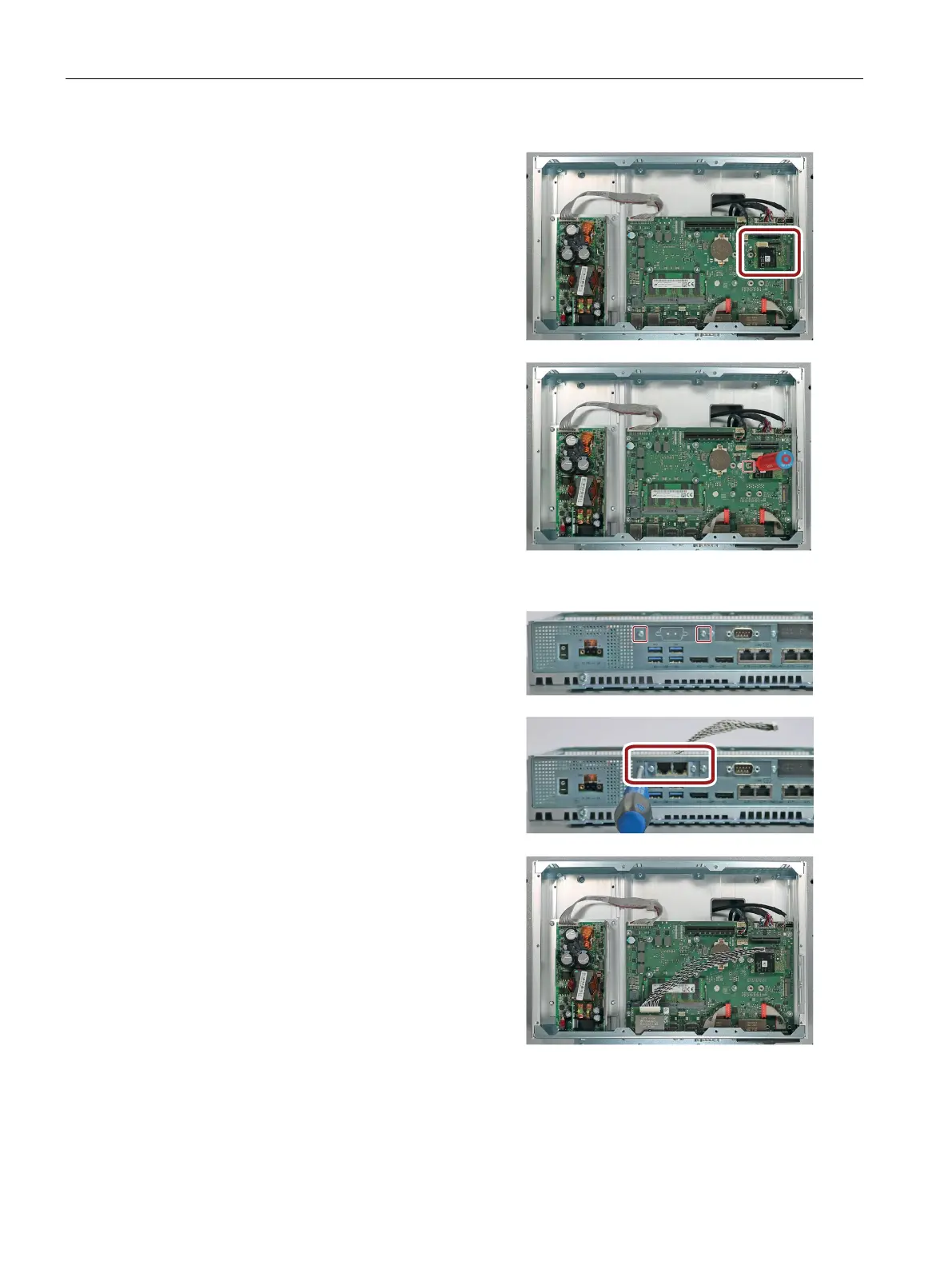

Insert the M.2 module into the relevant
slot (X100 or X101).
Take care not to touch the contacts of
t
he M.2 module when you do this.
4.
Fasten the M.2 module with the screw
that you removed in step 2.
Only use the original screws with the
spacers.
Note
: Make sure that the M.2 module is
between the head and the spacer of the
screw.
If the M.2 module includes a cable with an additional interface card that must be connected
to the enclosure opening, you must also execute the following steps:
5.
Loosen the marked screws for fixing the
blanking cover using the Torx T10 screw-
driver.
6.
Place the additional interface card from
the inside against the empty enclosure
opening and f
asten it using the screw.
7.
Connect the cable of the interface card
to the M.2 module.
