Expanding and assigning parameters to the device
6.6 Installing and removing drives
126 Operating Instructions, 01/2021, A5E43920357-AA

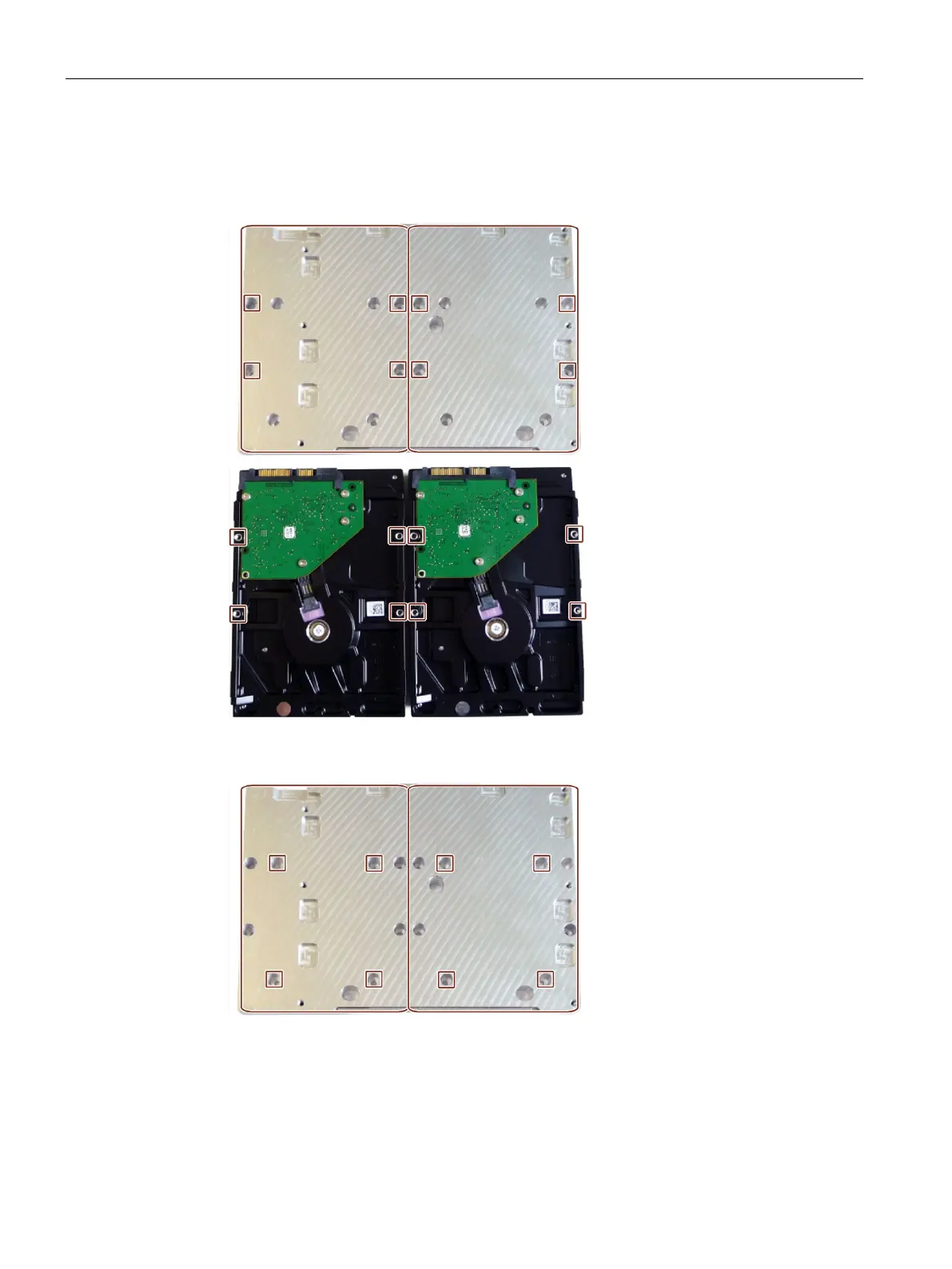

6. Mount one or more drives on the rear of the drive bay plate. Note the holes:
3.5" HDDs:
Holes on the front of the drive bay plate and on the HDDs
2.5" SSDs:
Holes on the front of the drive bay plate and on the SSDs
