Expanding and assigning parameters to the device
6.6 Installing and removing drives
Operating Instructions, 01/2021, A5E43920357-AA
127
7. Mount the design cover back onto the drive bay plate.
8. Reinsert the drive bay plate and screw the drive bay plate back on from the outside.

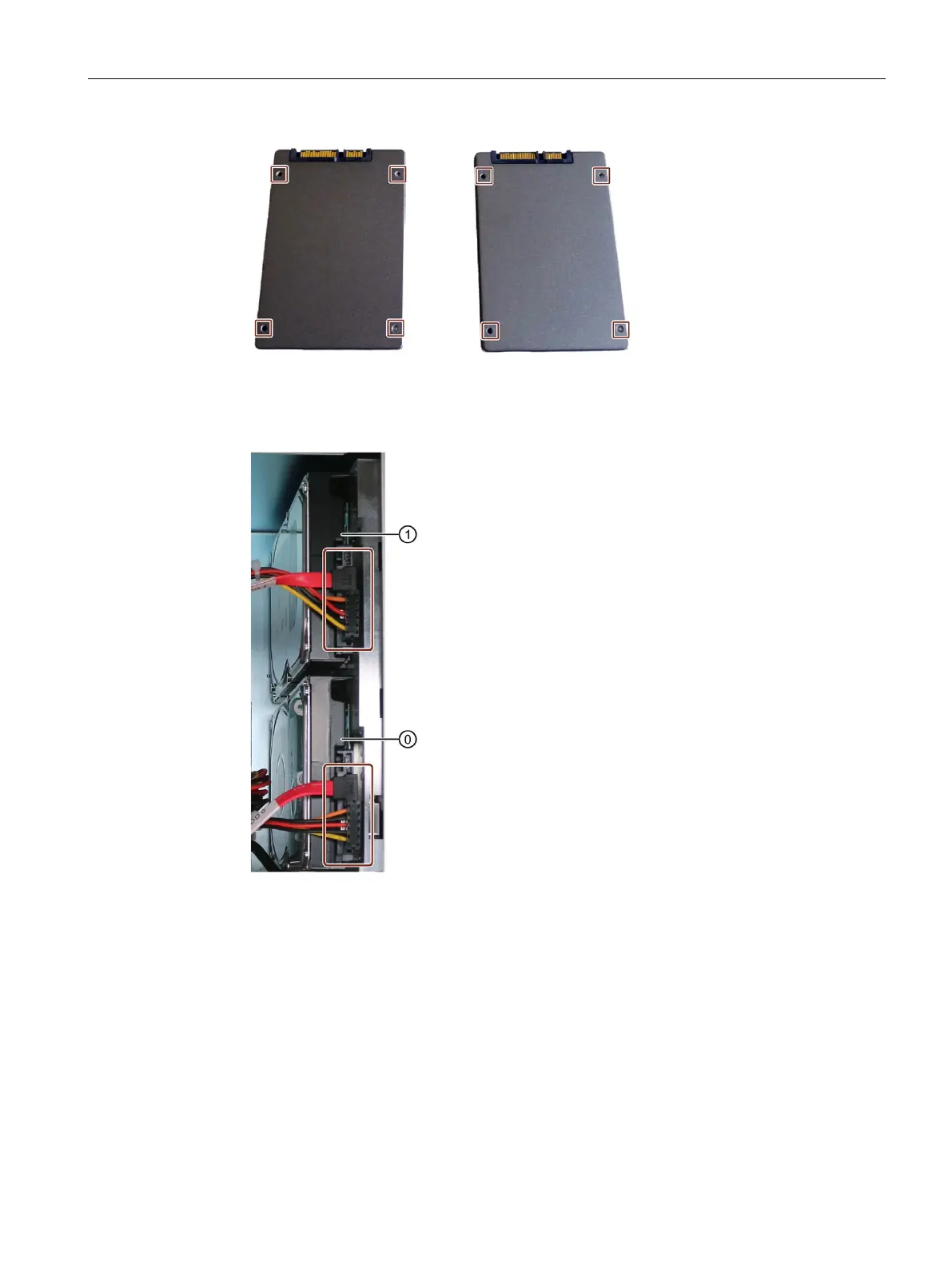

The SATA connections are at the top.
(0)
Mounting location 0
(1)
Mounting location 1
9. Connect the data cables to the desired connector on the motherboard and on the drive.
10.Close the device.
11.Connect the power supply.
